FLEX NEON - 3X6MM - 24V - 9.6W - 40K 30 METRES

Name: FLEX NEON - 3X6MM - 24V - 9.6W - 40K 30 METRES
Brand: LEDCO
SKU: LCLS24VFLX-3X6-9.6W-40K-30M
Price: 658.97 CAD
Availability: InStock

SKU: LCLS24VFLX-3X6-9.6W-40K-30M

Brand: LEDCO

Give any space that unmistakable glow of a neon tube — without the glass, the fragility or the high voltage. This is LED neon flex, the flexible, cuttable light line that people also search for as led flex neon, neon led, flexible LED neon rope light or simply led neon lights. It comes as a continuous 30-metre roll of slim 3x6mm profile, so you can run one seamless line of light along a coffered ceiling, a staircase stringer, a bar front, a bulkhead, a garage ceiling perimeter or a display window. Because it bends in one direction and cuts at marked points, it is also the go-to material for led flex sign work, lettering, logos and custom shapes — a modern replacement for old fluorescent neon tubes and their ballasts.

Every metre draws 9.6W/m and delivers 250 lumens per metre at 26 lm/W, with a 90+ CRI that keeps skin tones, wood, paint and merchandise looking true. The narrow 60º beam throws a clean, continuous line rather than visible dots, and the unit runs on safe 24V DC, so it is comfortable to install in furniture, millwork and tight coves. It is dimmable, letting you tune the mood from full brightness down to a soft evening glow. The profile measures 3x6mm with a 4mm PCB, cuts every 33.33mm, and runs up to 5m maximum length per feed. Rated IP66 and built for a 50 000+ hour lifespan, it handles damp, dusty and splash-prone areas, with an operating range of -20°C to 45°C. Certifications and compliance include ROHS, CE, EC 62471 eye safety, EN 60529, EN 62031, IEC 60598-1 and EN 55015.

Use it in basements, home theatres, kitchens, bedrooms, gyms, garages, restaurants, salons, retail displays and office reception walls — anywhere a hard line of light beats a row of fixtures. Canadian cottages, carports and covered patios benefit from the IP66 rating and the cold-weather operating range, while contractors appreciate feeding it from a standard 24V DC driver and dimming it from one control. Need the same roll in another colour temperature? See the Flex Neon 3x6mm 24V 9.6W 27K 30 metres. Want a thicker line or a low-glare version? Look at the Flex Neon 6x6mm 24V 6W 40K 30 metres or the Flex Neon anti-glare 10x10mm 24V 9.6W. Order SKU LCLS24VFLX-3X6-9.6W-40K-30M and start drawing with light.

Built to bend, built to last

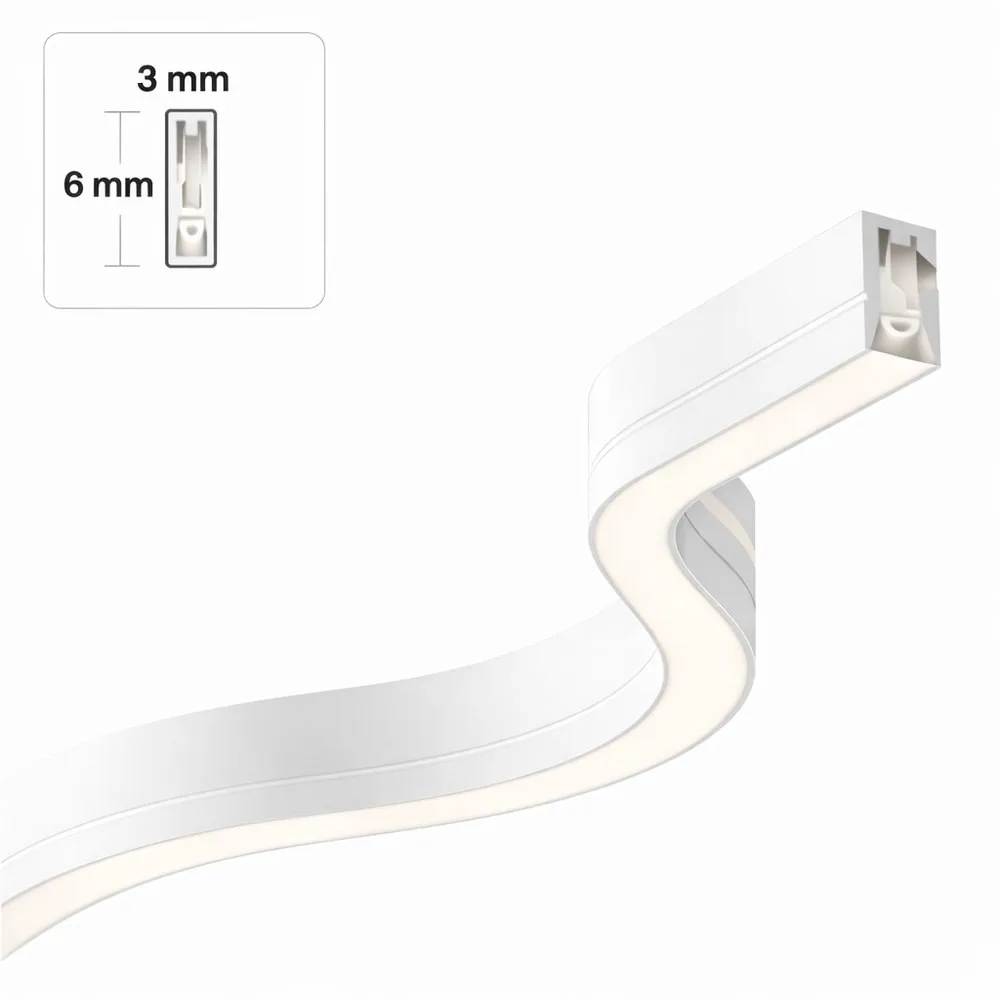

This LED neon flex is a sealed, flexible light line with a 3x6mm cross-section and a 4mm printed circuit board inside, so it stays slim enough to disappear into a shadow gap, a millwork reveal or a channel letter. It bends perpendicular to the PCB with a minimum bending diameter of 60mm, and every bend angle must stay greater than 60° to protect the circuits inside. Avoid bending directly over the circuit board, never twist the roll, and unroll it by inserting a rod through the spool rather than pulling on the strip. Cuts are made vertically on the marked cutting line — the scissor logo printed on the bottom of the PCB — every 33.33mm, which lets you size letters, coves and shelf runs precisely.

Light quality you can trust
With a 90+ CRI, colours stay honest: wood grain, paint, fabric and food all read correctly, which matters as much in a retail display as it does over a kitchen island. The 60º beam angle concentrates the output into a tight, even line with no hot spots or visible diodes, and each metre produces 250 lumens from 9.6W at an efficiency of 26 lm/W. Because it is dimmable, you can install one continuous line and still get bright task light when you need it and a low, ambient wash the rest of the time.

Technical specifications
Power: 9.6W/m ±10%
Lumens per metre: 250 LM
Efficacy: 26 LM/W
CRI: 90+
Beam angle: 60º
Voltage: 24V DC
Dimmable: Yes
Dimensions: 3x6mm
PCB width: 4mm
Max length: 5m
Cut size: 33.33mm
Minimum bending diameter: 60mm
Protection rating: IP66
Lifespan: 50 000+ hours
Operating temperature: -20°C to 45°C
Roll length: 30 metres
Compliance: ROHS, CE, EC 62471, EN 60529, EN 62031, IEC 60598-1, EN 55015
SKU: LCLS24VFLX-3X6-9.6W-40K-30M

Wiring and installation
Installation must be done by a qualified electrician, with the power disconnected — never install or splice a 24V LED neon flex while it is energized. Respect the 5m maximum run per feed point and plan your 24V DC power supply so it is not run at full load; confirm the wiring before energizing and keep the voltage within 0.5V of the rating. At 9.6W/m, this line stays under the 14.4W/m threshold, so no additional heat sink is required on an aluminum profile — a real advantage for tight coves and furniture. At splices, make the connection secure and add proper insulation, waterproofing and anti-corrosion treatment. Avoid organic solvents, acidic or alkaline glues, sharp tools, and never modify the structure or length of the strip outside the marked cut points.

Applications, family and documentation
Think cove lighting in a living room or hotel corridor, under-cabinet and toe-kick lines in a kitchen, stair nosings, backlit bathroom mirrors, gym and garage ceiling perimeters, bar fronts, storefront window outlines, channel letters and custom neon sign lettering for a café or barbershop. The 30-metre roll is ideal for large continuous runs where splices would show. Within the same family you can mix formats: the Neon Flex 9.6W/m 3x6mm and the Flex Neon 3x6mm 24V 9.6W 40K share the same profile, while the Flex Neon 6W/m 6x6mm offers a wider, softer line. The full technical PDF for this SKU is available in the Documentation tab — download it for the cutting, bending and installation diagrams before you start your layout.
