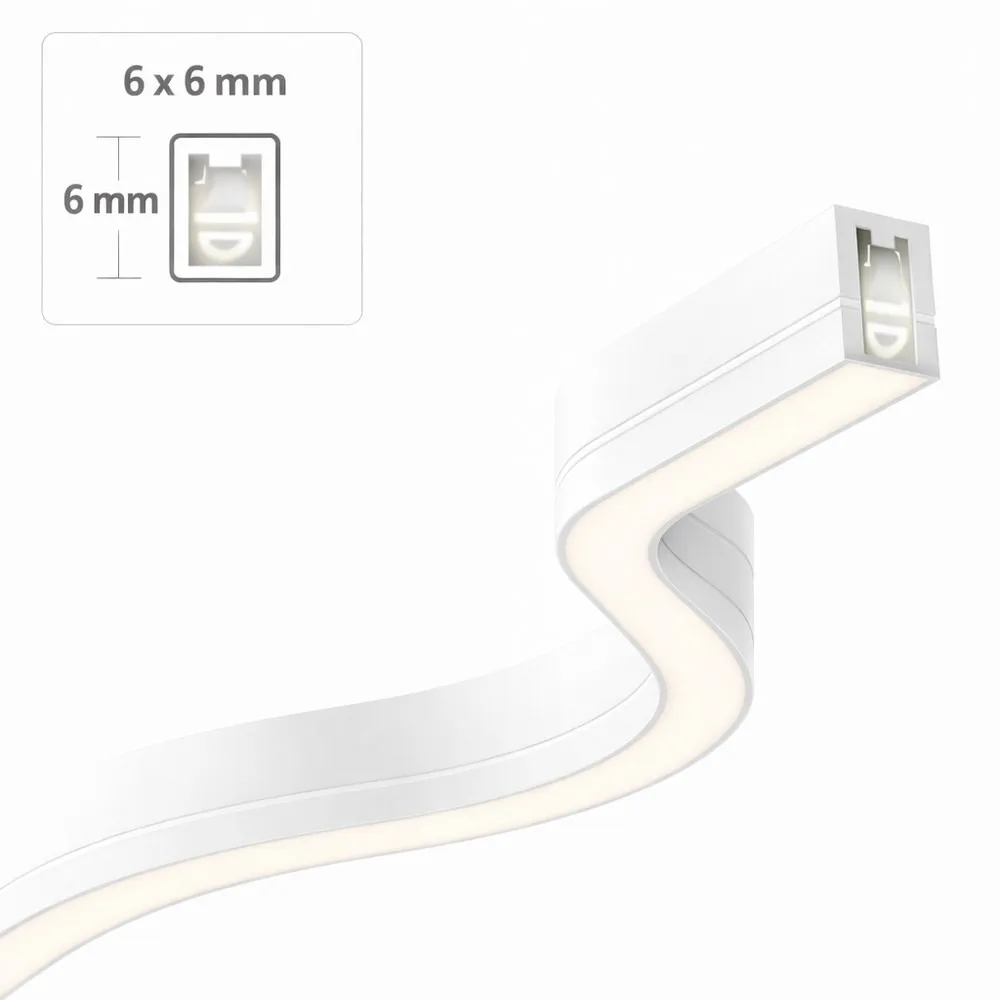

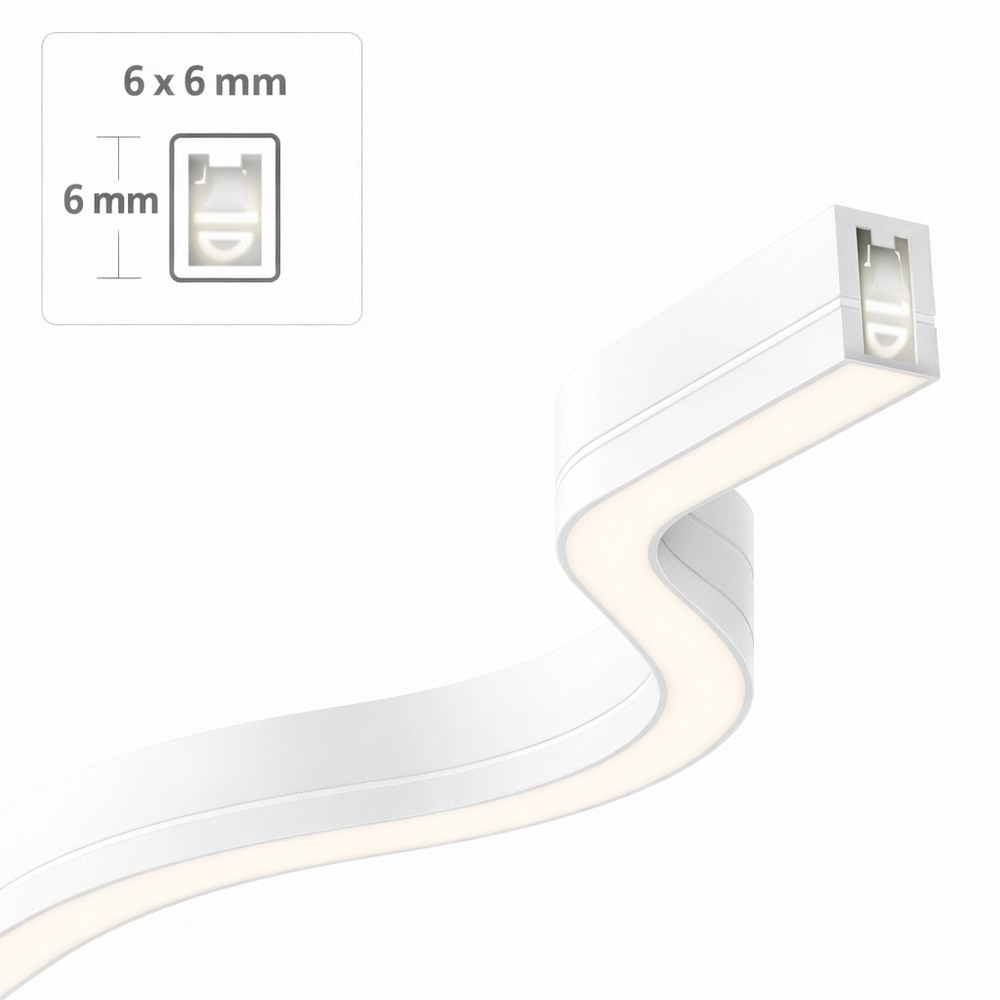

A bold 6x6 mm neon line
The square 6x6 mm profile of this flexible LED neon gives a thicker, more visible stroke than slimmer versions, perfect for storefront signs, large lettering, logos, outlines and architectural accents. It recreates the continuous glow of glass neon while running on low-voltage 24V DC, and its neutral white tone looks crisp and modern on brick, wood, concrete or painted surfaces.
Light quality and dimming
With a CRI of 90+ and SDCM under 5 colour consistency, the light stays true and uniform from one piece to the next, which matters when a sign is built from many segments. The 60° lighting angle directs the glow outward, and the neon is dimmable: pair it with a DMX, PWM, 0-10V or MLV incandescent dimming solution through a compatible 24V driver or controller to set the right mood.
Wiring and installation
This constant-voltage neon runs on 24V DC: connect red to positive and black to negative. Parallel connections are strongly recommended, and runs should stay within the recommended maximum length (5 m per feed on the spec sheet); powering from both ends doubles the maximum run, with an identical power supply at each end. Cut only at the marked cutting points, then seal the ends with end caps and glue. For mounting, neon clips fix with M3 screws, with the light-emitting side facing outward.
Applications and documentation
Use it for business signs and logos, restaurant and bar décor, salon and boutique walls, event backdrops, game rooms, home theatres, stair outlines and exterior accents. With its IP67 rating and a -20°C to 60°C operating range, it handles damp and outdoor locations. Supplied as a 30-metre reel, it is perfect for large projects or multiple signs. The technical spec sheet (PDF), with connection and installation guides, is available in the Documentation tab.
Technical specifications
Model: LCLS24VFLX-6X6-6W-40K-30M
Size: 6x6 mm
Voltage: 24V DC, constant voltage
Colour: neutral white (40K)
CRI: 90+
SDCM: under 5
Lighting angle: 60°
Dimming: DMX, PWM, 0-10V, MLV incandescent
Rating: IP67
Operating temperature: -20°C to 60°C
Lifespan: 50,000+ hours
Reel: 30 m
