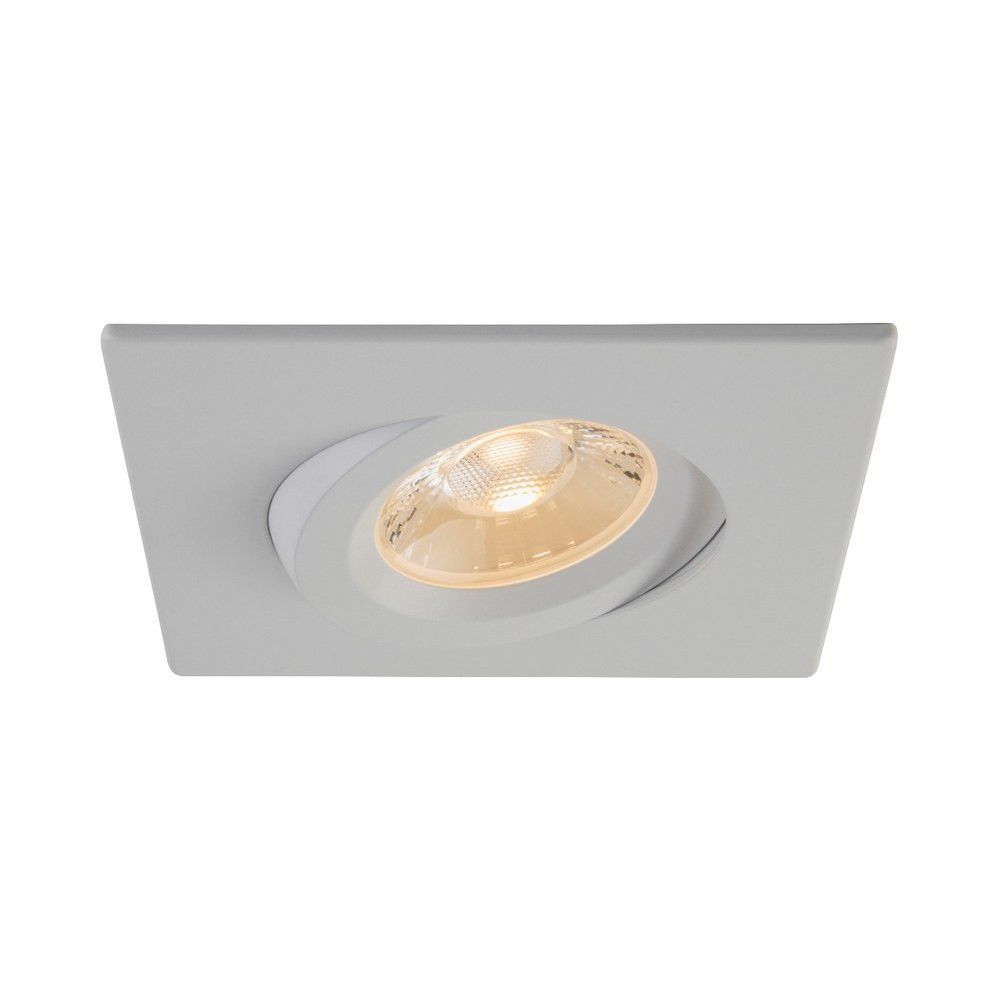

4" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA4S-12G-DTW-90WH

Name: 4" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA4S-12G-DTW-90WH
Brand: LITELINE
SKU: RA4S-12G-DTW-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA4S-12G-DTW-90WH

Brand: LITELINE

Warm, precise light that tilts exactly where you want it — that's the promise of the 4" LUNA LED Square Gimbal Recessed Fixture (SKU RA4S-12G-DTW-90WH) by Liteline. Call it a square downlight, a square pot light, a gimbal recessed light or simply a 4-inch recessed LED fixture: it's the all-in-one, retrofit-friendly solution homeowners, renovators and contractors reach for when they want clean ceilings and light that actually lands on the art, the island or the shower wall instead of the floor in front of it. The adjustable gimbal lets you aim the beam, while the crisp square trim in a white finish blends into modern and classic ceilings alike.

Under the hood, a 12 watt LED module delivers up to 1035 lumens at 92 lumens per watt, with a typical CRI of 90 so skin tones, wood grain and paint colours read true. The 3000 K colour temperature gives a welcoming warm white, and the lens shapes a controlled 40° beam spread. Dimming runs from 100% down to 10% with industry-standard TRIAC/ELV dimmers, powered by a 300mA dimmable Class II electronic driver with 100-135V AC, 60Hz input and a 0.95 power factor. The airtight aluminum body includes an anodized blue heat sink for airflow, and the fixture is rated for wet locations, approved for direct contact with insulation, cETLus certified, Energy Star listed, LM79 and LM80 tested, with a projected life of 70% at 50,000 hours and a lifetime warranty. Hole cut: Ø 4 3⁄16" (106mm).

It shines in kitchens, hallways, bedrooms, finished basements, sloped ceilings, covered porches and showers, as well as in boutiques, clinics, offices and restaurants — and because it's approved for insulated ceilings and wet locations, it handles Canadian winters, attic insulation and steamy bathrooms without drama. Two spring-loaded clips and three quick connect push-in terminals make wiring and mounting fast. Need the same look in another finish or a deeper, regressed aperture? See the 4" Luna LED square gimbal recessed fixture RA4S-12G-DTW-90BN or the 4" Luna LED square regressed gimbal recessed fixture RA4S-12RG-90WH. Plan your layout and order yours today.

Built to last, built to aim
The LUNA™ square gimbal starts with a durable airtight aluminum body paired with an adjustable gimbal, so you can tilt the light source and point it at a backsplash, a bookcase or a feature wall. An anodized blue heat sink keeps airflow moving around the LED module, which is exactly what protects colour consistency and output over the long haul. The square trim is finished in white, a low-profile look that disappears into drywall ceilings and pairs well with modern square vents and registers. Fixture dimensions are 4 15⁄16" (125mm) across with a 15⁄16" (34mm) profile, and the required hole cut is Ø 4 3⁄16" (106mm).

Light quality you can see
This general application recessed LED downlight uses a 12 watt LED module that maintains uniform intensity and produces up to 1035 lumens — 92 lumens per watt. The typical CRI of 90 renders colours faithfully, an advantage in kitchens, retail displays, galleries and anywhere merchandise or materials need to look their best. The 3000 K colour temperature stays warm and residential in feel, and the lens delivers a 40° beam spread for controlled, glare-managed pools of light rather than a washed-out ceiling. LM79 and LM80 testing back the photometric and lumen maintenance claims, with a projected life of 70% at 50,000 hours.

Electrical and installation
An extruded aluminum hardwire box houses a 300mA dimmable Class II electronic LED driver with 100-135V AC, 60Hz input and a power factor of 0.95. An 18" (457mm) FT6 rated cable with a DC 2.1 connector links driver and fixture, and that assembly is approved for use in plenums and suspended ceilings. Three "Quick connect" push-in terminals speed up wiring, and two spring-loaded clips let the fixture attach to virtually any ceiling material — ideal for retrofit work where you don't want to open up the ceiling. Dimming covers 100%-10% with industry standard TRIAC/ELV dimmers; the gimbal tilts 20° in each direction. Operating temperature range is -20°C~40°C (-4°F~104°F).

Technical specifications
Model: RA4S-12G-DTW-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per watt: 92
CCT: 3000 K
CRI: 90
Beam angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, TRIAC/ELV, 100%-10%
Power factor: 0.95
Hole cut: Ø 4 3⁄16" (106mm)
Colour: White
Certification: cETLus, Energy Star, LM79, LM80
Class II: Yes
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Applications, accessories and documentation
Because it's suitable for wet locations and approved for direct contact with insulation, this square gimbal pot light works over a shower, on a covered porch, in an insulated cathedral ceiling or throughout a basement renovation — plus offices, waiting rooms, hotel corridors and small shops. Accessories are sold separately and include the P-4020 round pre-mounting plate with driver attachment clip for 4" LUNA LED fixtures, the P-4020NC new construction plate, the P-4024 pre-mounting plate, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and VBE-1 to VBE-4 vapour barrier extenders for new construction and remodel work. Mixing finishes across one project is easy with the 4" Luna LED square gimbal recessed fixture RA4S-12G-DTW-90BK, or step up to the deeper aperture of the 4" Luna LED square regressed gimbal recessed fixture RA4S-12RG-90BK. The full technical PDF spec sheet is available in the Documentation tab for your layouts, permits and dimmer selection.
