4" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA4S-12G-90BN

Name: 4" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA4S-12G-90BN
Brand: LITELINE
SKU: RA4S-12G-90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA4S-12G-90BN

Brand: LITELINE

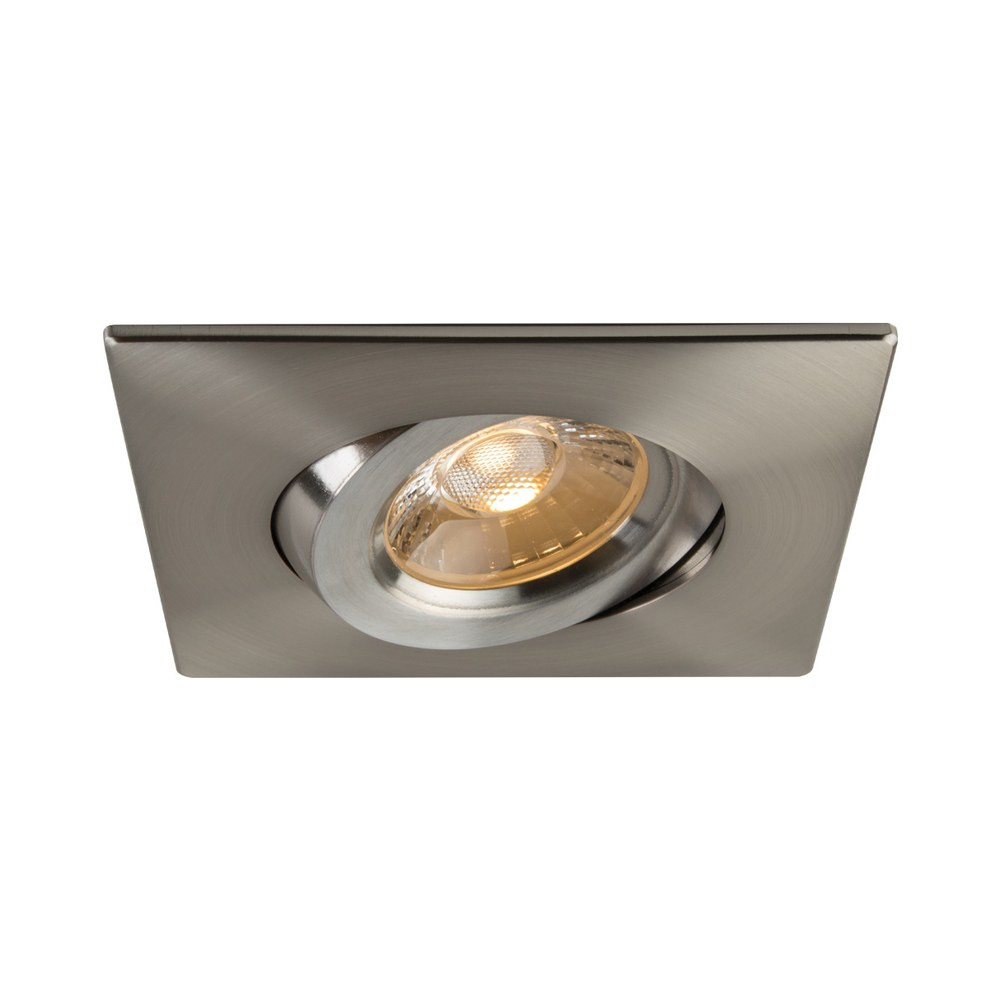

Point the light exactly where you want it — that's the whole idea behind the 4" LUNA LED Square Gimbal Recessed Fixture (SKU RA4S-12G-90BN) from LITELINE. Call it a square pot light, a square downlight, an adjustable recessed light or a gimbal LED recessed fixture: it's the same all-in-one unit, with a tilting square head set in a Brushed Nickel trim that swings 20° each way so you can wash a wall, highlight artwork, aim at a kitchen island or straighten out a beam on a sloped ceiling. It's built as a retrofit and new-construction downlight for homes, condos, offices, shops and restaurants — anywhere you want clean square downlights instead of the usual round ones.

Inside the durable airtight aluminum body is a 12 watt LED module with an anodized blue heat sink for maximum airflow, delivering up to 1035 lumens at 92 lumens per watt. Light quality is the real story: a typical CRI of 90 and a warm 3000 K colour temperature make skin tones, wood, paint and food look right, while the lens gives a controlled 40° beam spread. It dims smoothly from 100% to 10% on industry-standard TRIAC/ELV dimmers, runs on 100-135V AC, 60Hz with a 300mA dimmable Class II electronic driver, and carries a 0.95 power factor. It's cETLus certified, Energy Star qualified, LM79 and LM80 tested, suitable for wet locations, approved for direct contact with insulation, rated for -20°C~40°C operation, projected at 70% @ 50,000 hrs and backed by a Lifetime warranty.

With a Ø 4 3⁄16" (106mm) hole cut, a 4 15⁄16" (125mm) face and only 3 3⁄8" (85mm) of height, it slips into tight ceilings, insulated attics, bathrooms, covered porches and soffits across Canada — and the wet location rating plus the insulated ceiling approval means our winters and steamy showers are no problem. Two spring-loaded clips grip any ceiling material and three Quick Connect push-in terminals make wiring fast, with an 18" FT6 cable and DC 2.1 connector approved for plenums and suspended ceilings. Want the same fixture in another finish? See the 4" Luna LED square gimbal recessed fixture in white or in black, or step up to the regressed gimbal version in brushed nickel. Order yours and aim your light with confidence.

Built to last, built to aim
The RA4S-12G-90BN starts with a durable airtight aluminum body and an adjustable gimbal that tilts 20° to each side, so a single row of square recessed lights can be aimed at a backsplash, a bookcase or a feature wall. An anodized blue heat sink keeps air moving around the LED light source, which is exactly what keeps output and colour stable year after year — the projected life is 70% @ 50,000 hrs. The Brushed Nickel trim finish is a soft, warm-grey metallic that blends with stainless appliances, nickel faucets and modern hardware without shouting for attention.

Light quality you can see
This is a general application fixture with a 12 watt LED module that maintains uniform intensity and produces up to 1035 lumens, or 92 lumens per watt. The typical CRI of 90 means colours stay true — critical in kitchens, bathrooms, retail displays and anywhere people look at fabric, food or faces. The single 3000 K colour temperature gives a warm white that feels residential and inviting, and the lens produces a 40° beam spread: tight enough to accent, wide enough to light a room when fixtures are spaced properly.

Technical specifications
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 1035
Lumens per Watt: 92
CCT: 3000 K
CRI: 90
Beam Angle: 40°
Input: 100-135V AC, 60Hz
Dimming: Yes, 100%-10%
Dimming Tech: TRIAC/ELV
Power Factor: 0.95
Class II: Yes
Hole Cut: Ø 4 3⁄16" (106mm)
Fixture face: 4 15⁄16" (125mm)
Height: 3 3⁄8" (85mm)
Operating Temperature: -20°C~40°C (-4°F~104°F)
Certification: cETLus, Energy Star, LM79, LM80
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Colour: BN (Brushed Nickel)

Wiring, driver and installation
The fixture ships with an extruded aluminum hardwire box housing a 300mA dimmable Class II electronic LED driver with 100-135V AC input, plus an 18" FT6 rated cable and DC 2.1 connector between driver and fixture — approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make the hookup quick for electricians and confident DIYers, and two spring-loaded clips let the housing attach to any ceiling material through the Ø 4 3⁄16" (106mm) hole. Because it's approved for direct contact with insulation and suitable for wet locations, you can put it in an insulated attic ceiling, a shower, a covered porch or a soffit. For dimming, pair it with industry-standard TRIAC/ELV dimmers; a compatible dimmer list is published by Liteline.

Where it works and what's documented
Think kitchens and hallways in a renovation, bathrooms and closets in a condo, boutique retail and café ceilings, office corridors, hotel rooms and covered entries — projects where a crisp square aperture and an aimable head beat a fixed round pot light. Mix finishes across a project with the white version or the black version, or choose the deeper-set Luna square regressed gimbal fixture where glare control matters most. Accessories such as pre-mounting plates, new construction kits and vapour barrier extenders are sold separately. The full spec sheet for RA4S-12G-90BN, with dimensions, the ordering guide and accessory list, is in the Documentation tab.
