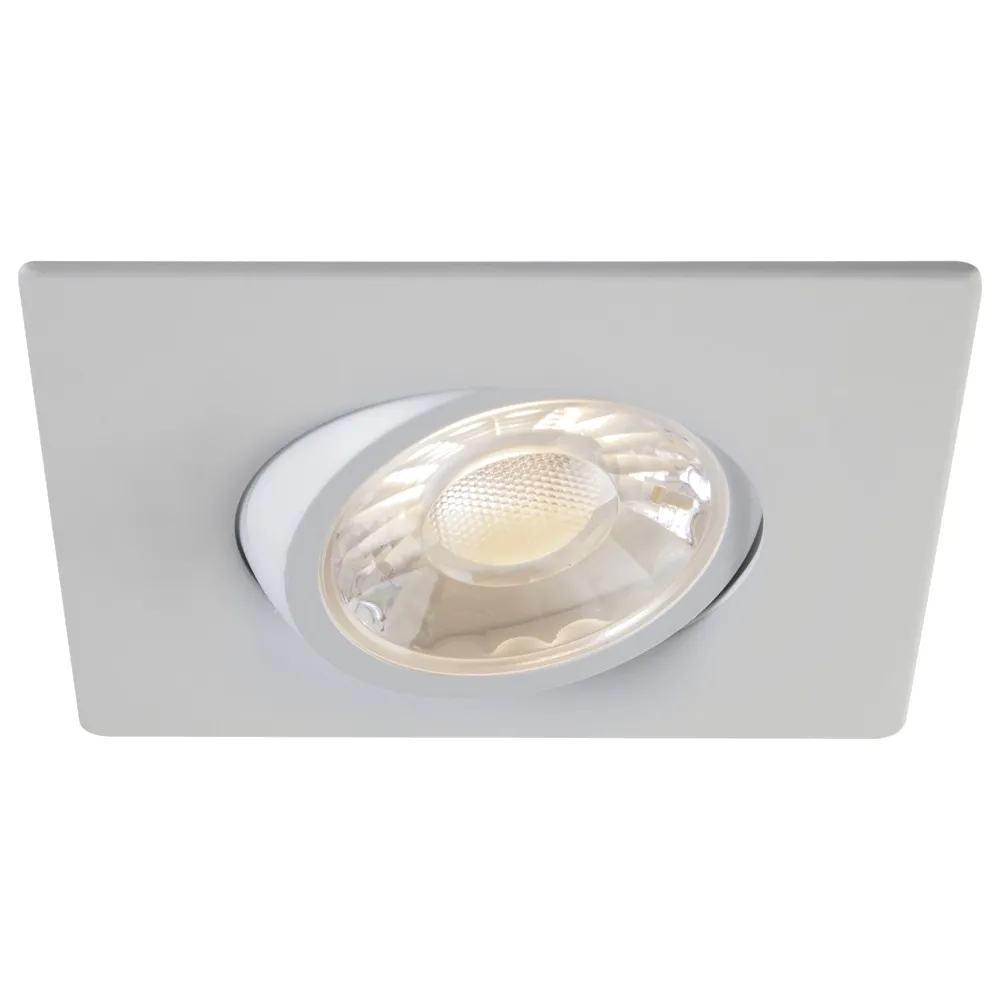

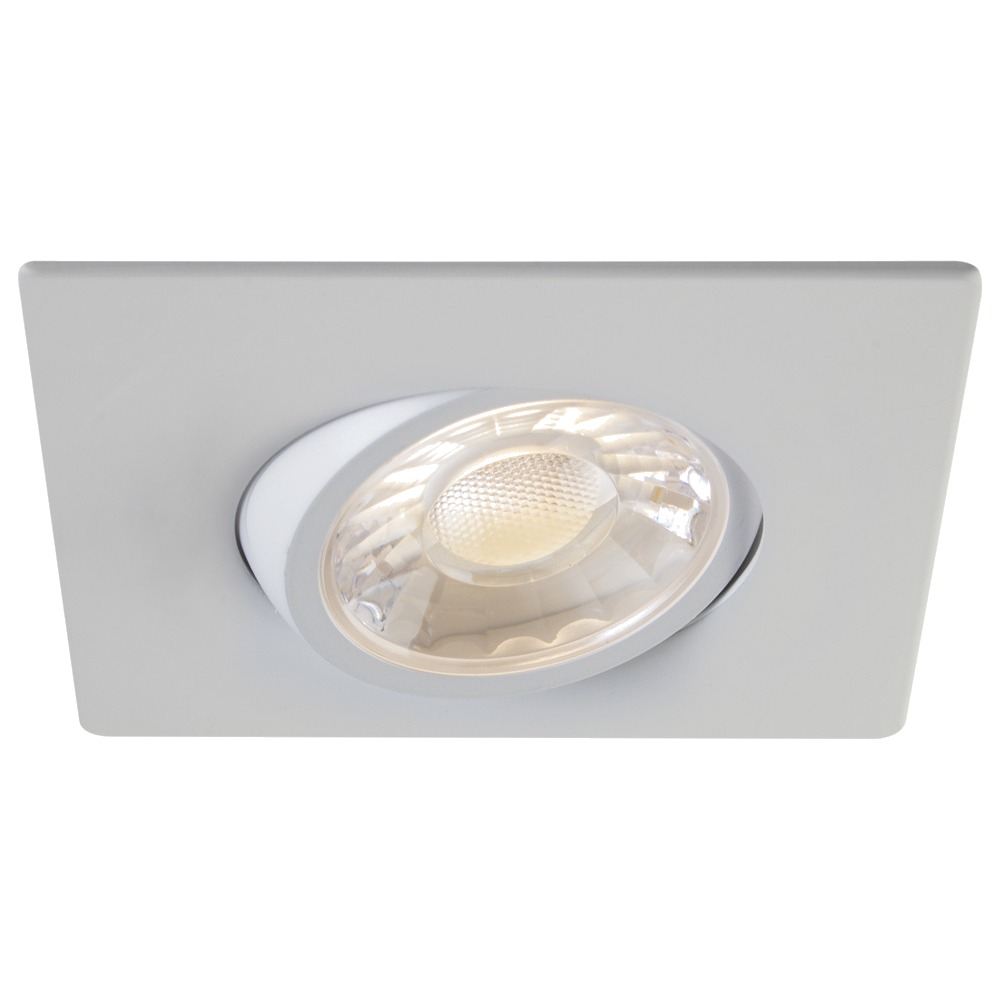

3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-30K-90WH

Name: 3" LUNA LED SQUARE GIMBAL RECESSED FIXTURE - RA3S-7G-30K-90WH
Brand: LITELINE
SKU: RA3S-7G-30K-90WH
Price: 70.97 CAD
Availability: InStock

SKU: RA3S-7G-30K-90WH

Brand: LITELINE

Small aperture, big impact: the 3" LUNA LED Square Gimbal Recessed Fixture (SKU RA3S-7G-30K-90WH) gives you a crisp square trim you can aim exactly where the light needs to go. People shop for this one under a lot of names — square downlights, 3 inch recessed lighting, pot light, gimbal downlight, adjustable LED downlight — and they all point to the same thing: a compact, all-in-one LED recessed fixture that replaces bulky housings and old halogen cans. The gimbal tilts so you can wash a stone feature wall, graze a fireplace surround, highlight art, or simply angle light away from a TV screen. Use it in a row down a hallway, over a kitchen island, in a shower, or across a retail ceiling where a clean square grid looks intentional and modern.

Under the hood, a 7 W LED module puts out up to 745 lumens — that's 96 lumens per watt — at a warm, comfortable 3000 K colour temperature with a typical CRI of 90, so wood tones, paint colours, skin tones and merchandise all look true. The 45° beam spread keeps light controlled and glare low. It runs on 100-135V AC, 50/60 Hz, dims smoothly with standard TRIAC/ELV dimmers, and carries a power factor of 0.95. The durable airtight aluminum body includes an anodized blue heat sink for maximum airflow around the LED, with a projected life of 70% at 33,000 hours and a lifetime warranty. It's cETLus certified, Class II, suitable for wet locations, approved for direct contact with insulation, and operates from -40°C to +40°C (-40°F to +104°F). Trim finish: white.

This is the fixture for a whole-home renovation, a basement refresh, a condo hallway, a boutique, a café or a dental clinic — anywhere a 2 3/4" (70 mm) hole cut is all the ceiling space you have. Canadian homes love it because the wet-location rating and insulation contact approval mean it works over a tub, in a shower, in a covered porch ceiling and in an insulated attic bay. Match finishes and colour temperatures across the same room with the 3" LUNA LED square gimbal recessed fixture RA3S-7G-30K-90BK, the brushed nickel RA3S-7G-30K-90BN, or go cooler with the RA3S-7G-35K-90WH. Plan your layout, count your holes, and order the quantity your project needs.

Built to last, built to breathe
The LUNA 3" square gimbal is made around a durable airtight aluminum body with an adjustable gimbal, so the trim stays flush and square while the optic tilts to aim the beam. Inside, an anodized blue heat sink keeps airflow moving around the LED light source — the reason this LED downlight holds its output over time instead of fading early. The airtight construction also helps limit air leakage between conditioned rooms and cold attic space, a real concern in Canadian winters. The white trim finish (WH) blends into painted drywall ceilings, while the square edge reads sharper and more architectural than a round pot light.

Light quality you can see
The 7 watt LED module maintains uniform intensity and produces up to 745 lumens with a typical CRI of 90 — high enough that whites stay white and reds stay rich, which matters over a kitchen counter, in a bathroom mirror zone or above retail displays. This SKU is fixed at 3000 K, a warm white that feels residential without going amber. The fixture lens delivers a 45° beam spread, a versatile middle ground: wide enough for general ambient coverage in a hallway or bedroom, tight enough for accenting when you tilt the gimbal toward a wall. At 96 lumens per watt, a full ceiling of these draws very little power compared to the halogen cans they replace.

Driver, dimming and wiring
Power comes from an extruded aluminum hardwire box with a 170 mA dimmable Class II electronic LED driver, 100-135V AC input. An 18" FT6 rated cable with a DC 2.1 connector links driver to fixture and is approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals make wiring fast — strip, push, done — which contractors appreciate when they're doing twenty openings in a day. Dimming is TRIAC/ELV compatible with industry standard dimmers; for the verified dimmer list, consult the Liteline compatible dimmer resource. Mounting is just as simple: two spring loaded clips grip any ceiling material through a 2 3/4" (70 mm) hole cut, making this an easy retrofit into existing ceilings.

Technical specifications
SKU: RA3S-7G-30K-90WH
Brand: LITELINE
Wattage: 7W
Lumens: 745
Efficacy: 96 lumens per watt
CCT: 3000 K
CRI: 90
Beam angle: 45°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, TRIAC/ELV
Hole cut: 2 3/4" (70 mm)
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings
Class II: Yes
Power factor: 0.95
Operating temperature: -40°C to +40°C (-40°F to +104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus, LM79, LM80
Trim finish: White (WH)
Warranty: Lifetime

Applications, accessories and documentation
Think open-concept main floors, stairwells, walk-in closets, covered patios, shower ceilings, condo entryways, salons, clinics and small offices — the wet location rating and insulation contact approval open doors a standard recessed downlight can't. Accessories are sold separately and include vapour barrier extenders for new construction and remodel work, a new construction mounting kit with hanger bars, brackets and screws, and a 2 3/4" round pre-mounting plate with driver attachment clip made for 3" LUNA LED fixtures. If your design calls for a dim-to-warm effect instead of fixed 3000 K, look at the 3" LUNA LED square gimbal recessed fixture RA3S-7G-DTW-90WH or the black RA3S-7G-DTW-90BK; for a warmer tone, the RA3S-7G-27K-90WH is the same fixture in a cozier white. The complete technical PDF spec sheet is in the Documentation tab for your electrician, inspector or lighting plan.
