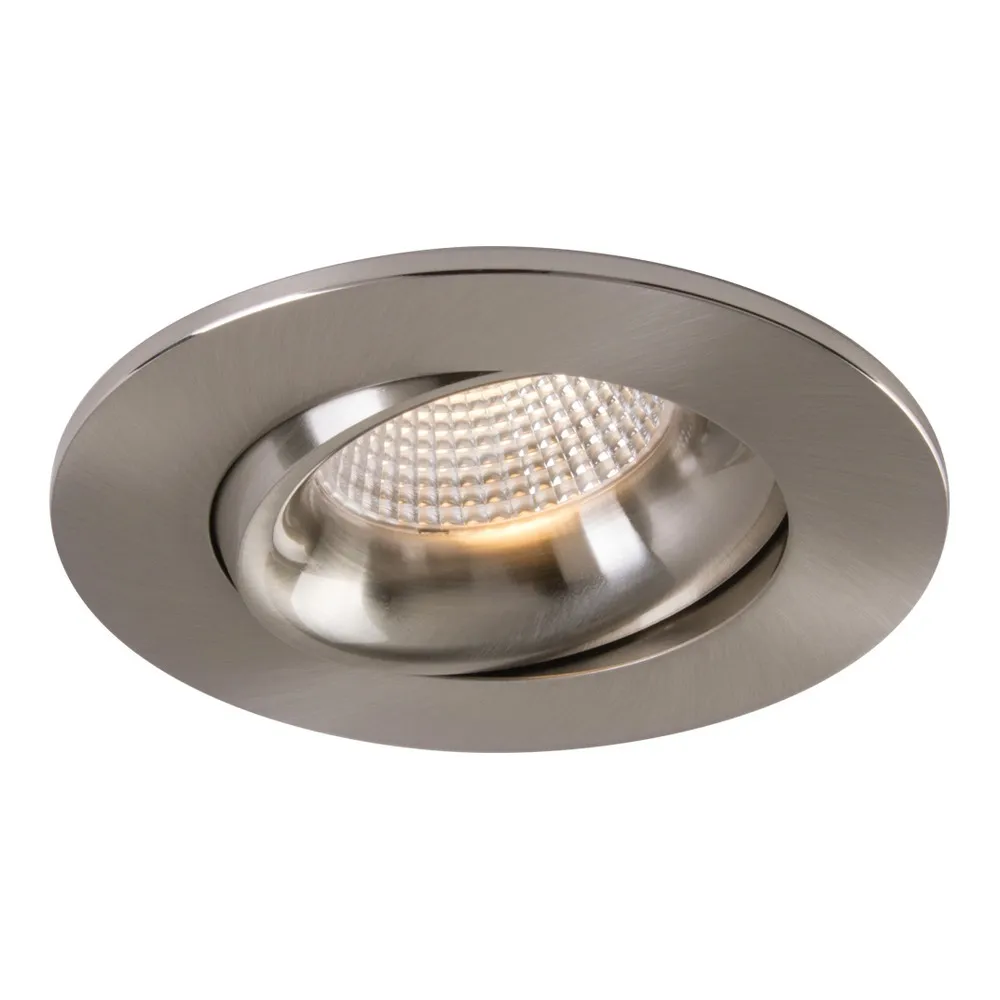

3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-90BN

Name: 3.5" LUNA LED ROUND RECESSED FIXTURE - RA35-12G-90BN
Brand: LITELINE
SKU: RA35-12G-90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA35-12G-90BN

Brand: LITELINE

Small aperture, big presence: the LUNA 3.5" LED round recessed fixture from LITELINE (SKU RA35-12G-90BN) is the discreet pot light pros reach for when a ceiling deserves clean lines and warm, flattering light. Call it a recessed downlight, a round LED light, a mini can light or simply a dimmable LED downlight — it's the same idea: one compact 3.5-inch round housing that disappears into the drywall and puts the attention on your space, not on the fixture. With its brushed nickel trim finish, it slips into kitchens, hallways, bedrooms, offices and retail ceilings alike, and it's built for both residential and commercial projects.

Under the hood, a 12 watt LED module delivers up to 600 lumens at 57 lumens per watt, with a typical CRI of 90 so wood grain, paint colours, skin tones and merchandise all look true. The dim-to-warm engine shifts from 3000 K down to 2000 K as you dim, giving you crisp everyday light and a candle-like glow at night. Dimming is TRIAC/ELV compatible through a 300 mA dimmable Class II electronic driver with 100-135V AC, 50/60 Hz input, and the lens produces a tidy 38° beam spread. The airtight aluminum body includes an anodized blue heat sink for airflow, it is cETLus certified, suitable for wet locations, approved for direct contact with insulation, rated for operation from -20°C to 40°C, projected at 70% output at 33,000 hours and backed by a lifetime warranty. Hole cut is Ø 3 5⁄8" (92 mm).

This is the downlight for renovated kitchens and open-concept living rooms, covered porches and bathrooms where a wet-location fixture is required, condo corridors, boutiques, clinics and café ceilings. Two spring-loaded clips grab any ceiling material and three Quick Connect push-in terminals plus an 18" FT6 cable with DC 2.1 connector make wiring fast — plenum and suspended ceiling approved. Matching finishes are available: 3.5" LUNA LED round recessed fixture RA35-12G-90WH and 3.5" LUNA LED round recessed fixture RA35-12G-90BK. Light your project the right way — add the LUNA 3.5" to your cart.

Built to last, built to install
The LUNA 3.5" starts with a durable airtight fixed aluminum body and an anodized blue heat sink that keeps air moving around the LED light source — the simplest way to protect lumen output over the long haul. Two spring-loaded clips let the fixture bite into any ceiling material, so a retrofit recessed downlight install in existing drywall takes minutes with a Ø 3 5⁄8" (92 mm) hole cut. The extruded aluminum hardwire box keeps the driver tidy above the ceiling, and the compact footprint (4 3⁄8" / 111 mm overall, 3 3⁄8" / 85 mm) tucks into tight joist bays and shallow plenums.

Light quality and dim-to-warm
The 12 watt LED module produces uniform intensity with up to 600 lumens and a typical CRI of 90, which is the difference between a kitchen that looks flat and one where the backsplash, countertops and cabinetry read properly. Colour temperature dims from 3000 K to 2000 K, mimicking the warm shift of incandescent as you turn the dimmer down — great for dining rooms, bedrooms, restaurants and hotel-style ambiance. The lens delivers a controlled 38° beam spread, clean enough to space evenly down a hallway or to graze a feature wall.

Technical specifications
SKU: RA35-12G-90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: 600
Lumens per watt: 57
CCT: 3000 K~2000 K
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes — TRIAC/ELV
Power factor: >0.90
Hole cut: Ø 3 5⁄8" (92mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 33,000 hrs
Certification: cETLus
Class II: Yes
LM79 / LM80: Yes
Warranty: Lifetime
Finish: Brushed Nickel

Wiring, dimming and compatibility
Power comes from a 300 mA dimmable Class II electronic LED driver with 100-135V AC input, connected to the fixture by an 18" (457 mm) FT6 rated cable with a DC 2.1 connector approved for use in plenums and suspended ceilings. Three Quick Connect push-in terminals mean no wire nuts and fast daisy-chaining across a run of downlights. Use an industry-standard TRIAC or ELV dimmer for smooth dim-to-warm control. Accessories listed for this family are sold separately and include the P-3520 round pre-mounting plate and P-3520NC new construction plate with driver attachment clip for 3½" LUNA LED fixtures, the P-NCMK-1 new construction mounting kit with hanger bars, the VBE-1 to VBE-4 vapour barrier extenders (a real answer to the "recessed lighting vapor barrier" question in Canadian builds), the RA35-XLRING-BN, RA35-XLRING-BK and RA35-XLRING-WH reducer rings, and the LC-CRTL-DIM-1 smart Wi-Fi dimmer, 120V.

Where to use it, and documentation
Think kitchen downlights over an island, a rhythm of small apertures in a hallway, bathroom and covered-entry ceilings where a wet location rating is mandatory, plus offices, salons, boutiques and restaurant ceilings that need a quiet, high-CRI look. Approved for direct contact with insulation, it also suits insulated ceilings in cold-climate Canadian homes. Need other finishes or the standard LUNA versions? See the 3.5" LUNA LED round recessed fixture RA35-12G-DTW-90BN, the 3.5" LUNA LED round recessed fixture RA35-12F-DTW-90BN or the 3.5" LUNA LED round recessed fixture RA35-12F-30K-90WH. The full technical spec sheet (PDF) is available in the Documentation tab for your submittals and permit packages.
