Designed for the LUX710 and LUX740

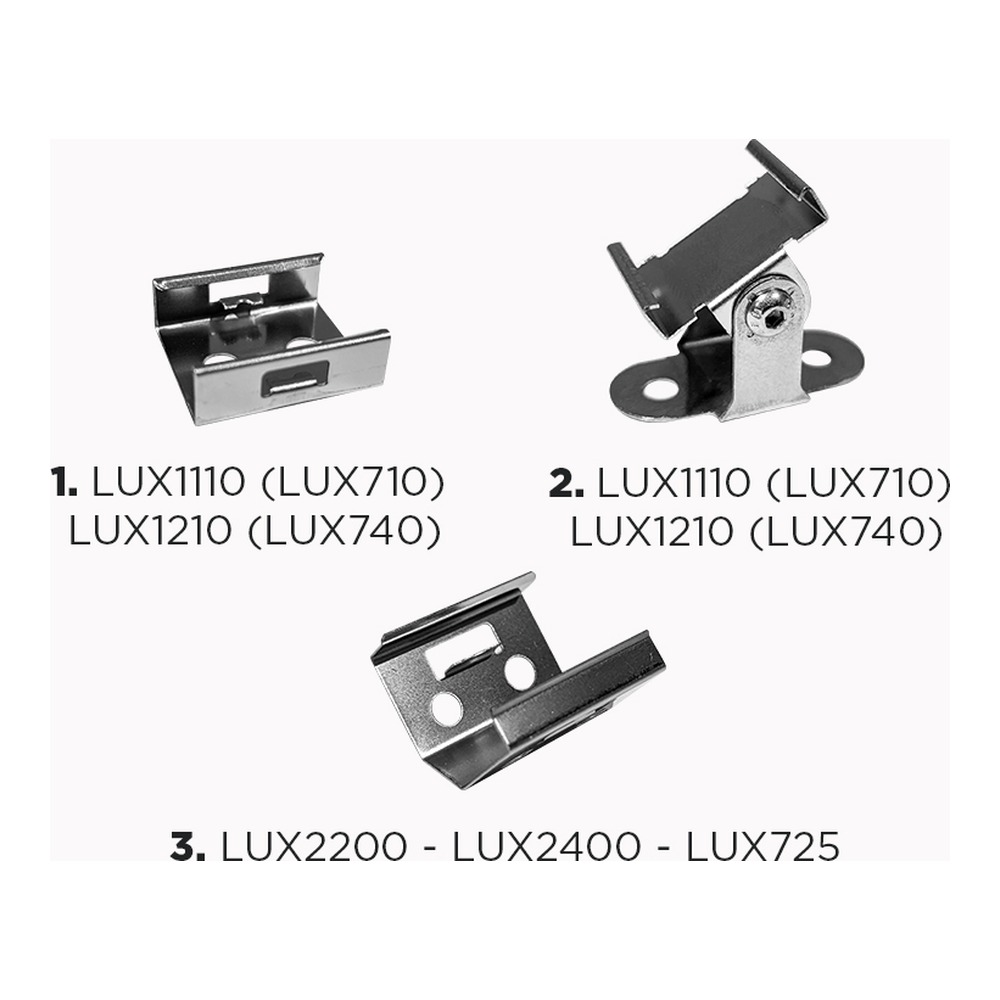

These slim U-shape clips are made to receive the LUX710 and LUX740 aluminum U-shape profiles. The clip is screwed to the mounting surface, then the profile, with its LED strip already inside, is clipped in. Because the clip only has to hold the profile, it stays low and discreet and lets the light line read as a continuous, clean element. The slim format is especially welcome in shallow spaces, such as under a cabinet with a short valance or along a narrow shelf. Each package contains a pair of clips with their screws, ready to install.
Installation tips
Draw a straight reference line with a level or a laser, then position the mounting clips along it, spacing them evenly under the profile. For long runs or ceiling installations, plan additional pairs so the LED profile is supported along its whole length. In drywall, use anchors suited to the surface; in cabinetry, drill small pilot holes to avoid splitting the wood. On a ceiling, check that each screw bites into solid material or a proper anchor. Install the strip in the profile and route its wires before clipping the profile in, and leave a little slack at the feed end so the connection is never pulled.
Choose the right clip for your profile
Every LED profile family has its own holding clip, so matching them matters. This pair is made for the LUX710 and LUX740 U-shape profiles only. Angled corner profiles use a different, V-shaped clip, so confirm the model of your profile before ordering. If you are lighting a long kitchen run or a full ceiling cove with LUX710 or LUX740 profiles, count the profiles and the support points you need, then order the matching number of pairs in a single step.
Projects
Under-cabinet task lighting in a kitchen, a lit pantry or closet shelf, a vanity niche, a workbench in the garage, a ceiling cove in a condo, display shelving in a boutique or a reception desk in an office: wherever an aluminum extrusion carries an LED strip, these clips give it a clean, screw-mounted base. They also make future upgrades simpler, since the same mounting points can receive a new profile of the same model. Homeowners renovating and contractors across Canada choose them whenever a screwed installation is preferred over tape, in residential and commercial spaces alike.
Technical specifications
Product: pair of mounting clips
Shape: slim, U-shape
Hardware: screws included
Compatible profiles: LUX710 and LUX740
