10 FEET INTERIOR ALUMINUM U SHAPE PROFILE FOR LED STRIP (LUX740)

Name: 10 FEET INTERIOR ALUMINUM U SHAPE PROFILE FOR LED STRIP (LUX740)
Brand: LED MONTREAL
SKU: 10FLUX740
Price: 59.97 CAD
Availability: InStock

SKU: 10FLUX740

Brand: LED MONTREAL

Give your lighting the clean, custom look it deserves with the 10 FEET INTERIOR ALUMINUM U SHAPE PROFILE FOR LED STRIP (LUX740), model 10FLUX740 by LED MONTREAL. Whether you call it an aluminum extrusion, an LED channel, a U-shape track or simply a profilé for LED strip, this is the piece that turns a bare roll of tape light into a finished architectural line. The open U design lets you drop in your LED strip lights and keep the diode face visible for maximum output, making it a favourite for coves, under-cabinet runs, shelving, toe-kicks, closets and long ceiling details. At a full 10 feet, it covers big spans with fewer joints — one of the main reasons people searching for 8 foot LED strip lights or long LED ceiling light strips end up choosing the longer bar instead.

This is extruded aluminum built for real installations: U Shape (Surface) type, 10 Feet (3.05 m) long, 18.7 mm wide and 11.5 mm high. That generous channel is what makes it so versatile — it accepts an iP20 strip, an iP65+ strip, and even certain iP67 strips, so you are not forced to change tape just to fit your channel. Mount it with the sturdy double-sided tape or with the optional aluminum mounting clips, and finish the run with matching end caps for a tidy, professional edge. A useful note on ordering: the quantity of caps and clips you select is multiplied by the number of bars ordered, so choosing 2 closed caps with 5 bars gives you 10 closed caps. Because of its length, this profile is available at our service counter only — it cannot travel by mail.

From condo kitchens in Montréal to retail displays, office reception walls, basement bars, stair nosings and workshop benches, this 10-foot channel brings order to any LED strip lighting project, residential or commercial. It houses and protects the tape, helps spread heat away from the diodes and hides the wiring channel along the way. Need a shorter run or a mailable option? The 8 feet aluminum U shape profile for LED strip (LUX740) is the same LUX740 family in a shorter bar. Plan your lengths, grab your clips and end caps, and give your installation that crisp, built-in look.

Solid extruded aluminum construction

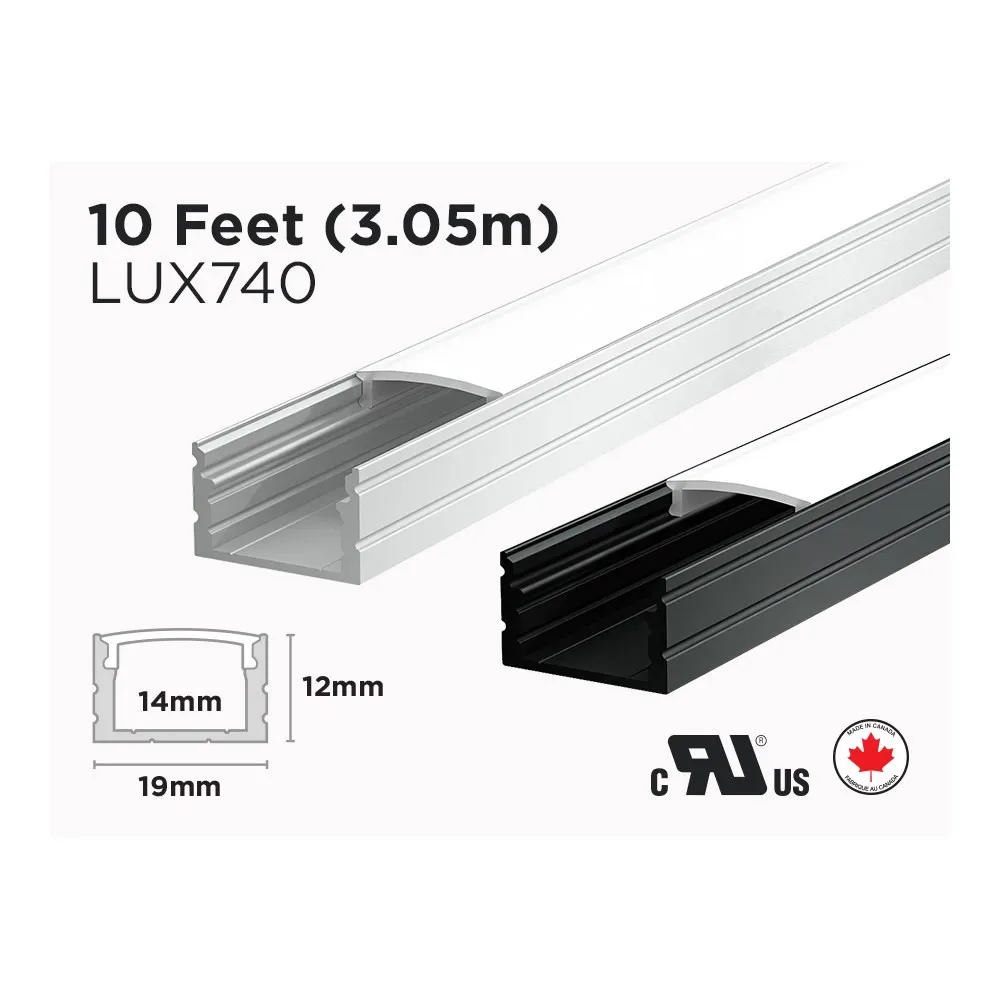

The 10FLUX740 is a surface-mount U shape aluminum profile made to carry LED tape in a straight, rigid line. Its 18.7 mm width and 11.5 mm height give you a roomy interior channel, while the open top keeps the light path completely unobstructed. Aluminum is the material of choice for strip lighting because it acts as a continuous mounting rail and a heat path in one, drawing warmth away from the diodes along the whole run instead of letting it build up under a bare strip stuck to drywall or wood.

Technical specifications
Model: 10FLUX740
SKU: 10FLUX740
Brand: LED MONTREAL
Type: U Shape (Surface)
Length: 10 Feet (3.05 m)
Width: 18.7 mm
Height: 11.5 mm

Strip compatibility and accessories
One channel, three families of tape: this profile accepts an iP20 LED strip, an iP65+ strip, and certain iP67 strips. That flexibility matters when a project mixes dry interior runs with damp-area sections and you want one consistent look throughout. Hold the bar in place with the optional aluminum clips screwed to the surface, or use the sturdy double-sided tape for quick, fastener-free mounting on clean substrates. Matching end caps — closed or open for cable exit — close off the extremities so the run reads as a finished detail rather than a cut piece of metal. Remember that the number of caps and clips you select is multiplied by the number of bars, so a 5-bar order with 2 closed caps ships 10 closed caps.

Installation tips
Because this is a 10-foot bar, plan your layout before cutting: measure the run, decide where joints and power feeds will land, and keep solder or connector points near an end cap or an accessible section. Cut the aluminum square with a fine-tooth blade or mitre saw and deburr the edges so the strip slides in cleanly. Clean the mounting surface before applying tape, and space your clips evenly on longer spans and overhead runs so the profile stays perfectly straight. Always cut your LED tape only on the marked cut lines, and leave a little slack at the lead wires. Note that due to its size, this profile is available at our service counter only and cannot be shipped by mail.

Applications and documentation
This 10-foot LED extrusion shines in kitchen under-cabinet and above-cabinet runs, cove and ceiling perimeter lighting, closets and pantries, stairwells, home theatres, bar backs, garage and workshop benches, as well as commercial work: retail shelving and display cases, office reception desks, restaurant millwork and corridor accents. Contractors like it because fewer bars mean fewer joints across a long wall or ceiling line. For the exact dimensions and profile shape, consult the technical PDF in the Documentation tab of this page. If your project also calls for shorter sections, pair this bar with the 8 feet aluminum U shape profile for LED strip (LUX740), which shares the same LUX740 profile design.
