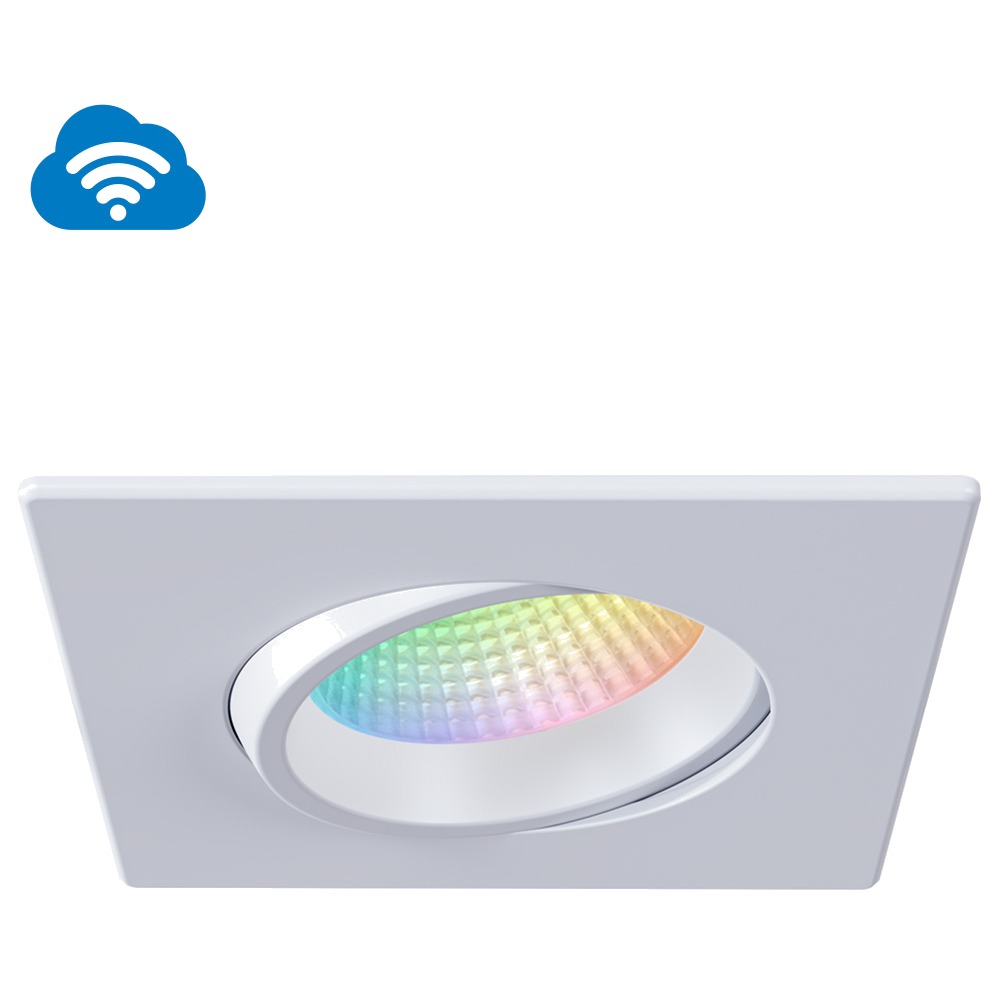

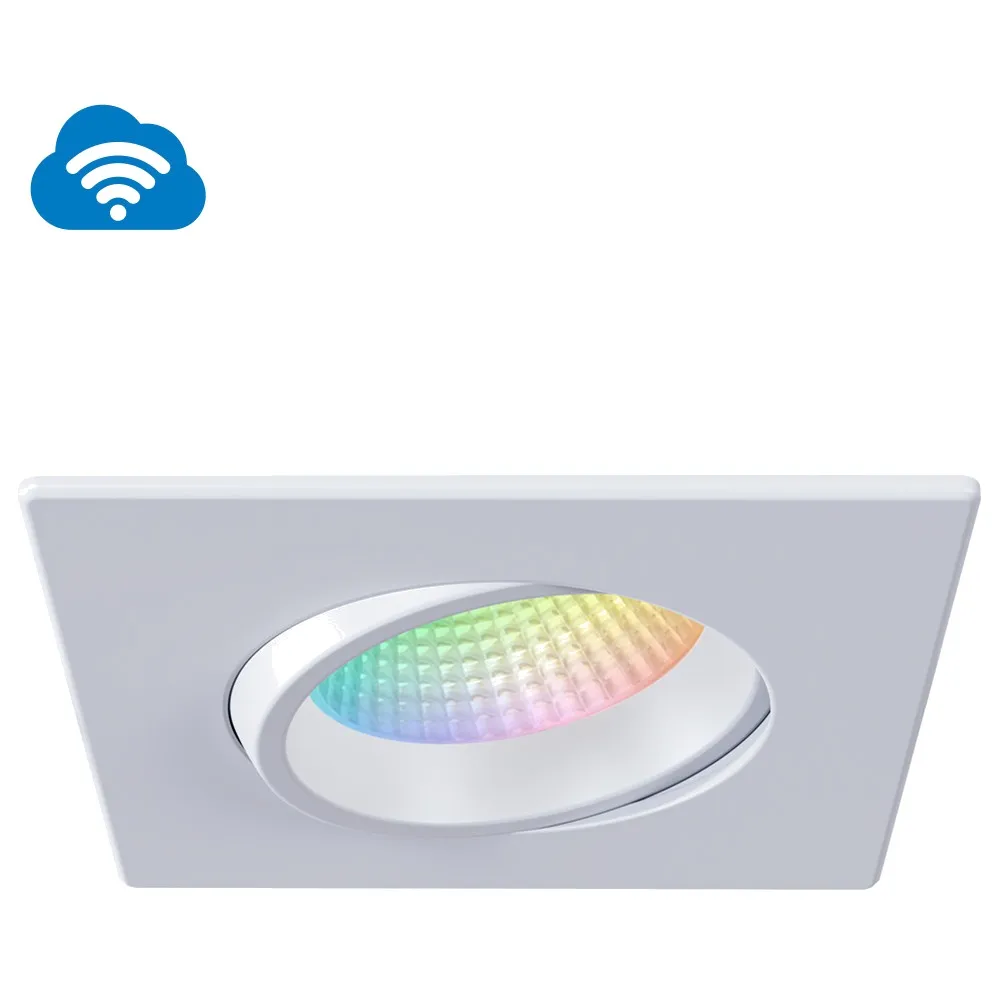

LUNA 4" ONCLOUD - RGBTW - RA4S-12RG-RGBTW-90WH

Name: LUNA 4" ONCLOUD - RGBTW - RA4S-12RG-RGBTW-90WH
Brand: LITELINE
SKU: RA4S-12RG-RGBTW-90WH
Price: 128.97 CAD
Availability: InStock

SKU: RA4S-12RG-RGBTW-90WH

Brand: LITELINE

Turn one ceiling opening into 16 million colours and every shade of white: meet the LUNA 4" OnCloud RGBTW from LITELINE, SKU RA4S-12RG-RGBTW-90WH. This is a 4-inch regressed gimbal recessed light — what most people call a pot light, a recessed downlight or an LED downlight — with a tilting, deep-set optic that hides the light source and kills glare. Because it runs on Wi-Fi, you get colour, colour temperature and dimming straight from your phone, without pulling a single extra wire. It is the kind of fixture that handles everyday task lighting in a kitchen on Monday and washes a feature wall in deep blue for a party on Saturday.

The 12W LED module delivers up to 910 lumens (up to 74 lumens per watt) with a typical CRI of 90, so skin tones, wood and paint colours read true. It covers RGB with 16 million colours plus Tunable White from 2200 K to 6500 K — 650 lumens at 2200 K, 710 at 2700 K, 750 at 3000 K, 775 at 3500 K, 800 at 4000 K, 850 at 5000 K and 910 at 6000 K. Wi-Fi dimming runs from 100% down to 2% through the WiZ App (iOS and Android) or the OnCloud Room Controller, with voice control through Google Assistant, Siri, Alexa and IFTTT. The 40° beam spread gives crisp directional light; the airtight aluminum body with anodized blue heat sink keeps the LED cool. Rated for wet locations, approved for direct contact with insulation, Class II, cETLus certified, starts down to -40°C (-40°F), 100-135V AC 60Hz input, 0.9 power factor, projected life of 70% @ 50,000 hrs and a 3-Year warranty. Hole cut is Ø 4¼" (108mm), trim finish white.

It shines in kitchens, basements, hallways, bedrooms and media rooms, and just as well in restaurants, salons, boutiques and hotel lobbies where the mood has to change during the day. Wet-location and insulation-contact approval make it a natural for Canadian soffits, covered porches, bathrooms and insulated ceilings. Planning a mixed project? Pair it with the white 4" LUNA square regressed gimbal RA4S-12RG-90WH, the tunable white RA4S-12RG-DTW90WH or the black RA4S-12RG-90BK. Add it to your next lighting plan and light every room exactly the way you feel.

Built to disappear into the ceiling
The LUNA OnCloud uses a durable airtight aluminum body with an adjustable regressed gimbal, so the LED sits deep inside the trim instead of staring back at you. That recess is what gives the fixture its low-glare, high-end look, while the gimbal lets you aim light at artwork, a backsplash or a stair run. An anodized blue heat sink is built in to provide maximum airflow for the LED light source, which is exactly what you want from a recessed downlight buried in an insulated ceiling. Two spring-loaded clips attach the housing to any ceiling material, and the hole cut is Ø 4¼" (108mm).

Colour, white light and real dimming
This general application fixture carries a 12 watt LED module that maintains uniform intensity and produces up to 910 lumens with a typical CRI of 90. You get RGB with 16 million colours and Tunable White from 2200 K to 6500 K, so the same pot light can go from a candle-like 2200 K evening glow to a crisp 6000 K work light. Output by colour temperature at 12W: 650 lumens at 2200 K, 710 at 2700 K, 750 at 3000 K, 775 at 3500 K, 800 at 4000 K, 850 at 5000 K, 910 at 6000 K. Dimming runs 100%-2% over Wi-Fi, controlled through the WiZ App or the Room Controller, and the 40° lens keeps the beam tight and directional.

Technical specifications
SKU: RA4S-12RG-RGBTW-90WH
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings / Indoor / Outdoor
Wattage: 12W (300mA)
Lumens: Up to 910
Lumens per watt: Up to 74
CRI: 90
CCT: Tunable White 2200 K - 6500 K
Colour: RGB, 16M Colors
Beam angle: 40°
Input: 100-135V AC, 60Hz
Power factor: 0.9
Dimming: Yes, Wi-Fi dimming via WiZ App, 100%-2%
Hole cut: Ø 4¼" (108mm)
Minimum starting temperature: -40°C (-40°F)
Certification: cETLus, Class II
Projected life: 70% @ 50,000 hrs
Warranty: 3-Year
Trim finish: WH (White)

Wiring, app and compatibility
The extruded aluminum hardwire box holds a 12 watt (300mA) Wi-Fi dimmable LED driver with 100-135V AC input, and an 18" FT-6 wire with a 6-Pin DC connector links the driver to the fixture. Three "Quick connect" push-in terminals make the line-voltage hook-up fast on site — a real time-saver when a contractor is installing a dozen 4" recessed lights in a day. Control is through the WiZ App on iOS and Android from anywhere, or the LC-CRTL-SCENE-1 OnCloud Room Controller for ON/OFF, CCT, dimming and favourite scenes; voice control works with Google Assistant, Siri, Alexa and IFTTT. Liteline lists accessories sold separately, including the P-4020 pre-mounting plate, the P-4020NC new construction plate, the P-NCMK-1 new construction mounting kit, VBE-1, VBE-2 and VBE-5 vapour barrier extenders, RA4-XLRING-BK and RA4-XLRING-WH reducer rings, and the SLM-60-RGBTW-FC 60" flexible connector for LUNA OnCloud RGBTW fixtures.

Where it earns its keep — and the paperwork
Think open-concept kitchens where you want 3000 K over the island at supper and a warm 2200 K later, basements and home theatres that switch to colour for movie night, bathrooms and covered porches thanks to the wet-location rating, and retail, café or salon ceilings where scenes sell the room. For a consistent look across a project, mix it with the family: the 4" LUNA square gimbal RA4S-12G-90WH, the RA4S-12RG-DTW90BK in black or the brushed RA4S-12RG-90BN. The full technical PDF spec sheet is available in the Documentation tab for dimensions, lumen tables and approvals.
