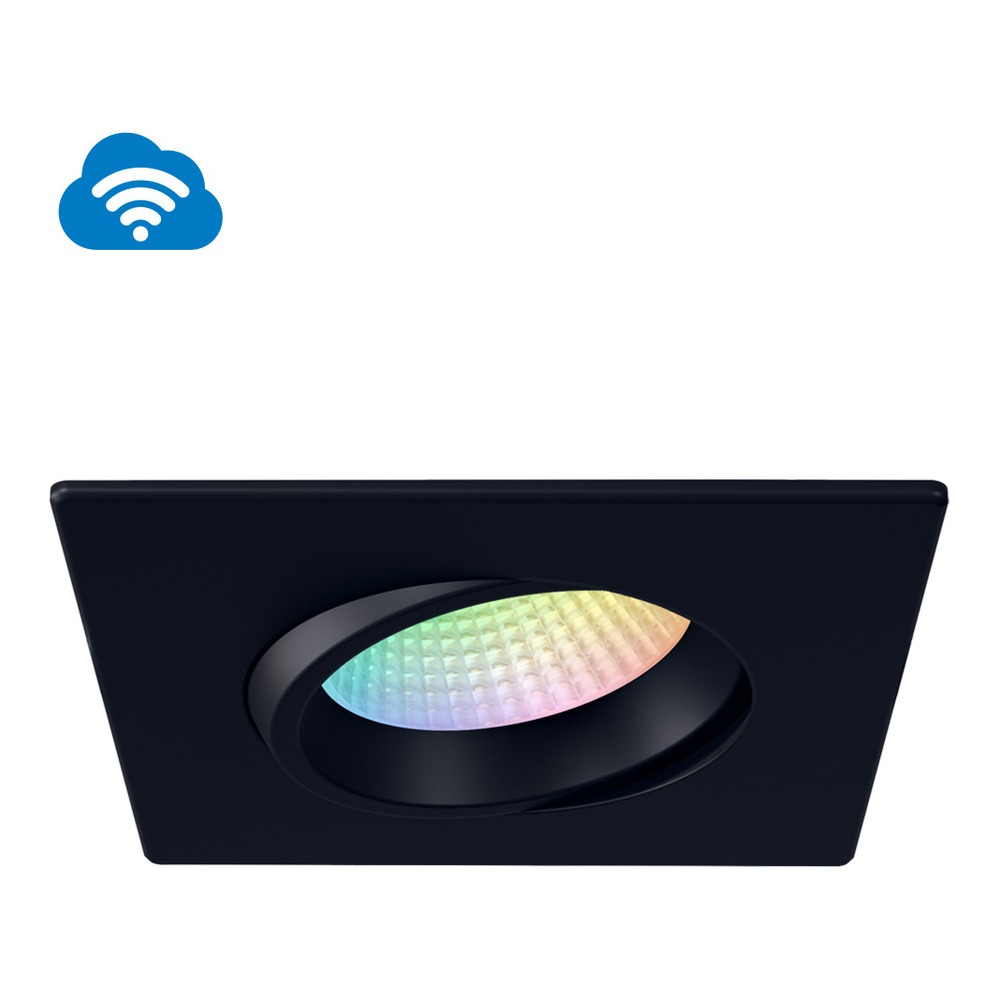

LUNA 4" ONCLOUD - RGBTW - RA4S-12RG-RGBTW-90BK

Name: LUNA 4" ONCLOUD - RGBTW - RA4S-12RG-RGBTW-90BK
Brand: LITELINE
SKU: RA4S-12RG-RGBTW-90BK
Price: 128.97 CAD
Availability: InStock

SKU: RA4S-12RG-RGBTW-90BK

Brand: LITELINE

Paint your ceiling any colour you want, then dial it back to a perfect warm white for dinner — the LUNA 4" OnCloud RGBTW from LITELINE is a 4-inch regressed gimbal LED recessed fixture with Wi-Fi control built right in. People shop for it under a lot of names: pot light, 4" LED downlight, smart recessed light, adjustable gimbal recessed downlighting, RGB colour-changing pot light. Whatever you call it, it does two jobs at once: it aims light exactly where you want it thanks to the adjustable regressed gimbal, and it changes colour on demand — RGB with 16 million colours plus tunable white — all from your phone. It's built for general application lighting in kitchens, living rooms, hallways, basements, covered porches, retail floors and hospitality spaces, and it carries the SKU RA4S-12RG-RGBTW-90BK in a black trim finish.

Under the hood: a 12W LED module delivering up to 910 lumens (up to 74 lumens per watt) with a typical CRI of 90, so skin tones, wood grain and paint colours look honest. The tunable white range runs from 2200 K to 6500 K, with rated output by CCT of 650 lumens at 2200 K, 710 at 2700 K, 750 at 3000 K, 775 at 3500 K, 800 at 4000 K, 850 at 5000 K and 910 at 6000 K. The lens gives a 40° beam spread, and the Wi-Fi driver dims smoothly from 100% down to 2% through the WiZ App or the OnCloud Room Controller. Input is 100-135V AC, 60Hz, with a 0.9 power factor, Class II construction, cETLus certification, projected life of 70% at 50,000 hours and a 3-year warranty. The airtight aluminum body includes an anodized blue heat sink, and the cut-out is Ø 4¼" (108 mm).

Suitable for wet locations, approved for direct contact with insulation and rated for indoor/outdoor use with a minimum starting temperature of -40°C (-40°F) — which matters a lot for Canadian soffits, porches and unheated garages. Two spring-loaded clips grip any ceiling material, and three quick-connect push-in terminals plus an 18" FT-6 wire with 6-pin DC connector keep the rough-in fast. Pair it with the 4" LUNA square regressed gimbal recessed fixture RA4S-12RG-90BK in the same black finish for non-smart zones, or with the 4" LUNA regressed gimbal RA4S-12RG-DTW90BK tunable-white version. Add it to your next lighting plan and give every room a colour it can change.

Built to last, built to aim
The LUNA OnCloud starts with a durable airtight aluminum body and an adjustable regressed gimbal, a combination that keeps the LED source tucked up inside the housing for low glare while still letting you tilt the beam toward a feature wall, an island or a stairway. An anodized blue heat sink sits behind the module to provide maximum airflow for the LED light source, which is what protects lumen output and colour consistency over the long haul. The trim finish on this version is black (BK), part of a family that also offers white (WH), and the fixture mounts into a Ø 4¼" (108 mm) hole using two spring-loaded clips that bite into drywall, plaster, wood or T-bar-adjacent ceiling materials. Fixture dimensions include a 5 1⁄16" (128 mm) and 4 3⁄16" (106 mm) profile with a 30° gimbal tilt.

Colour, white light and light quality
This is a true RGB + Tunable White fixture: 16 million colours for accent, holiday and mood scenes, plus a white range from 2200 K to 6500 K for everyday living. Typical CRI 90 rendering means colours read naturally rather than washed out, and the 40° beam spread from the lens gives a controlled pool of light that layers nicely when fixtures are spaced out. Output climbs with colour temperature — 650 lumens at 2200 K, 710 at 2700 K, 750 at 3000 K, 775 at 3500 K, 800 at 4000 K, 850 at 5000 K, up to 910 lumens at 6000 K — so you can go cozy and candle-like in the evening or crisp and task-bright in the morning from the exact same can.

Electrical, dimming and smart control
Power comes from an extruded aluminum hardwire box with a 12 watt (300 mA) Wi-Fi dimmable LED driver, 100-135V AC 60Hz input, 0.9 power factor and Class II construction. An 18" FT-6 wire with a 6-pin DC connector links driver to fixture, and three quick-connect push-in terminals make the line-side wiring quick for contractors working a whole floor. Dimming runs 100% to 2% over Wi-Fi, controlled through the WiZ App (iOS and Android) from anywhere, or locally with the OnCloud Room Controller. Voice control is available by integrating the app with most smart speakers — it works with Google Assistant, Siri, Alexa and IFTTT — so scenes, colour changes and dimming can be triggered without touching a switch.

Technical specifications
SKU: RA4S-12RG-RGBTW-90BK
Brand: LITELINE
Application: Ceiling recess mount
Approved location: Wet / insulated ceilings / indoor / outdoor
Wattage: 12W
Lumens: Up to 910
Lumens per watt: Up to 74
CRI: 90
Colour: RGB, 16M colours
CCT: Tunable White (2200 K - 6500 K)
Beam angle: 40°
Input: 100-135V AC, 60Hz
Power factor: 0.9
Dimming: Yes, Wi-Fi dimming via WiZ App, 100%-2%
Hole cut: Ø 4¼" (108 mm)
Minimum starting temperature: -40°C (-40°F)
Class II: Yes
Certification: cETLus
Energy Star: No
Projected life: 70% @ 50,000 hrs
Warranty: 3-Year
Trim finish: BK (black)

Applications, accessories and documentation
Because it's suitable for wet locations, approved for direct contact with insulation, airtight and rated for indoor/outdoor use down to a -40°C (-40°F) starting temperature, this 4" smart pot light works in the places a basic downlight can't: covered porches and soffits, bathrooms and showers, insulated cathedral ceilings, sunrooms and unheated entryways. Indoors, it's a natural for open-concept kitchens, primary bedrooms, basement theatres, restaurants that want a warm 2200 K dinner scene and a bright 5000 K cleaning scene, salons, boutiques and Airbnb units where colour scenes are part of the experience. Accessories listed for the platform are sold separately and include the P-4020 pre-mounting plate, P-4020NC new construction plate, P-NCMK-1 new construction mounting kit, RA4-XLRING-BK and RA4-XLRING-WH reducer rings, VBE-1, VBE-2 and VBE-5 vapour barrier extenders, the LC-CRTL-SCENE-1 OnCloud Room Controller and the SLM-60-RGBTW-FC 60" flexible connector for LUNA OnCloud RGBTW fixtures. To fill out a full plan, mix it with the 4" LUNA regressed gimbal RA4S-12RG-90BK, the 4" LUNA regressed gimbal RA4S-12RG-90WH or the 4" LUNA square gimbal RA4S-12G-DTW-90BK. The full spec sheet for RA4S-12RG-RGBTW-90BK is available in the Documentation tab for cut-out dimensions, the CCT lumen table and the ordering guide.
