TRACK KIT - TK6004-WH-KIT2

Name: TRACK KIT - TK6004-WH-KIT2
Brand: LITELINE
SKU: TK6004-WH-KIT2
Price: 293.97 CAD
Availability: InStock

SKU: TK6004-WH-KIT2

Brand: LITELINE

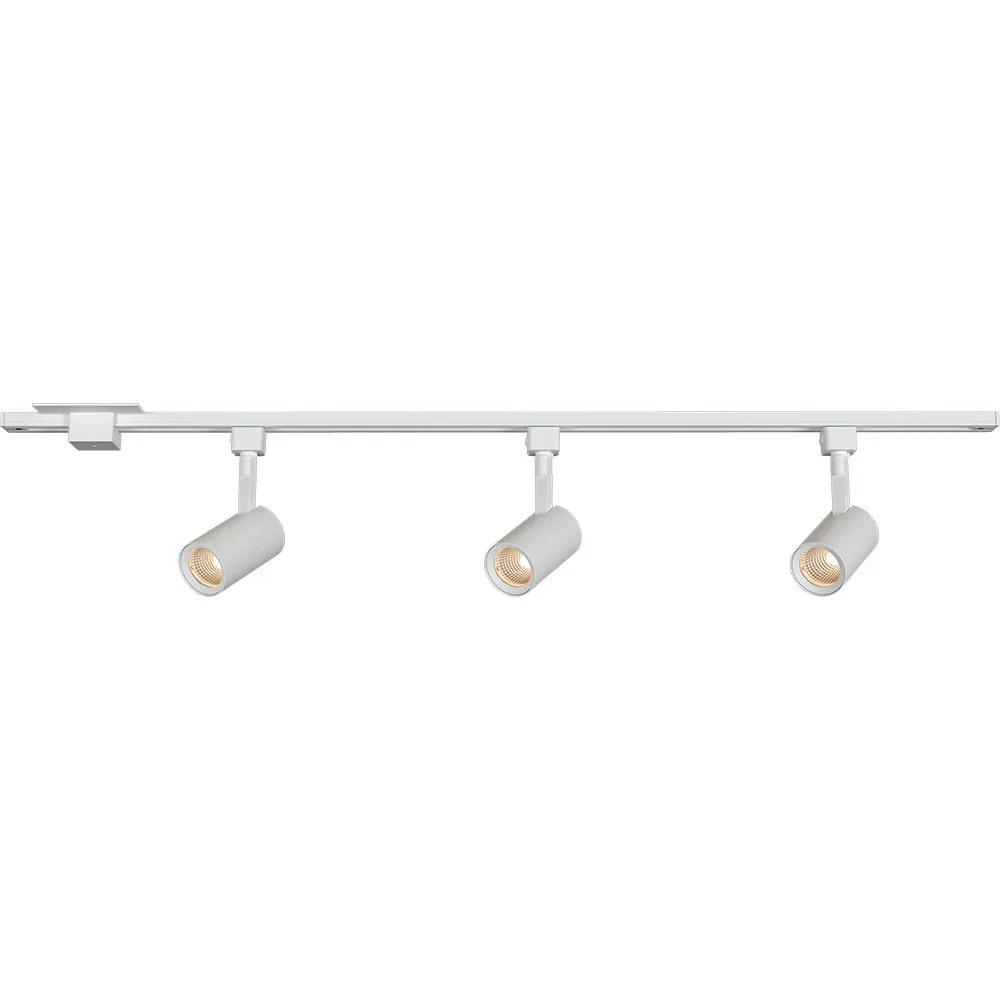

Everything you need to light a room the smart way, in one box: the LITELINE TK6004-WH-KIT2 is a complete 4 ft track lighting kit in white, ready to mount and aim the day it lands on your job site. People search for it as a track light kit, a rail lighting set, a 4ft track lighting system or simply "track lighting heads on a rail" — and that is exactly what it is: a 48" (1219 mm) extruded aluminum track, a center feed, and three Delta DA2012 LED track heads with a CCT selectable switch. No bulbs to buy, no guessing which connector goes with which rail. Point the beams at a kitchen island, a feature wall, a retail display, a row of artwork or a home-office desk, and move the heads any time the furniture (or the merchandise) moves.

Each DA2012 head draws 12W and delivers up to 1010 lumens with up to 84 lumens per watt, so three heads cover a lot of counter and floor space without the heat of halogen. The CCT selectable switch gives you five colour temperatures on the fixture itself — 2700 K (up to 890 lumens), 3000 K (up to 940), 3500 K (up to 990), 4000 K (up to 1010) and 5000 K (up to 1005) — so warm and cozy or crisp and commercial is a flick away. CRI 90 keeps skin tones, wood grain and paint colours honest, and the 38° beam angle gives a clean, controlled pool of light. Heads rotate 358° and tilt 90°. Runs on 120V, 60Hz, single circuit rated 20A per branch circuit, dims with TRIAC/ELV dimmers, is Energy Star qualified, cETLus certified for dry/indoor locations, with LM80 data, a power factor ≥0.97, a projected life of 50,000 hours and a 5-year warranty.

This kit earns its keep in Canadian kitchens and basements, condo living rooms, hallways, boutiques, cafés, salons, galleries and small offices — anywhere you want aimable light without cutting ceilings for pot lights. The track is compatible with all Liteline track accessories and connectors, so you can extend, join or add heads later. Need a longer run? Look at the 6 ft versions: Track kit TK6006-WH-KIT in white or Track kit TK6006-BK-KIT in black. Prefer black hardware? Grab the Track kit TK6004-BK-KIT2. Order the TK6004-WH-KIT2 and light the room properly this weekend.

One box, one afternoon, one finished ceiling
Track kits exist because chasing down a rail, a feed, connectors and compatible heads separately is how projects stall. The TK6004-WH-KIT2 ships as 1 kit per box and includes the 4' extruded aluminum track with center feed plus 3 × DA2012 Delta track fixtures in white. The TK60 extrusion is 1⁄32" die cast aluminum construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove on the face of the track shows exactly where the grounding conductor sits — a small detail that saves a lot of second-guessing during installation.

Light quality you can actually see
Each Delta head is an aluminum designer track fixture with an LED module up to 12 watt, built for directional aiming with a secure lock on the angle position. The 38° beam angle keeps light where you point it, CRI 90 renders colour faithfully, and the TM-30 Annex E rating is P2V-/F2. The on-fixture CCT selectable switch gives five colour temperatures with their own outputs: 2700 K up to 890 lumens, 3000 K up to 940, 3500 K up to 990, 4000 K up to 1010 and 5000 K up to 1005. Set warm light over a dining table and neutral light over a work surface using the very same heads.

Technical specifications
SKU: TK6004-WH-KIT2
Kit contents: 4' extrusion, center feed, 3 × DA2012 track fixtures, white
Track length: 48" (1219 mm)
Application: Track
Approved location: Dry / Indoor
Wattage: 12W per head
Lumens: up to 1010
Lumens per watt: up to 84
CCT: 2700 K - 3000 K - 3500 K - 4000 K - 5000 K
CRI: 90
Beam angle: 38°
Rotation: 358°
Tilt: 90°
Dimming: Yes, TRIAC/ELV
Primary voltage: 120
System electrical rating: 20A, 120V, 60Hz
Power factor: ≥0.97
Projected life: 50,000 hrs
Certification: cETLus
Energy Star: Yes
LM80: Yes
Warranty: 5 Years
Colour: WH

Electrical and installation
This is a single circuit, 120V system: single hot and neutral conductors are rated for 20 Amps per branch circuit, with copper electrical conductors concealed in an insulating thermoplastic low profile cross-section. The CF6108 center feed has a low, clean design with solid 12-gauge conductors, an easy twist-and-lock connection and a floating design that lets it be installed anywhere along the track; it comes complete with canopy cover and mounting hardware. Track lighting is a flexible electrical distribution system, so plan your head spacing first, then mount. For dimming, pair the kit with a TRIAC or ELV dimmer and you are set.

Where it works and what it works with
Think galley kitchens and islands, open basements, condo hallways, art walls, boutique shelving, café counters, salon stations and small showrooms — anywhere directional light beats a single ceiling fixture. The Liteline track system is compatible with all Liteline track accessories and connectors, so the run can grow with the space. For longer layouts, step up to Track kit TK6006-WH-KIT (6' with 5 heads) or its black twin Track kit TK6006-BK-KIT; if you only need the bare 4' rail in another finish, see TK6004-BN. Full details, dimensions and the ordering guide are in the technical PDF spec sheet in the Documentation tab.
