TRACK KIT - TK6006-BK-KIT

Name: TRACK KIT - TK6006-BK-KIT
Brand: LITELINE
SKU: TK6006-BK-KIT
Price: 435.97 CAD
Availability: InStock

SKU: TK6006-BK-KIT

Brand: LITELINE

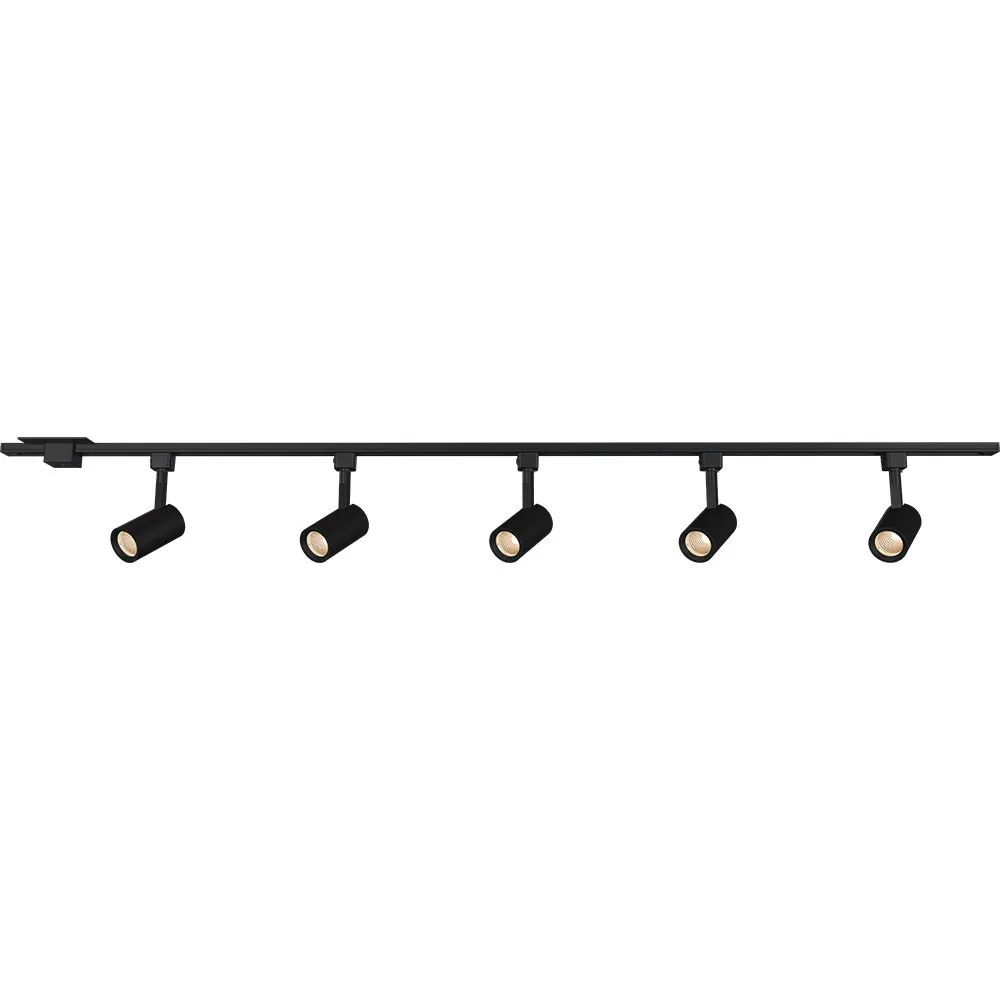

Everything you need for a complete track lighting run, in one box. The TRACK KIT - TK6006-BK-KIT from LITELINE pairs a 6' black extruded aluminum rail with a center feed and five Delta DA2012 LED track light heads, so you can go from empty ceiling to perfectly aimed light in a single afternoon. If you have been shopping for a track lighting kit, a track rail with heads, or simply looking to replace tired old track light heads, this ready-to-install package skips the guesswork of matching rails, connectors and fixtures from different systems.

Each of the five Delta heads carries a 12W LED module delivering up to 1010 lumens, with a 38° beam angle for tight, controlled accenting. A CCT selectable switch on every head gives you five colour temperatures — 2700 K (up to 890 lumens), 3000 K (up to 940), 3500 K (up to 990), 4000 K (up to 1010) and 5000 K (up to 1005) — so one kit covers warm living spaces and crisp retail displays alike. Colour rendering is a faithful CRI 90, efficacy reaches up to 84 lumens per watt, power factor is ≥0.97 and projected life is 50,000 hours. The heads rotate 358° and tilt 90° with a secure lock on the angle position. The system is rated 20A, 120V, 60Hz single circuit, the track is 1⁄32" die cast aluminum with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and the whole kit is dimmable on TRIAC/ELV controls. cETLus certified, Energy Star, LM80 tested, approved for dry/indoor locations, backed by a 5-year warranty. Track length: 72" (1829 mm), finish black.

This 6-foot kit is a natural over a kitchen island, along a hallway of artwork, in a basement renovation, or above shelving and display tables in a boutique, gallery, café or salon — anywhere Canadian homeowners and contractors need aimable light without cutting into the ceiling. The Liteline track system is compatible with all Liteline track accessories and connectors, so you can extend the run later. Prefer a lighter finish? The same kit is offered as Track kit TK6006-WH-KIT. Order the TK6006-BK-KIT and light your space the way you want it.

Built to last, built to install fast
The TK60 extrusion at the heart of this kit is 1⁄32" die cast aluminum with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring. Copper electrical conductors are concealed in an insulating thermoplastic low profile track cross-section, and a polarity groove runs along the face of the track to show exactly where the grounding conductor sits — a small detail that saves real time and prevents wiring mistakes on site. The TK6006 rail measures 72" (1829 mm) in a black finish, and the kit ships with the track, the CF6108 center feed and five DA2012 Delta track heads together, so nothing is missing when you climb the ladder.

Light quality you can actually see
Each Delta head is an aluminum designer fixture holding an LED module of up to 12 watts, throwing a 38° beam for precise aiming. The CCT selectable switch on the head lets you choose between five colour temperatures on the spot: 2700 K for up to 890 lumens, 3000 K for up to 940, 3500 K for up to 990, 4000 K for up to 1010 and 5000 K for up to 1005 lumens. With CRI 90 and a TM-30 Annex E rating of P2V-/F2, skin tones, wood grain, fabric and merchandise all read true. Efficacy climbs to 84 lumens per watt and projected life is 50,000 hours, so this is a fixture you aim once and forget about.

Technical specifications
SKU: TK6006-BK-KIT
Brand: LITELINE
Kit contents: 6' extrusion, center feed, 5 × DA2012 track fixtures, black
Track length: 72" (1829 mm)
Application: Track
Approved location: Dry / Indoor
System electrical rating: 20A, 120V, 60Hz
Primary voltage: 120
Wattage: 12W
Lumens: Up to 1010
Lumens per watt: Up to 84
CCT: 2700 K - 3000 K - 3500 K - 4000 K - 5000 K
CRI: 90
Beam angle: 38°
Rotation: 358°
Tilt: 90°
Dimming: Yes, TRIAC/ELV
Power factor: ≥0.97
Projected life: 50,000 hrs
Certification: cETLus
Energy Star: Yes
LM80: Yes
TM-30 Annex E: P2V-/F2
Colour: BK
Warranty: 5 Years

Electrical, installation and compatibility
This is a single circuit 120V track system: single hot and neutral conductors rated 20 Amps per branch circuit, designed to feed several lighting units in a flexible way. The CF6108 center feed uses solid 12-gauge conductors with an easy twist-and-lock action and a floating design, so it can be installed anywhere along the rail — handy when your junction box is not where you would like it to be. It comes complete with canopy cover and mounting hardware. Dimming runs on standard TRIAC/ELV dimmers, and because the whole Liteline track system is compatible with all Liteline track accessories and connectors, you can add straight connectors, corners or more heads down the road. Always have the connection to the branch circuit made by a licensed electrician, and keep the installation in dry, indoor locations.

Where it works and what else to look at
Five aimable heads on six feet of rail is the sweet spot for a kitchen island, a long hallway gallery, a living room with feature walls, a finished basement, or a retail counter, boutique display, café, hair salon or small office where merchandise and faces need to look their best. Choosing 2700 K or 3000 K keeps a home cozy; 4000 K or 5000 K brings punch to a commercial space. The same kit in white is the Track kit TK6006-WH-KIT, and if you need the 6' rail on its own to extend a run or build a custom layout, look at TK6006-BK, also offered as TK6006-WH, TK6006-BN and TK6006-SL. The full technical PDF (TK6006-BK-KIT Spec Sheet), with dimensional drawings and the complete ordering guide, is in the Documentation tab.
