TRACK KIT - TK6004-BK-KIT2

Name: TRACK KIT - TK6004-BK-KIT2
Brand: LITELINE
SKU: TK6004-BK-KIT2
Price: 293.97 CAD
Availability: InStock

SKU: TK6004-BK-KIT2

Brand: LITELINE

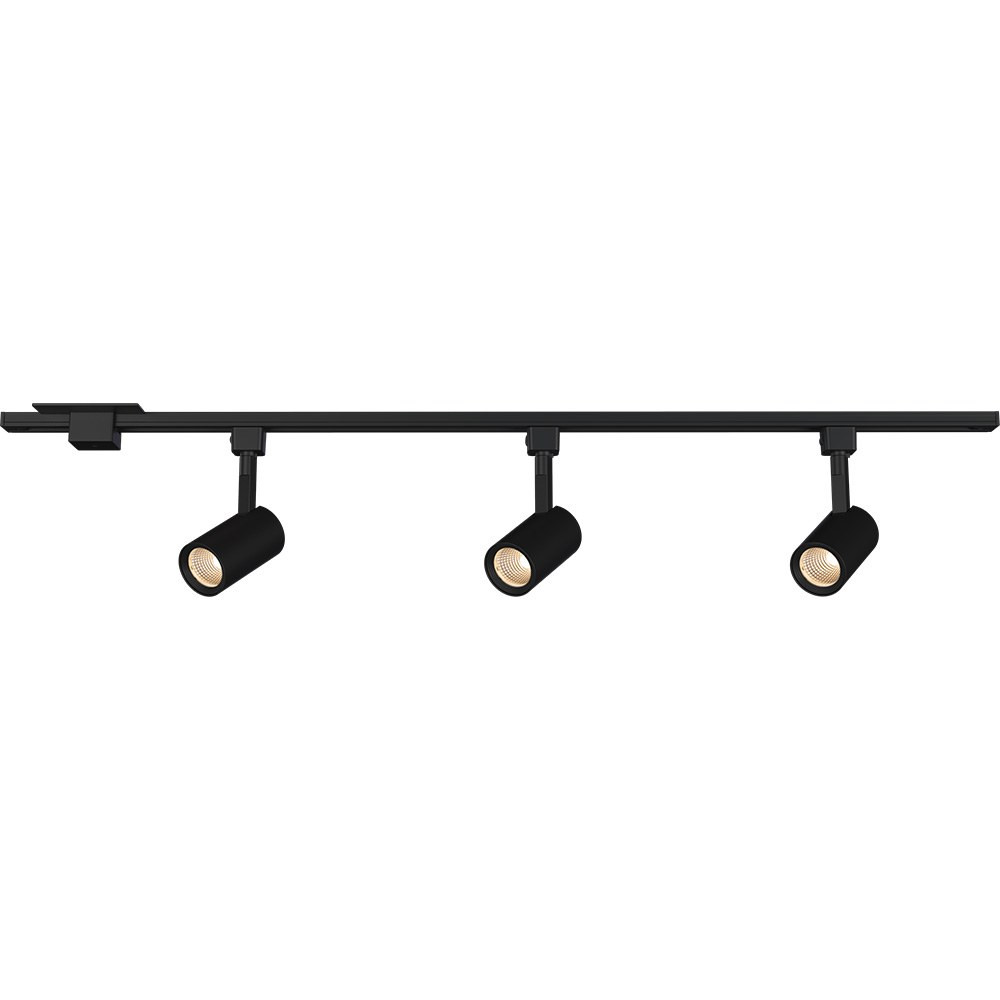

Everything you need for a complete track lighting run, in one box. The Liteline TK6004-BK-KIT2 is a ready-to-install track kit built around a 4' black extruded aluminum track, a center feed and three Delta DA2012 LED track light heads with a CCT selectable switch. If you have been shopping for 4ft track lighting, a track lighting head set or a complete black track rail system, this kit skips the guesswork: rail, power feed, canopy cover and fixtures all arrive together, matched and ready to mount.

The TK60 extrusion is 1⁄32" die-cast aluminum with 3⁄64" PVC insulators holding 12-gauge flat conductor wiring, and a polarity groove on the face of the track shows exactly where the grounding conductor sits. It is a single-circuit 120V track rated 20A, 120V, 60Hz, and the TK6004 length measures 48" (1219 mm). Each Delta head is an aluminum designer fixture with an LED module up to 12 watts, delivering up to 1010 lumens and up to 84 lumens per watt, with a 38° beam angle, 358° rotation and 90° tilt for precise aiming. The CCT switch selects 2700 K, 3000 K, 3500 K, 4000 K or 5000 K (up to 890, 940, 990, 1010 and 1005 lumens per head respectively), with 90 CRI colour rendering, power factor ≥0.97, TRIAC/ELV dimming, Energy Star, LM80, cETLus certification, a 50,000 hour projected life and a 5-year warranty.

Rated for dry/indoor locations, this kit is at home over a kitchen island or peninsula, in a hallway or living room, above a stairwell gallery wall, and just as comfortable in a boutique, salon, café, office or showroom where adjustable accent light sells the merchandise. The center feed twists and locks anywhere along the track and the Liteline track system is compatible with all Liteline track accessories and connectors, so you can extend, corner or end-cap the run later. Need a longer run in the same black finish? Look at the Track kit TK6006-BK-KIT. Prefer white? The Track kit TK6004-WH-KIT2 is the same kit in white. Order yours and light the room tonight.

A complete kit, not a pile of parts
Track kits are a ready solution for various track applications, providing all the components needed for quick installation. The TK6004-BK-KIT2 includes the TK60 extruded aluminum track rail in black, a CF6108 center feed and three DA2012 Delta track heads with CCT selectable switch. The KIT2 suffix means the kit ships in 1 kit per box, so a multi-room job arrives organized and each run stays together on site.

Construction and electrical
The TK60 extrusion is built from 1⁄32" die-cast aluminum with 3⁄64" PVC insulators holding 12-gauge flat conductor wiring, and copper electrical conductors are concealed in an insulating thermoplastic low-profile cross-section. A polarity groove on the face of the track indicates the location of the grounding conductor, which makes head orientation obvious during installation. This is a single-circuit track for 120V: single hot and neutral conductors rated 20 Amps per branch circuit, system electrical rating 20A, 120V, 60Hz. Track lighting is a single-circuit electrical distribution system designed to supply power to lighting units in flexible ways. The CF6108 center feed uses solid 12-gauge conductors with an easy twist-and-lock action and a floating design that lets it be installed anywhere along the track, and it comes complete with canopy cover and mounting hardware.

Light quality you can aim
Each DA2012 Delta is an aluminum designer track fixture with an LED module up to 12 watts that provides a directional light source for specific aiming and assures a secure lock on the angle position. The 38° beam angle concentrates light where you want it, 358° rotation and 90° tilt cover the rest, and the CCT selectable switch lets you pick 2700 K, 3000 K, 3500 K, 4000 K or 5000 K on the spot — warm for a living room, neutral for retail, cool for a workspace. Output per head is up to 890 lumens at 2700 K, 940 at 3000 K, 990 at 3500 K, 1010 at 4000 K and 1005 at 5000 K, with 90 CRI and a TM-30 Annex E rating of P2V-/F2 for faithful skin tones, wood grain and fabric colour.

Technical specifications
SKU: TK6004-BK-KIT2
Brand: Liteline
Kit contents: 4' extrusion, center feed, 3 × DA2012 track fixtures, black
Track length: 48" (1219 mm)
Application: Track
Approved location: Dry / Indoor
Wattage: 12W
Lumens: Up to 1010
Lumens per watt: Up to 84
CCT: 2700 K - 3000 K - 3500 K - 4000 K - 5000 K
CRI: 90
Beam angle: 38°
Rotation / Tilt: 358° / 90°
Primary voltage: 120
System rating: 20A, 120V, 60Hz
Dimming: Yes, TRIAC/ELV
Power factor: ≥0.97
Colour: BK
Certification: cETLus
Energy Star: Yes
LM80: Yes
Projected life: 50,000 hrs
Warranty: 5 Years

Applications, compatibility and documentation
Think kitchen islands, galley counters, dining nooks, basement stairs and gallery walls at home; boutiques, barber shops, cafés, clinics and small offices on the commercial side, where commercial LED track lighting has to be re-aimed every time the display changes. Because dimming is TRIAC/ELV, pair the run with a compatible dimmer for evening levels. The Liteline track system is compatible with all Liteline track accessories and connectors, so end caps, joiners and extra Delta heads can be added as the layout grows. In the same family, see the Track kit TK6006-BK-KIT for a 6' black run, the Track kit TK6006-WH-KIT in white, or the bare 4' rails LL Series TK6004-BK and LL Series TK6004-WH when you already own your heads. The full TK6004-BK-KIT2 spec sheet, with technical drawings and dimensions, is in the Documentation tab for your electrician or inspector.
