TRACK KIT - TK6002-BK-KIT2

Name: TRACK KIT - TK6002-BK-KIT2
Brand: LITELINE
SKU: TK6002-BK-KIT2
Price: 208.97 CAD
Availability: InStock

SKU: TK6002-BK-KIT2

Brand: LITELINE

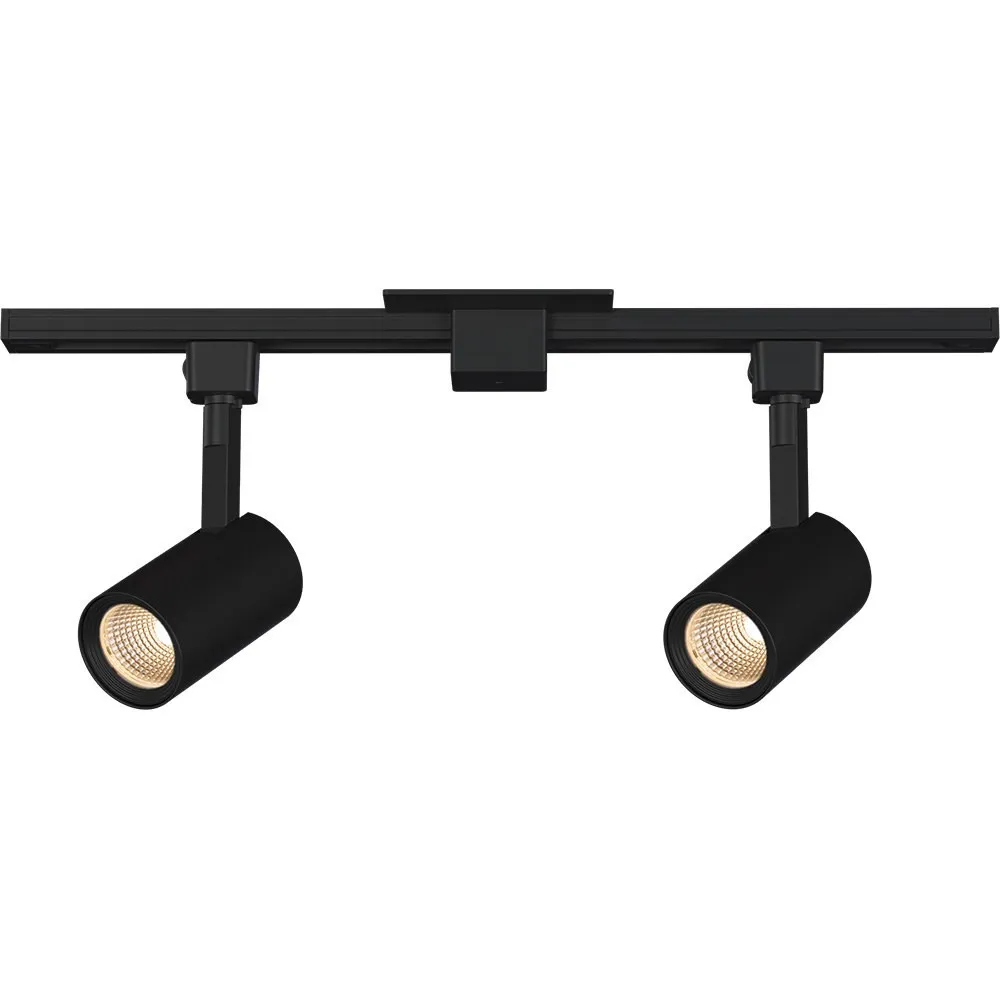

Everything you need for a sharp, modern track lighting run, in one box. The Liteline TRACK KIT - TK6002-BK-KIT2 is a complete 2-foot rail lighting system that ships ready to install: an extruded aluminum single-circuit track, a twist-and-lock center feed, and 2 × DA2012 Delta LED track light heads in black. Whether you call it a track light bar, a light rail, a spot rail or simply track lighting, this kit answers the same need — aimable, directional light exactly where you want it, without cutting into your ceiling. It's the fast way to wash an accent wall, light a kitchen island, brighten a work counter or put the spotlight on shelving and artwork.

Each Delta head carries a 12W LED module with a tight 38° beam angle and delivers up to 1010 lumens, up to 84 lumens per watt, with a rich 90 CRI that keeps wood, paint, fabric and food looking true. A built-in CCT selectable switch gives you five colour temperatures — 2700 K (up to 890 lumens), 3000 K (up to 940), 3500 K (up to 990), 4000 K (up to 1010) and 5000 K (up to 1005) — so you can fine-tune the mood on site instead of reordering. The heads rotate 358° and tilt 90° with a secure lock on the angle position, and they're dimmable on TRIAC/ELV controls. The system runs on 120V, 60Hz, rated 20A per branch circuit, with a power factor ≥0.97, a projected life of 50,000 hours, Energy Star and LM80 listings, cETLus certification, and a 5-year warranty. Track length: 24" (610 mm). Approved for dry / indoor locations.

This kit shines in condos, basements, hallways, home offices, retail boutiques, cafés, salons and small showrooms across Canada — anywhere you need commercial LED track lighting that looks intentional. The Liteline track system is compatible with all Liteline track accessories and connectors, so you can grow the run later. Need more coverage? Step up to the 6-foot versions: Track kit TK6006-BK-KIT in black or Track kit TK6006-WH-KIT in white, or match a lighter ceiling with the Track kit TK6002-WH-KIT2. Order yours and light your space tonight.

What's in the kit
The TK6002-BK-KIT2 bundles the three pieces a track lighting installation actually needs: the TK60 extruded track in a 24" (610 mm) length, a CF6108 center feed, and 2 × DA2012 Delta LED track heads, all in black. The KIT2 suffix means the components ship in 1 kit per box, so a contractor can grab one carton per room and go. Because the kit is complete out of the gate, there's no hunting for a connector or a canopy mid-install — a real time-saver on renovation days.

Track and feed construction
The TK60 extrusion uses 1⁄32" die-cast aluminum construction with 3⁄64" PVC insulators holding 12-gauge flat conductor wiring, and a polarity groove on the face of the track indicates the location of the grounding conductor. This is a 1-circuit track for 120V: single hot and neutral conductors rated 20 amps per branch circuit, with copper electrical conductors concealed in an insulating thermoplastic low-profile cross-section. The CF6108 center feed carries solid 12-gauge conductors, and its easy twist-and-lock design with floating mount lets it be installed anywhere along the track — complete with canopy cover and mounting hardware. Track lighting is a single-circuit electrical distribution system designed to supply power to lighting units in flexible ways.

Light quality and aiming
Each DA2012 Delta fixture is an aluminum designer track fixture with an up to 12 watt LED module that provides a directional light source for specific aiming and assures a secure lock on the angle position. The 38° beam angle is ideal for accenting, while 358° rotation and 90° tilt let you re-aim a display without touching the wiring. The CCT selectable switch covers 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, and a CRI of 90 with a TM-30 Annex E rating of P2V-/F2 means colours stay faithful — a serious advantage in retail, galleries and kitchens.

Technical specifications
SKU: TK6002-BK-KIT2
Application: Track
Kit contents: 2' extrusion, center feed, 2 × DA2012 track fixtures, black
Track length: 24" (610 mm)
Approved location: Dry / Indoor
Wattage: 12W
Lumens: up to 1010
Lumens per watt: up to 84
CCT: 2700 K - 3000 K - 3500 K - 4000 K - 5000 K
CRI: 90
Beam angle: 38°
Rotation / Tilt: 358° / 90°
Dimming: Yes, TRIAC/ELV
Primary voltage: 120
System electrical rating: 20A, 120V, 60Hz
Power factor: ≥0.97
Projected life: 50,000 hrs
Energy Star: Yes
LM80: Yes
Certification: cETLus
Warranty: 5 Years

Compatibility, applications and documentation
The Liteline track system is compatible with all Liteline track accessories and connectors, so a 2-foot run can later become an L, a T or a longer straight line as the space evolves. For bigger rooms, the same family offers Track kit TK6006-BK-KIT and Track kit TK6006-WH-KIT with 6' extrusion, center feed and 5 × DA2012 heads; the Track kit TK6002-WH-KIT2 is the identical 2-foot kit in white for pale ceilings. Think of it over a peninsula in a condo kitchen, above a jewellery case, on a boutique feature wall, in a basement gallery or over a desk in a home office — a dimmable 20A, 120V circuit and a TRIAC or ELV dimmer are all the electrical prep you need. The full technical PDF (TK6002-BK-KIT2 Spec Sheet), with dimensional drawings and the ordering guide, is available in the Documentation tab.
