LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6004-BN

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6004-BN
Brand: LITELINE
SKU: TK6004-BN
Price: 43.97 CAD
Availability: InStock

SKU: TK6004-BN

Brand: LITELINE

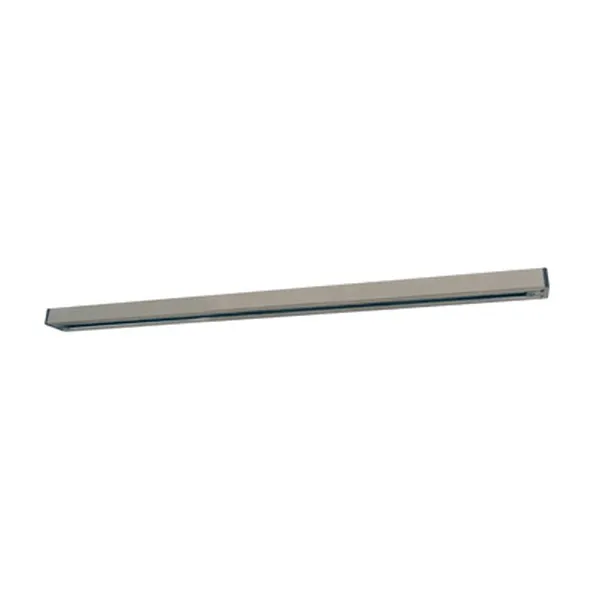

Give your kitchen, your gallery wall or your shop display the kind of aim-anywhere lighting that only a real track can deliver. The TK6004-BN is a 4-ft brushed nickel track rail from the Liteline LL Series, the single-circuit extruded aluminum section people usually call a track lighting rail, a 4ft track lighting bar, or simply the rail that carries track light heads. Slide your heads anywhere along it, point them where the light is actually needed, and change the layout later without touching the ceiling again. It's the backbone of any track lighting run in a condo, a renovated bungalow, a boutique or a small office.

Built from die cast aluminum with PVC insulators holding 12 gauge flat conductor wiring, this section measures 48" (1219mm) long with a compact cross-section of 1 3⁄8" (35mm) wide by ¾" (21mm) high, so it stays discreet on a ceiling or a beam. The extrusion is 1⁄32" thick, the insulators are 3⁄64" PVC, and a polarity groove on the face of the track shows exactly where the grounding conductor sits — a small detail that makes installation faster and safer. The 1-circuit track is rated 20A, 120V, 60Hz, with single hot and neutral copper conductors rated for 20 amps per branch circuit, concealed in a low profile insulating thermoplastic cross-section. The brushed nickel finish blends beautifully with stainless appliances and modern hardware.

This rail shines over kitchen islands and countertops, along hallways, above retail shelving, in home offices, basements and finished garages — anywhere a Canadian renovation needs flexible, aimable light without cutting a dozen holes in the ceiling. Sections join together with any compatible Liteline track connector: the IC6101 I-connector at 180°, the LC6102 L-connector at 90°, the TC6103 T-connector, the XC6104 X-connector, or the FC6105 flexible connector for varying angles. Power it with the LE6110 live-end, the LE6111 live-end with canopy, the WE6110 wired-end, the CA6106 live-end conduit feed or the CF6108 center feed, finish the run with a TK6000-END end cap, and suspend it with the TDR62, RODF62 or RODR62 stem rods. Prefer another look? The same rail comes in black TK6004-BK, silver TK6004-SL and white TK6004-WH. Plan your run and order your rail today.

Solid extruded construction
The LL Series track is an extruded aluminum track designed for light residential applications and small commercial projects. The die cast aluminum extrusion is 1⁄32" thick and holds 3⁄64" PVC insulators, which in turn carry the 12 gauge flat conductor wiring. Those flat, solid integral conductors are what make a track rail feel rigid and reliable instead of flimsy — and the polarity groove machined on the face of the track tells you at a glance where the grounding conductor is located, so connectors and heads always go in the right way. The brushed nickel finish of the TK6004-BN keeps the profile understated against a white or light ceiling.

Electrical and safety details
This is a single circuit track, available for 120V applications, with a system electrical rating of 20A, 120V, 60Hz. The single hot and neutral copper conductors are rated for 20 amps per branch circuit and are concealed inside a low profile insulating thermoplastic rack cross-section. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways: one feed, one circuit, and as many heads as your load calculation allows. Power should always be off at the panel before installing or servicing, and final connection should follow local electrical code — when in doubt, call your electrician.

Technical specifications
Model: TK6004-BN
Series: LL Series (TK60 Track Sections)
Length: 48" (1219mm)
Width: 1 3⁄8" (35mm)
Height: ¾" (21mm)
Circuit: 1-circuit track
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat copper, single hot and neutral, 20 amps per branch circuit
Extrusion: 1⁄32" die cast aluminum with 3⁄64" PVC insulators
Finish: BN – Brushed Nickel

Connectors, feeds and accessories
The Liteline track system is compatible with all Liteline track accessories and connectors, so you can build almost any shape. Join two sections in a straight line with the IC6101 I-connector, turn a corner with the LC6102 L-connector, branch out with the TC6103 T-connector or the XC6104 X-connector, and follow an angled wall or a sloped area with the FC6105 flexible connector. For power, choose the LE6110 live-end, the LE6111 live-end with canopy, the WE6110 wired-end that feeds from a receptacle, the CA6106 live-end conduit feed with 7⁄8" knockout for top or end feed, or the CF6108 center feed, which draws power from a junction box anywhere along the run and includes a canopy cover. Close the open end with a TK6000-END end cap. To drop the track below a high or sloped ceiling, use the TDR62 hollow stem rod kit with ceiling canopy, mounting brackets and hardware, the RODR62 rod to suspend track from the ceiling, or the RODF62 rod for track fixtures. Accessories are sold separately.

Applications, options and documentation
A 4-ft section is the sweet spot for a kitchen island, a dining nook, a reading corner, an art wall, a salon station or a display of merchandise near the front window of a small store. Run two sections with an I-connector for a 8-ft sweep down a hallway, or build an L over a corner counter. Matching finishes are available in black TK6004-BK, silver TK6004-SL and white TK6004-WH, and if you'd rather start with a complete package, look at the Track kit TK6004-WH-KIT2 or the Track kit TK6004-BK-KIT2. The complete TK6004-BN spec sheet, with technical drawings, the ordering guide and the full accessory list, is available in the Documentation tab of this page.
