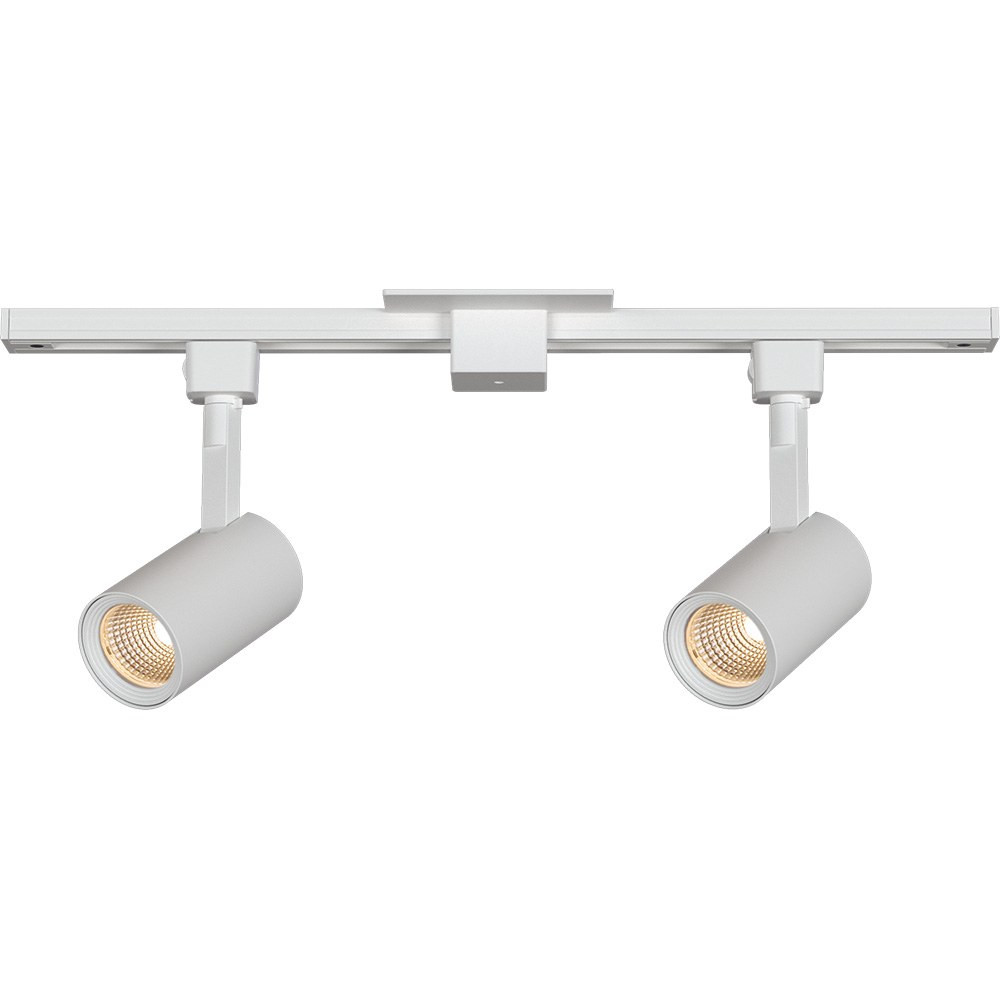

TRACK KIT - TK6002-WH-KIT2

Name: TRACK KIT - TK6002-WH-KIT2
Brand: LITELINE
SKU: TK6002-WH-KIT2
Price: 208.97 CAD
Availability: InStock

SKU: TK6002-WH-KIT2

Brand: LITELINE

Everything you need to light a room the smart way, in one box: the TRACK KIT TK6002-WH-KIT2 from Liteline is a complete LED track lighting system in white, ready to mount and aim the day it arrives. People search for it as a track light kit, a rail lighting set, a 2-foot track bar with LED track light heads, or simply "spots on a rail" — it is all of those. The kit pairs a 2' (610 mm) extruded aluminum single-circuit track with a CF6108 center feed and two DA2012 Delta track fixtures, so you get the rail, the power feed and the directional heads without hunting for parts. Use it to wash a kitchen island with light, highlight artwork and open shelving, brighten a home office or retail display, or replace a tired flush-mount that never put light where you actually needed it.

Each DA2012 Delta head is an aluminum designer fixture with an up to 12 watt LED module delivering up to 1010 lumens and up to 84 lumens per watt, with a tight, useful 38° beam angle. A CCT selectable switch on the head gives you five colour temperatures — 2700 K (up to 890 lm), 3000 K (up to 940 lm), 3500 K (up to 990 lm), 4000 K (up to 1010 lm) and 5000 K (up to 1005 lm) — so one kit suits a warm living room or a crisp workspace. Colour rendering is a faithful 90 CRI, and the heads rotate 358° and tilt 90° for precise aiming with a secure lock. The system is rated 20A, 120V, 60Hz, dimmable on TRIAC/ELV dimmers, with a power factor ≥0.97, TM-30 Annex E P2V-/F2, Energy Star and LM80 qualified, cETLus certified for dry/indoor locations, a projected life of 50,000 hours and a 5-year warranty. The track is 1⁄32" die-cast aluminum with 3⁄64" PVC insulators holding 12-gauge flat conductor wiring and a polarity groove on the face.

This white kit disappears against a white ceiling in condos, kitchens, hallways, basements and bedrooms, and it works just as hard in salons, boutiques, cafés, galleries and small offices across Canada — anywhere you want adjustable light instead of one fixed glare spot. The easy twist-and-lock floating center feed installs anywhere along the rail, so you can centre it on an existing ceiling box. Liteline track is compatible with all Liteline track accessories and connectors, and the SKU TK6002-WH-KIT2 ships in 1 kit per box. Need more coverage in a longer room? Step up to the Track kit TK6006-WH-KIT or its black twin, the Track kit TK6006-BK-KIT. Order yours and light the room exactly the way you picture it.

A complete track system, not a pile of parts
Track kits are a ready solution for various track applications, providing every component needed for a quick installation. The TK6002-WH-KIT2 includes a 2' (610 mm) TK60 extruded aluminum single-circuit track, one CF6108 center feed and two DA2012 Delta track heads with CCT selectable switch, all in white. The extrusion is 1⁄32" die-cast aluminum with 3⁄64" PVC insulators holding 12-gauge flat conductor wiring, and a polarity groove runs along the face of the track to indicate the location of the grounding conductor — a small detail that makes wiring faster and safer. Copper electrical conductors are concealed in an insulating thermoplastic low-profile cross-section, so the rail stays discreet against the ceiling.

Light quality you can actually see
Each DA2012 Delta is an aluminum designer track fixture built around an up to 12 watt LED module. It gives a directional light source for specific aiming and assures a secure lock on the angle position, with 358° rotation and 90° tilt. The 38° beam angle is tight enough to accent a painting or a countertop, wide enough to cover a work zone. The onboard CCT selectable switch offers five colour temperatures with their own output: 2700 K up to 890 lumens, 3000 K up to 940, 3500 K up to 990, 4000 K up to 1010 and 5000 K up to 1005 lumens per head. With 90 CRI and a TM-30 Annex E rating of P2V-/F2, skin tones, wood grain and merchandise colours read true instead of washed out.

Technical specifications
SKU: TK6002-WH-KIT2
Brand: Liteline
Kit contents: 2' Extrusion, center feed, 2 × DA2012 track fixtures, white
Track length: 24" (610 mm)
Application: Track
Approved location: Dry / Indoor
Wattage: 12W
Lumens: Up to 1010
Lumens per watt: Up to 84
CRI: 90
CCT: 2700 K - 3000 K - 3500 K - 4000 K - 5000 K
Beam angle: 38°
Primary voltage: 120
System electrical rating: 20A, 120V, 60Hz
Dimming: Yes, TRIAC/ELV
Power factor: ≥0.97
Rotation / Tilt: 358° / 90°
Certification: cETLus
Energy Star: Yes
LM80: Yes
Projected life: 50,000 hrs
Warranty: 5 Years
Colour: WH
Kit style: KIT2 — ships in 1 kit per box

Wiring, installation and compatibility
Track lighting is a single-circuit electrical distribution system designed to supply power to lighting units in flexible ways. Single hot and neutral conductors are rated for 20 Amps per branch circuit at 120V, 60Hz. The CF6108 center feed has a low-profile aesthetic design with solid 12-gauge conductors; its easy twist-and-lock feed and floating design let it be installed anywhere along the track, and it comes complete with canopy cover and mounting hardware — handy when your junction box is off-centre. The heads are dimmable on TRIAC/ELV dimmers, so pair them with a compatible wall dimmer for mood control in a dining room or a lounge. The Liteline track system is compatible with all Liteline track accessories and connectors, which means you can extend or reconfigure later instead of starting over.

Where it works and what to read next
In homes, this white 2-foot kit is a favourite over kitchen islands, in entryways, walk-in closets, home offices and finished basements; in business, it lights boutique displays, café counters, salon stations, gallery walls and reception areas. Because the location rating is dry/indoor, keep it out of unheated garages, showers and exposed exterior soffits. If you prefer the bare rail to build your own configuration, look at the LL Series TK6002-WH or the LL Series TK6002-SL; for a darker ceiling, the matching Track kit TK6002-BK-KIT2 is the same kit in black, and longer rooms are covered by the Track kit TK6006-WH-KIT. The full TK6002-WH-KIT2 spec sheet, with technical drawings and dimensions, is available in the Documentation tab — worth a look before your electrician arrives.
