TRACK KIT - TK6006-WH-KIT

Name: TRACK KIT - TK6006-WH-KIT
Brand: LITELINE
SKU: TK6006-WH-KIT
Price: 435.97 CAD
Availability: InStock

SKU: TK6006-WH-KIT

Brand: LITELINE

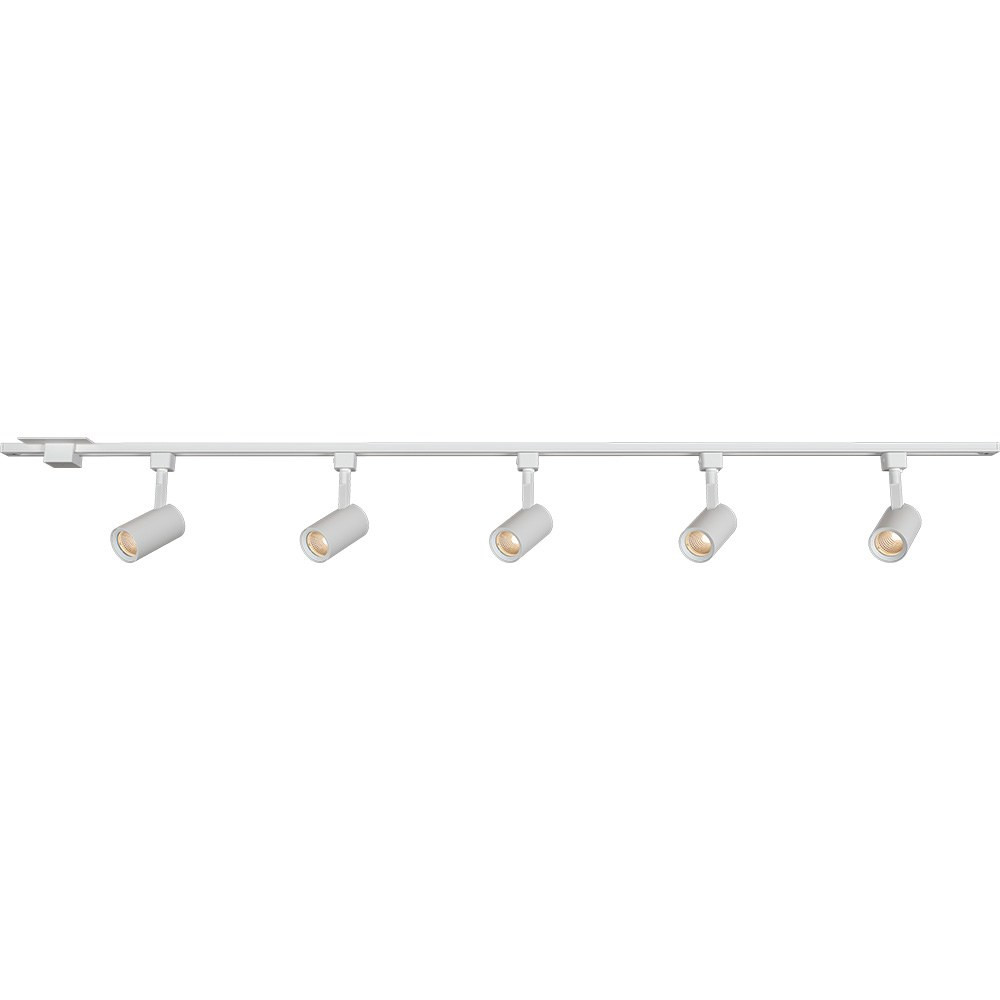

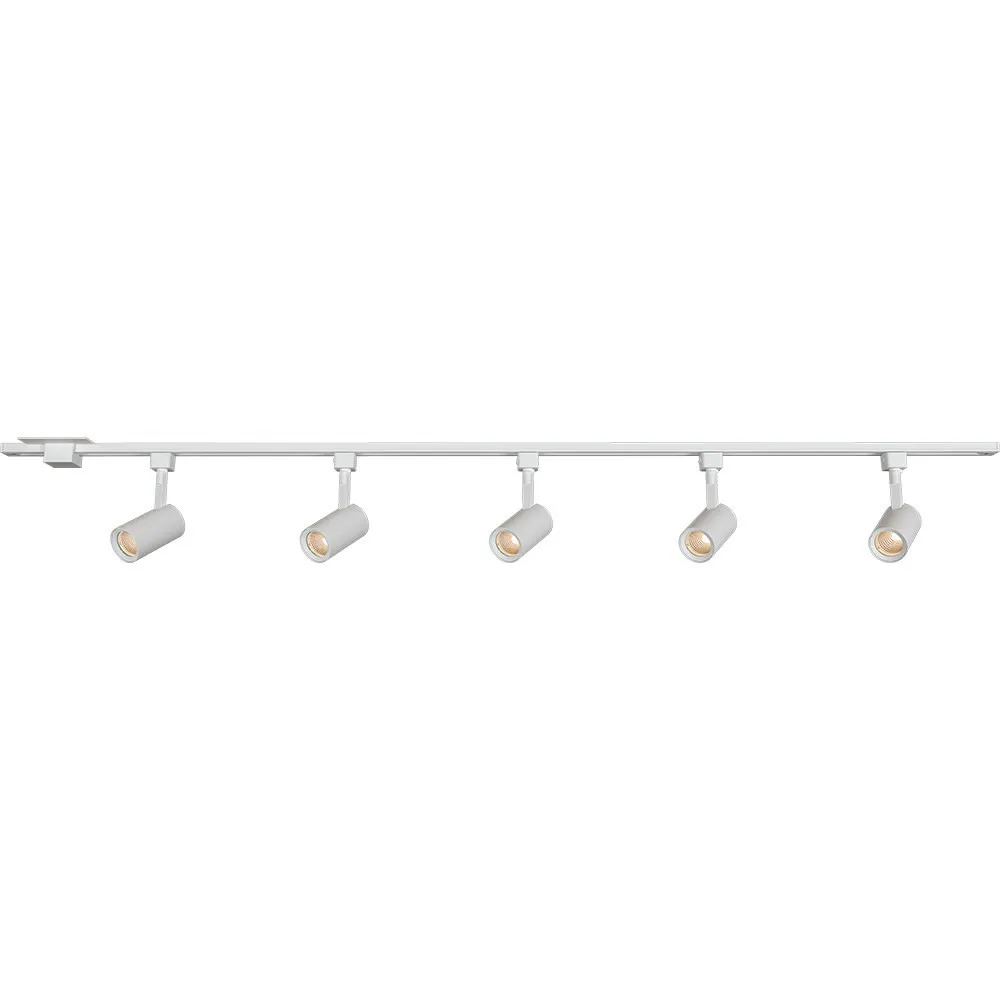

Everything you need for a complete track lighting run, in one box. The Liteline TRACK KIT - TK6006-WH-KIT pairs a 6' white extruded aluminum track rail with a center feed and five Delta LED track light heads, so you go from bare ceiling to perfectly aimed light in a single afternoon. People shop for this as a track light kit, a rail d'éclairage, a 6 ft track lighting set or simply "track lighting heads and rail together" — it is all here: the TK60 1-circuit extrusion, the CF6108 center feed with canopy cover and mounting hardware, and 5 × DA2012 track fixtures with a CCT selectable switch. Ideal for kitchens, retail displays, galleries, offices and any room where you want to steer light exactly where it matters instead of settling for one flat ceiling fixture.

The TK60 track is built from 1⁄32" die cast aluminum with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove on the face marks the grounding conductor for safe, confident wiring. The single-circuit system is rated 20A, 120V, 60Hz, with copper conductors concealed in a low profile insulating thermoplastic cross-section. Each DA2012 head is an aluminum designer fixture with an LED module up to 12 watt, a 38° beam angle, 358° rotation and 90° tilt that locks securely at the chosen angle. The selectable switch gives you five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — delivering up to 890, 940, 990, 1010 and 1005 lumens per head respectively, up to 84 lumens per watt, with a rich 90 CRI. Dimming is TRIAC/ELV, power factor is ≥0.97, and the kit is cETLus certified, Energy Star, LM80 tested, rated for dry/indoor locations, with a projected life of 50,000 hrs and a 5 year warranty.

This 72" (1829mm) white rail disappears against a white ceiling in a Montréal condo kitchen, a Toronto loft or a basement renovation, and works just as hard over a boutique counter, a café, a salon or a small office. Contractors love that the center feed twists and locks anywhere along the track, and the Liteline track system is compatible with all Liteline track accessories and connectors, so you can extend, corner or add heads later. Prefer a darker look? See the matching Track kit TK6006-BK-KIT, or start with the bare rail LL Series track TK6006-WH. Order your kit and light the room your way.

One box, one complete track system
Track kits exist to remove the guesswork. Instead of ordering a rail here, a feed there and hoping the heads match, the TK6006-WH-KIT ships the 6' TK60 extrusion, the CF6108 center feed and five DA2012 Delta heads together, all in white. That is a real time-saver on a job site and a relief for a homeowner doing a first track lighting install. The track itself is extruded aluminum: 1⁄32" die cast construction with 3⁄64" PVC insulators holding 12 gauge flat conductor wiring, and a polarity groove moulded into the face of the track so you always know where the grounding conductor sits.

Electrical and single-circuit design
This is a 1-circuit track for 120V, with single hot and neutral conductors rated for 20 Amps per branch circuit. Copper electrical conductors are concealed inside a low profile insulating thermoplastic cross-section, keeping the rail slim against the ceiling. The system electrical rating is 20A, 120V, 60Hz. The CF6108 center feed uses solid 12-gauge conductors with an easy twist and lock action; its floating design lets you install it anywhere along the run rather than only at one end, and it arrives complete with canopy cover and mounting hardware. Always confirm the branch circuit load and follow local Canadian electrical code — a licensed electrician is the safest route for any new ceiling box.

Light quality and the CCT selectable heads
Each DA2012 Delta fixture is an aluminum designer LED track head with a module up to 12 watt, giving a directional source for specific aiming and a secure lock on the angle position. A CCT selectable switch on the head lets you pick from five colour temperatures: 2700 K for a warm living-room glow, 3000 K and 3500 K for kitchens and hallways, 4000 K for workspaces and 5000 K for crisp task and display light. Output follows the setting — up to 890 lumens at 2700 K, 940 at 3000 K, 990 at 3500 K, 1010 at 4000 K and 1005 at 5000 K — with a 38° beam angle that concentrates light on artwork, counters or merchandise. A 90 CRI keeps skin tones, wood grain and product colours honest, and the TM-30 Annex E rating is P2V-/F2.

Technical specifications
SKU: TK6006-WH-KIT
Brand: Liteline
Kit contents: 6' extrusion, center feed, 5 × DA2012 track fixtures, white
Track length: 72" (1829mm)
Application: Track
Approved location: Dry / Indoor
Wattage: 12W
Lumens: up to 1010
Lumens per watt: up to 84
CCT: 2700 K - 3000 K - 3500 K - 4000 K - 5000 K
CRI: 90
Beam angle: 38°
Rotation / Tilt: 358° / 90°
Primary voltage: 120
System rating: 20A, 120V, 60Hz
Dimming: Yes, TRIAC/ELV
Power factor: ≥0.97
Certification: cETLus
Energy Star: Yes
LM80: Yes
Projected life: 50,000 hrs
Warranty: 5 Years
Colour: WH (white)

Applications, compatibility and documentation
Five aimable heads on a 72" rail cover a kitchen island and its counters, a dining area, a hallway gallery wall, a retail feature wall, a café counter or a small office boardroom — anywhere a single fixture leaves dark corners. Because the Liteline track system is compatible with all Liteline track accessories and connectors, you can plan a longer run, turn a corner or add sections as the space evolves. The kit is also offered in black as the Track kit TK6006-BK-KIT, and the same 6' rail is sold on its own in white, black, brushed nickel and silver for matching a longer installation. The full technical PDF (TK6006-WH-KIT Spec Sheet), with dimensions, the ordering guide and technical drawings, is in the Documentation tab.
