ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK02-BN

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK02-BN
Brand: LITELINE
SKU: ATK02-BN
Price: 32.97 CAD
Availability: InStock

SKU: ATK02-BN

Brand: LITELINE

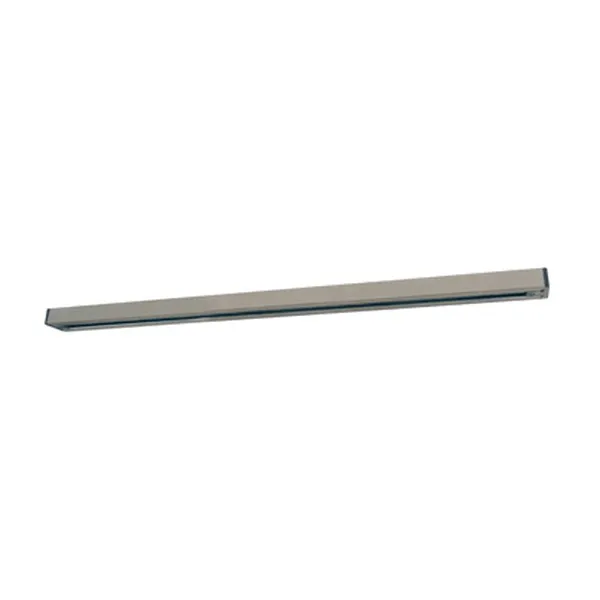

Give your lighting the freedom to move exactly where you need it. The ATK02-BN is a 2-foot single circuit track lighting section from Liteline's ATK series, an extruded aluminum rail in a warm Brushed Nickel finish that serves as the backbone of any A-Line style track light system. People look for it under many names — track rail, track bar, lighting track, 2 ft track section, or simply the track that track lighting heads clip into — and it all points to the same thing: a clean, low-profile channel that carries power along the ceiling so you can add, slide and re-aim your fixtures whenever the room changes.

Built from 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, this track is made to be handled on the job and to stay straight once it's up. A polarity groove runs along the face of the track to show exactly where the grounding conductor sits, so orientation is never a guessing game. The single circuit power distribution system uses single hot and neutral conductors rated for a maximum capacity of 20 Amps — 2400 watts per circuit at 120V — with copper electrical conductors concealed inside the thermoplastic, low-profile track section. Length is 20 1/8" (511mm) excluding end caps, with a 5/8" (16mm) by 1 3/8" (35mm) profile that tucks discreetly against the ceiling. It is cULus listed and backed by a 5 year warranty. Surface mounting is done with the supplied mounting hardware, and suspended mounting is available with accessories ordered separately.

This short 2' run is perfect for a kitchen island, a hallway of artwork, a home office, a retail display wall, a café counter, a salon station or a small boutique — anywhere you want adjustable commercial lighting without committing to a long rail. The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, including heads such as the 8.5W LED track head ATF7509-DTW-38-BK and the 8.5W LED track head ATF7509-DTW-38-WH. Need a longer run or a different look? See the ATK04-BN 4-foot track or the same 2' section in black. Plan your run and start building your track today.

Solid extrusion, clean lines
The ATK series is an extruded aluminum track designed for use with A-Line track fixtures, and it shows in the details. The body is constructed of 0.06" extruded aluminum, with a PVC bus bar support holding 12 gauge round bus bars for a firm, stable electrical path from one end of the section to the other. A polarity groove is located on the face of the track to indicate the location of the grounding conductor — a small feature that saves real time when you are joining sections or dropping in a live end feed. The Brushed Nickel finish suits stainless appliances, modern trims and warm neutral interiors, and the slim 5/8" (16mm) by 1 3/8" (35mm) silhouette keeps the ceiling looking uncluttered.

Electrical and safety
This is a single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps, which works out to 2400 watts per circuit at 120V — plenty of headroom for a full line of LED track heads on one run. Copper electrical conductors are concealed in the thermoplastic, low-profile track section, keeping live parts protected. The product is cULus listed, and Liteline backs it with a 5 year warranty.

Technical specifications
SKU: ATK02-BN
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 2'
Actual length (excluding end caps): 20 1/8" (511mm)
Profile: 5/8" (16mm) x 1 3/8" (35mm)
Extrusion: 0.06" extruded aluminum
Bus bars: 12 gauge round, on PVC bus bar support
Voltage: 120V
Capacity: 20 Amps, 2400 watts per circuit
Finish: BN — Brushed Nickel
Listing: cULus listed
Warranty: 5 Years

Installation and suspension
The track is surface mounted using the supplied mounting hardware, so a single 2' section goes up quickly over a counter or a display. Suspended mounting is available with accessories ordered separately: the ATKA250 4.75" sloped ceiling canopy kit for track down-rods 2"-96", the RODR 12" hollow stem rod, the RODF hollow suspension rod kit, the ATKXW track suspension rod system, the ATKM420 suspension kit with 180" aircraft cable, or the ATKM421 universal track suspension kit with 250" AC. For power and layout, the family includes the ATKP09 single circuit live end power feed, the ATKP11 live end power feed with canopy cover, the ATKP10 wired end power feed with 15' plug-in cord, the ATKP02 'L' and 'I' power feed connector, the ATKP03 'T' power feed connector, the ATKP04-1C 'X' power feed connector, the ATKC01 'I' connector and the ATKC05 flexible connector. Current limiters such as the ATKPCL-06-1C, ATKPCL-09-1C and ATKPCL-11-1C offer 1~14 amp options. Note that the 12-foot option of this series is not available in the US; two sections and a joiner are recommended for a 12-foot run.

Compatibility, uses and documentation
The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors — including the APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, FOCUS (ATF8010), DINE (T-LEDDNG) and Flight heads — which makes it easy to mix beam angles above an island, a boardroom table or a shelving bay. Pair it with the 8.5W LED track head ATF7509-DTW-38-WH for a bright white ceiling, or match other rooms with the ATK02-SL silver track and the ATK02-WH white track. The full technical PDF (ATK02-BN Spec Sheet) is in the Documentation tab with the dimensional drawings, the ordering guide and the complete accessory list for your electrician or contractor.
