LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6002-BN

Name: LL SERIES FOR LIGHT RESIDENTIAL APPLICATIONS - TK6002-BN
Brand: LITELINE
SKU: TK6002-BN
Price: 29.97 CAD
Availability: InStock

SKU: TK6002-BN

Brand: LITELINE

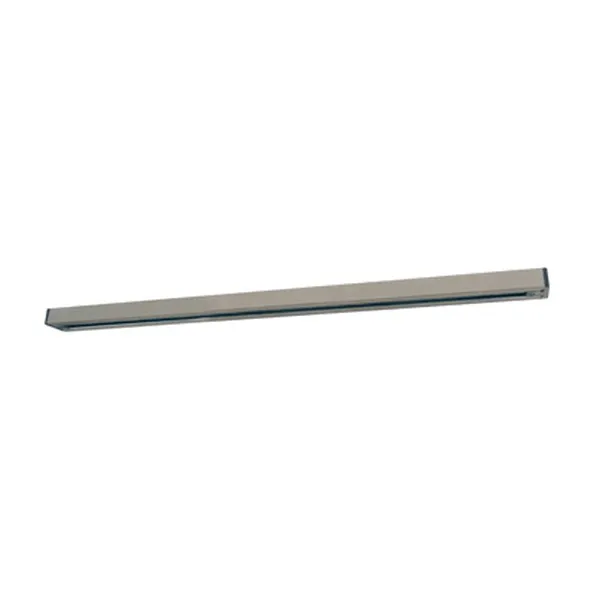

Give your room the freedom to point light exactly where you want it. The TK6002-BN is a 2-foot track rail from the LITELINE LL Series, the backbone of any track lighting system for homes, condos, shops and studios. People look for it under many names — track section, lighting rail, track bar, mounting rail for track light heads — and they all describe the same thing: an extruded aluminum channel that carries power along its length so you can slide, aim and re-aim your fixtures whenever the furniture moves or the artwork changes. Mount it on a ceiling or a wall, snap in your heads, and you have accent lighting over a kitchen island, a gallery wall, a retail display or a home office desk, all from one junction box.

This is a single-circuit 120V track rated 20A, 60Hz, with flat, solid integral conductors — 12 gauge flat conductor wiring held by PVC insulators inside the extrusion, so the copper conductors stay concealed in a low-profile cross-section. The die cast aluminum body measures 24" (610 mm) long with a slim 1 3⁄8" (35 mm) width and only ¾" (21 mm) of projection, which keeps the run discreet on a ceiling. A polarity groove runs along the face of the track to show you exactly where the grounding conductor sits, making installation faster and safer. The brushed nickel finish (suffix BN in the ordering guide) brings a soft, warm-grey metallic sheen that blends with stainless appliances, chrome hardware and modern trim.

Two feet is the perfect length for a short accent run, a hallway, a nook above a bar or a compact retail display, and sections can be joined together with the matching connectors to build L, T, X or angled layouts across a whole living room or boutique. It works with all LITELINE track accessories and connectors: live-ends, wired-ends, centre feeds, end caps, I, L, T and X connectors, flexible connectors and suspension rod kits. Prefer another finish for your Canadian reno? The same 2-ft section is available in LL Series track TK6002-BK, LL Series track TK6002-SL and LL Series track TK6002-WH. Plan your run, add your heads and light the room your way.

Built to last, built to stay discreet
The LL Series rail is an extruded aluminum track made from 1⁄32" die cast aluminum, with 3⁄64" PVC insulators that hold the flat conductor wiring securely in place. That sandwich of metal and insulation is what lets a track lighting rail stay slim while carrying real current: the copper electrical conductors are concealed inside an insulating thermoplastic low-profile cross-section, so all you see on the ceiling is a clean line in brushed nickel. The polarity groove moulded into the face of the track tells the installer at a glance where the grounding conductor is located, which removes the guesswork when you cut in a feed or add a second section.

Electrical and installation details
This is a 1-circuit track for 120V applications. The single hot and neutral conductors are rated for 20 Amps per branch circuit, and the system electrical rating is 20A, 120V, 60Hz. Track lighting is a single circuit electrical distribution system designed to supply power to lighting units in flexible ways — in other words, one feed point powers every head you hang on the run. Power can enter at the end with a live-end (LE6110), with a live-end and canopy from a junction box (LE6111), from a receptacle with a wired-end (WE6110), anywhere along the run with the CF6108 centre feed and its canopy cover, or through the CA6106 live-end conduit feed with its 7⁄8" knockout for top or end feed. Finish the open end with a TK6000-END end cap — one of the most searched items in any track lighting project.

Technical specifications
SKU: TK6002-BN
Brand: LITELINE
Series: LL Series track sections (TK60)
Length: 24" (610 mm)
Width: 1 3⁄8" (35 mm)
Height: ¾" (21 mm)
Finish: BN — Brushed Nickel
Circuits: 1-circuit
System electrical rating: 20A, 120V, 60Hz
Conductors: 12 gauge flat conductor wiring, copper, concealed
Construction: 1⁄32" die cast aluminum extrusion with 3⁄64" PVC insulators

Shaping the run: connectors and suspension
Sections join together using any of the compatible track connectors, and the LITELINE track system is compatible with all LITELINE track accessories and connectors. Use the IC6101 I-connector to continue straight at 180°, the LC6102 L-connector to turn a corner at 90°, the TC6103 T-connector to feed three sections at 90°, the XC6104 X-connector for a four-way crossing, or the FC6105 flexible connector when two sections meet at an odd angle — handy in an older Montréal triplex where nothing is perfectly square. To drop the run below a high or sloped ceiling, the TDR62 hollow stem rod kit includes the ceiling canopy, mounting brackets and hardware; the RODR62 rod suspends the track from the ceiling and the RODF62 rod is for track fixtures. Other lengths of the same rail exist in the family — TK6004 at 48" (1219 mm), TK6006 at 72" (1829 mm), TK6008 at 96" (2438 mm) and TK6012 at 144" (3658 mm) — so long rooms can be built from a mix of sections.

Where it works and what's in the documents
Contractors use short 2-ft rails above kitchen islands and peninsulas, in entryways, over bathroom vanities in a dressing area, along a gallery wall of family photos, above a bar cart, or to light merchandise in a boutique, a café counter, a salon station or a small showroom. Because heads slide anywhere along the channel, a retail owner can re-merchandise a display in minutes without calling an electrician. If you want the full package rather than the rail alone, the same 2-ft section is offered as a bundle in Track kit TK6002-WH-KIT2 and Track kit TK6002-BK-KIT2, and the matching finishes are the TK6002-BK track section and the TK6002-SL track section. The TK6002-BN spec sheet, with the technical drawings, ordering guide and full accessory list, is available in the Documentation tab. Note that accessories are sold separately.
