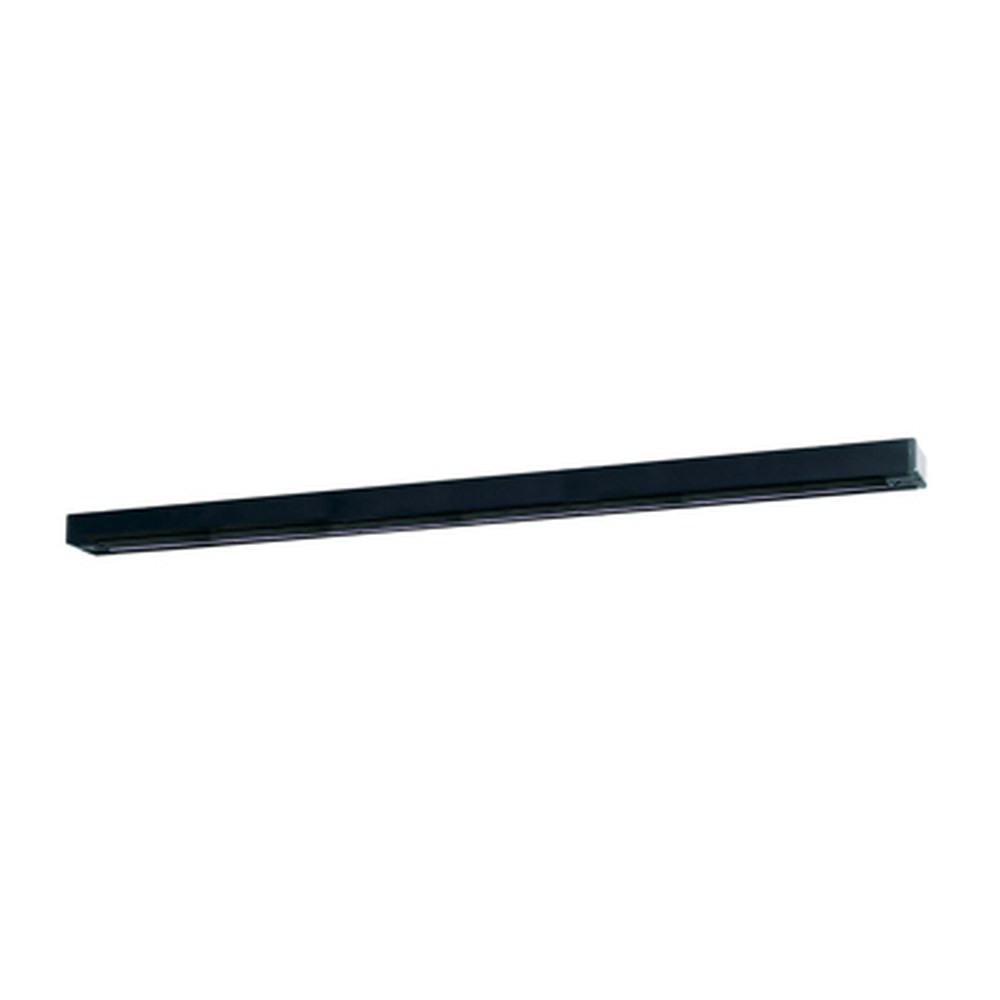

ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK02-SL

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK02-SL
Brand: LITELINE
SKU: ATK02-SL
Price: 32.97 CAD
Availability: InStock

SKU: ATK02-SL

Brand: LITELINE

Give your lighting the freedom to move exactly where you need it. The ATK02-SL from LITELINE is a 2-foot single circuit track lighting section in a clean Silver finish — the backbone of any A-Line track system. People search for it under many names: track rail, track lighting bar, track lighting heads rail, spotlight track, or simply a 2' track section. Whatever you call it, its job is simple and brilliant: carry power along the ceiling so you can clip on, slide and aim as many track heads as your layout calls for, then change your mind next season without touching a single wire. It's the go-to solution for kitchen islands, art walls, retail displays, offices and any space where fixed pot lights just don't offer enough flexibility.

This is extruded aluminum track built to last, constructed of 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove on the face of the track to show exactly where the grounding conductor sits. The single circuit power distribution system carries single hot and neutral conductors rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper electrical conductors concealed in a thermo-plastic, low-profile section — so you get serious capacity in a slim, discreet profile measuring 5⁄8" (16mm) by 1 3⁄8" (35mm). The ATK02 section measures 20 1⁄8" (511mm) excluding end caps. It is surface mounted using the supplied mounting hardware, and suspended mounting is available with accessories ordered separately. It is cULus listed and backed by a 5-year warranty.

The ATK series shines in condos and renovated bungalows across Canada, in boutiques and galleries, cafés, salons, offices and small commercial showrooms where merchandising changes often. It is compatible with all A-Line and Juno style track fixtures, accessories and connectors, so your LED track heads simply twist into place — pair it with the 8.5W LED track head ATF7509-DTW-38-BK or the 8.5W LED track head ATF7509-DTW-38-WH. Need a different look? The same 2' section comes in black, brushed nickel and white. Plan your run, add your connectors, and light your space your way.

Built from solid extruded aluminum
The ATK series is an extruded aluminum track designed for use with A-Line track fixtures, offered in 2', 4', 6', 8' and 12' nominal lengths — this model being the 2-foot version in Silver. The extrusion is constructed of 0.06" extruded aluminum with a PVC bus bar support that holds 12 gauge round bus bars, a build that keeps the conductors perfectly aligned so every head you clip in makes clean, reliable contact. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, which takes the guesswork out of orienting sections and connectors during installation. At 5⁄8" (16mm) tall and 1 3⁄8" (35mm) wide, the track rail stays visually discreet against a ceiling, letting the light — not the hardware — be the feature.

Electrical capacity and safety
This is a single circuit power distribution system designed to supply lighting units flexibly. Its single hot and neutral conductors are rated for a maximum capacity of 20 Amps, meaning 2400 watts per circuit at 120V — far more headroom than a full run of modern LED track heads will ever ask for, which is exactly why LED makes track lighting so attractive today. The copper electrical conductors are concealed inside a thermo-plastic, low-profile track section, keeping live parts safely tucked away. The product is cULus listed and comes with a 5-year warranty. If your project calls for limiting current on a run, single circuit current limiters with 1~14 amp options exist in the family: ATKPCL-06-1C, ATKPCL-09-1C and ATKPCL-11-1C.

Technical specifications
SKU: ATK02-SL
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 2'
Actual length: 20 1⁄8" (511mm), excluding end caps
Profile: 5⁄8" (16mm) x 1 3⁄8" (35mm)
Material: 0.06" extruded aluminum, PVC bus bar support, 12 gauge round bus bars
Colour: SL — Silver
Electrical: single circuit, 20 Amps maximum, 2400 watts per circuit at 120V
Mounting: surface mounted with supplied hardware; suspended mounting with accessories ordered separately
Labels: cULus listed
Warranty: 5 Years

Installation, connectors and suspension
The track is surface mounted using the supplied mounting hardware, so a straight run on a ceiling or a soffit goes up quickly. To shape your layout, the series offers a single circuit 'I' connector (ATKC01), a flexible connector (ATKC05), an 'L' and 'I' power feed connector (ATKP02), a 'T' power feed connector (ATKP03) and an 'X' power feed connector (ATKP04-1C). Power can come in through a live end power feed (ATKP09), a center feed (ATKP08), a live end power feed with canopy cover (ATKP11), a monopoint power feed (ATKP109), a wired end feed with 15' plug-in cord (ATKP10) or conduit feeds (ATKP06, ATKP06R). For suspended installs, look at the RODR 12" hollow stem rod, the RODF suspension rod kit, the ATKM420 track suspension kit with 180" aircraft cable, the ATKM421 universal kit with 250" AC, aircraft cable sets (A-BEAM-10AC-xx, A-BEAM-20AC-xx) and the ATKA250 4.75" sloped ceiling canopy kit for down-rods 2"-96". Note that the 12-foot option is not available in the US; an 8-foot plus a 4-foot section with a joiner achieves a 12-foot run.

Where it works and what to fit on it
Because the system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, you have an enormous choice of heads: APOLLO LED, SORA LED, ATLAS, DELTA, FLEX, TEARDROP, DINE (T-LEDDNG), FOCUS (ATF8010), Flight (ATF7607 and ATF7610) and models such as ATF7250, ATF7415, ATF7425, ATF7545, ATF7630 and ATF7509. For a ready-made pairing, the 8.5W LED track head ATF7509-DTW-38-BK drops right on. Picture it over a kitchen island in a condo, above a jewellery counter in a boutique, washing a gallery wall, or lighting a meeting room where the furniture moves. Need a longer run? Add the 4' ATK04-BN section or match the silver look with the white ATK02-WH. The full spec sheet is available in the Documentation tab of this page.
