LEDBAR - LEDBAR9-50K-90

Name: LEDBAR - LEDBAR9-50K-90
Brand: LITELINE
SKU: LEDBAR9-50K-90
Price: 46.97 CAD
Availability: InStock

SKU: LEDBAR9-50K-90

Brand: LITELINE

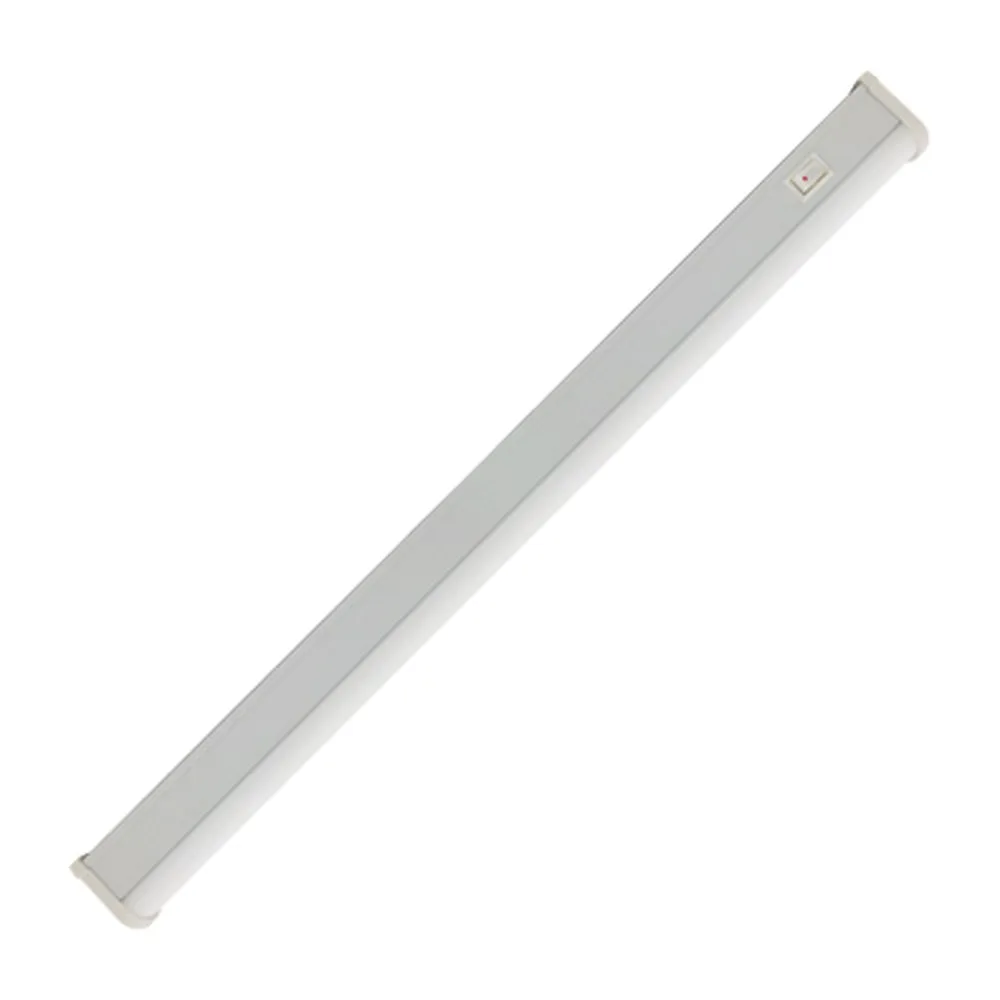

Some spaces just need a short, clean line of light — and that's exactly what the LITELINE LEDBAR9-50K-90 delivers. This 9" LED Fluorobar is a slim linear under cabinet light with an integrated LED strip, the kind of fixture people look for when they search "kitchen under cabinet lighting", "led puck lights", "display cabinet lighting" or "bathroom cabinet light" and quickly realize a continuous bar beats a row of pucks. Instead of scalloped hot spots, you get one even wash of light across the counter, the shelf or the backsplash. It slips under upper cabinets, inside a cove, along millwork, into a closet, behind a valance or inside a display case — anywhere you want light that works hard and stays out of sight.

Compact but serious: the 9" LEDBAR9-50K-90 measures 229 mm long, 33 mm wide (1-5/16") and 25 mm high (1"), draws just 3 W and puts out 240 lumens at 5000 K, a crisp daylight white that's perfect for task areas. Its 90+ CRI rating — available on the 9" model only — makes food, fabrics, wood grain and merchandise look true, not washed out. The frame is durable extruded aluminum with a frosted smooth lens spreading a wide 160° beam, and the built-in silent, non-flicker electronic LED driver runs on 120 V, 50/60 Hz. It's 100~0% dimmable with standard TRIAC, ELV and incandescent dimmers, power factor above 0.9, THD under 15, rated 25,000 hours with 70% lumen maintenance at 36,000 hours, cULus certified for dry locations, and backed by a 3-year warranty.

Kitchens, vanities, bookshelves, pantries, home offices, retail display cases, reception desks, bar backs and restaurant millwork — this is where the LEDBAR earns its keep. It's suitable for use in closets and compliant with NFPA 70, NEC section 410.16 (A)(1), with a minimum 6" clearance to combustible materials, and it starts down to -10°C, handy in cooler Canadian mudrooms and basements. A 3-wire connection lets you link up to 10 units in a single run with the included joiner, and a power feed is required and sold separately. Plan your run, pick your accessories, and give your counters the light they deserve.

Built to disappear, made to last
The LEDBAR9-50K-90 uses a durable extruded aluminum frame with a frosted smooth lens — an enclosure that doubles as a heat sink and keeps the LED light bar cool and stable over its 25,000-hour rated life. At 33 mm wide and only 25 mm tall, the profile tucks neatly under a cabinet face or inside a cove where the housing is never seen, only the light. The lens softens the diodes into a continuous line with a 160° beam spread, so you get a wide, even wash instead of the dotted look of separate puck lights. Note that on 9" models the on-body on/off switch is not provided, so control comes from your wall dimmer, a switched power feed or a hardwire box.

Light quality that flatters everything
This SKU is the 5000 K daylight version with 90+ CRI — a combination reserved for the 9" length in the LEDBAR family. High CRI means colours render faithfully: the true tone of a cutting board of vegetables, the real grain of walnut millwork, the exact shade of merchandise in a display case. With 240 lumens from 3 W, it's an accent and task light rather than a room light, and it dims smoothly from 100% right down to 0% on industry-standard TRIAC, ELV and incandescent dimmers, so you can drop it to a soft glow at night. Lumen maintenance holds at 70% at 36,000 hours.

Technical specifications
Model: LEDBAR9-50K-90
Length: 9" (229 mm)
Profile: 1-5/16" (33 mm) wide x 1" (25 mm) high
Wattage: 3 W
Lumens: 240
Colour temperature: 5000 K
CRI: 90+
Voltage: 120 V, 50/60 Hz
Beam angle: 160°
Dimming: 100~0%, TRIAC / ELV / Incandescent
Connection type: 3-Wire
Power factor: >0.9
THD: <15
Rated life: 25,000 hrs
Lumen maintenance: 70% @ 36,000 hrs
Operating temperature: -10°C~40°C (14°F~104°F)
Approved location: Dry
Certification: cULus
Warranty: 3 Years

Wiring, linking and accessories
Installation is straightforward: mounting hardware is provided for standard horizontal surfaces or vertical wall surfaces, and a power feed is required and sold separately. The FluoroBar accessory family covers every layout — 6' flexible 3-wire power cords (ALFT6000-WH-3, ALFT6000S-WH-3 with on/off switch), a 16" cord (ALFT6016-WH-3), 6' cords with 90° connectors (ALFT60901 to ALFT60904-WH-3), hardwire boxes (ALFT6300-WH, ALFT6300-OS-WH, ALFT6300-PIR-WH with motion or PIR sensor), 6" flexible cords with 90° connectors (ALFT90/901/902/903-WH-3), plus magnetic clips (LEDBAR-MAGCLIP-3) and 90° clips (LEDBAR-CLIPS-90). For jumping between cabinets, use a 12" flexible connector FBT6100-WH-3, a 24" flexible connector FBT6124-WH-3 or a 36" flexible connector FBT6136-WH-3. With its joiner, the fixture links up to 10 units in a single run on a 3-wire connection. Need a warmer look in the same 9" high-CRI format? See LEDBAR9-27K-90 or LEDBAR9-30K-90, and for longer spans with selectable colour temperature, the LEDBAR23-CCT.

Real projects and documentation
Residential renovators use short LEDBAR sections over a sink run, inside a pantry or above a vanity; contractors line them up in coves and crown mouldings; small businesses light jewellery cases, bakery displays, shelving units and reception millwork. Because it is suitable for use in closets and compliant with NFPA 70, NEC section 410.16 (A)(1) — keeping a minimum of 6" clearance to combustible materials at all times — it's an easy specification for walk-in closets and storage rooms. Keep it to dry locations only, and remember the -10°C minimum start temperature for unheated spaces. The full technical spec sheet for LEDBAR9-50K-90 is available in the Documentation tab for dimensions, wiring and accessory references.
