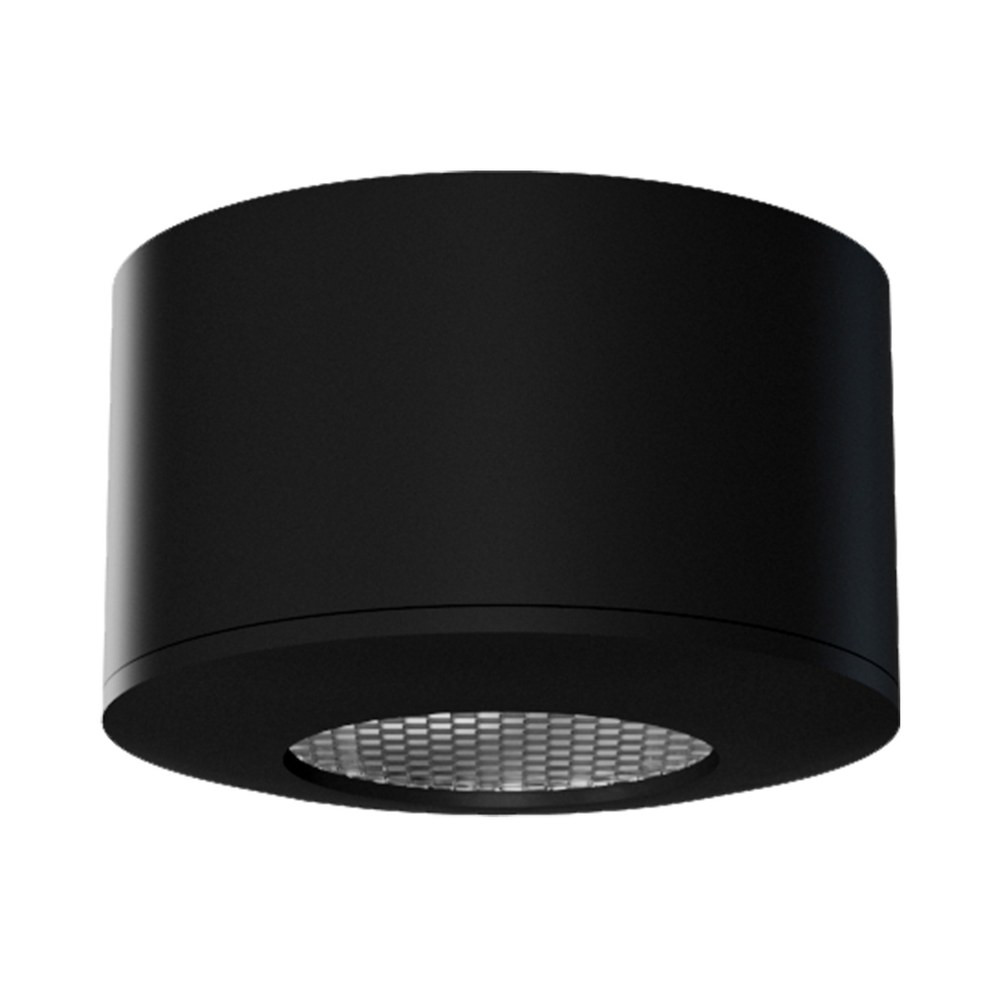

24V MICROLED LIGHT - MLED1-1RM27-24H90ABK

Name: 24V MICROLED LIGHT - MLED1-1RM27-24H90ABK
Brand: LITELINE
SKU: MLED1-1RM27-24H90ABK
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1RM27-24H90ABK

Brand: LITELINE

Some of the best lighting in a room is the lighting you never see — and that is exactly what the MicroLED light from LITELINE does. Often searched as a mini LED puck light, recessed accent button light or under cabinet light, this tiny round fixture hides inside millwork, cabinets, shelves and coves, then throws a clean, focused beam exactly where you want it. Model MLED1-1RM27-24H90ABK is the round version with a medium 40° beam, a warm 2700 K colour temperature and an anodized black finish — the kind of discreet detail that makes a kitchen island, a display case or a bookshelf look professionally designed instead of simply lit.

Behind that small face is real performance. A 1.4 watt LED chip delivers up to 102 lumens at an efficacy of 97 lm/W, with a CRI of 90+ so wood grain, quartz counters, artwork and merchandise keep their true colour. It runs on 24V DC constant voltage and is 100~1% dimmable when paired with a dimmable driver, with the dimming technology determined by the power supply you choose. The body is machined aluminum, designed for surface or recessed mounting, rated for indoor and damp environments, and approved for direct contact with insulation. Projected life is 50,000 hours while maintaining 70% of lumens, and it is backed by a 3-year warranty. Each fixture comes with 22 AWG 2-SPL wire for hardwiring to other fixtures and to the driver. For recessed mounting, minimum material thickness must be 9.5 mm (3/8").

Use it in kitchen cabinets and pantries, bathroom vanities and medicine cabinets, bulkheads, cove details, furniture, retail display cases, wine rooms and drywall accent niches — anywhere a full-size puck would look bulky. Cabinetmakers and contractors across Canada love how easily it disappears into a 3/8" panel. The 2700 K warm glow pairs beautifully with wood and brass, and you can mix in other beams and finishes from the same family, like the MicroLED MLED1-1RM30-24H90ABK in 3000 K or the narrow-beam MicroLED MLED1-1RN30-24H90ABK. Add a 24V driver (sold separately) and light up your project right.

Built small, built solid

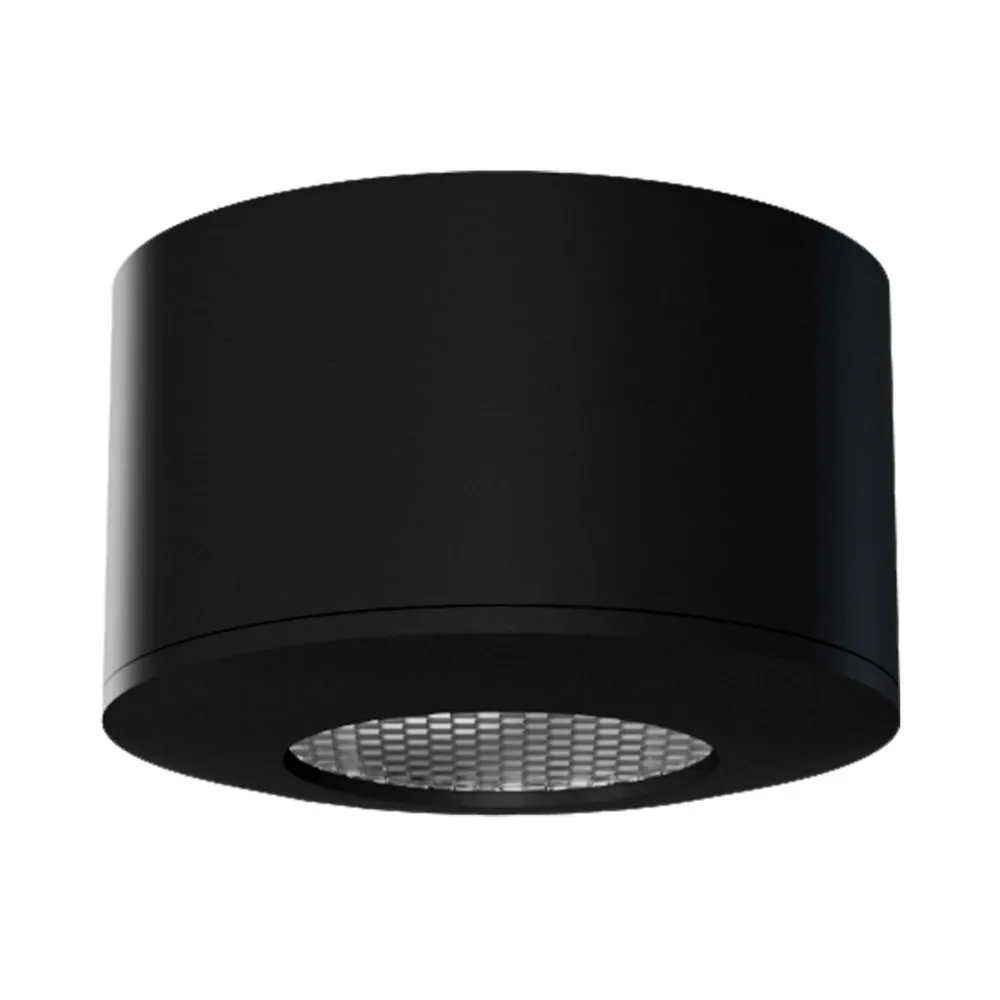

The MicroLED fixture is constructed from machined aluminum, a material choice you can feel the moment you hold one: rigid, heat-friendly and clean-edged. The anodized black (ABK) finish of MLED1-1RM27-24H90ABK keeps the trim visually quiet inside dark cabinetry, black millwork and display cases, where a bright bezel would draw the eye away from what you are actually lighting. The round housing measures 15/16" (24 mm) across the visible face with a 1/8" (3 mm) profile, while the recessed body works into a 1 1/8" (29 mm) footprint, and the fixture ships with 6" (152 mm) of lead. It is designed for surface or recessed mounting and is for indoor use only, rated for indoor and damp environments.

Light quality that flatters what it touches
This is accent lighting, so colour rendering matters. With a minimum CRI of 90+, the 2700 K output of this model keeps walnut warm, brass rich and skin tones natural at a vanity mirror. The fixture lens shapes the output — this SKU carries the medium 40° beam, a versatile spread that washes a shelf or a counter section without hard scalloping. Output reaches up to 102 lumens from a 1.4 W LED chip, and the chip maintains 70% lumens at 50,000 hours average life, so a whole run of cabinet lights ages evenly instead of drifting apart in brightness.

Technical specifications
Model: MLED1-1RM27-24H90ABK
Wattage (±5%): 1.4W
Lumen (±5%): Up to 102
Efficacy: 97 lm/W
CCT (±5%): 2700 K
CRI (typical): 90+
Beam angle: 40° (medium)
Input voltage: 24V DC
Power supply type: Constant voltage
Dimming: Yes, 100~1% with a dimmable driver
Dimming tech: As per power supply
Environment: Indoor, damp
Projected life: 50,000 hrs
Finish: Anodized Black
Warranty: 3-Year

Wiring, drivers and controls
Each fixture is provided with 22 AWG 2-SPL wire for hardwiring to other fixtures and to the driver; use wire type and gauge suitable for your application. A 24V constant voltage power supply is sold separately, and the choice sets your control method. Plug-in options include the LED-DVR-24V-24W (maximum 6 units), LED-DVR-24V-36W (maximum 8 units) and LED-DVR-24V-60W (maximum 15 units); hardwire boxes include the LED-HWB-24V-24W (maximum 6 units), LED-HWB-24V-36W (maximum 9 units) and LED-HWB-24V-60W (maximum 16 units). For full dimming, the Class II electronic hardwire drivers HWB-DIM-CDC-24V-30W (maximum 8 units), HWB-DIM-CDC-24V-60W (maximum 16 units) and HWB-DIM-CDC-24V-96W (maximum 30 units) are the ones to specify. Drivers with a DC 2.1 jack require the LED-HWB-DC21-6-PF power feed. For smart control, the OnCloud driver kit OC-HWB-60WUCP-1C and the OnCloud adapter LC-DVR-CV96W1UCP-1C handle wireless dimming and on/off, paired with the LC-CRTL-DIM-1 smart control with dimmer or the LC-CRTL-3WAY-1 smart 3-way switch. Other accessories include the LED-DIM 24V touch dimmer for non-dimming drivers and the LED-SP-4 harness for up to 4 runs.

Where to use it, and what else to look at
Think cabinet lighting, bulkheads, furniture lighting, display case lighting, cove details, accent lighting and drywall reveals: a row of these grazing a backsplash, a pair inside a glass display cabinet in a boutique, a discreet line under a floating shelf, or reading-side accents in a millwork headboard. Because it is approved for direct contact with insulation, it also suits drywall details in insulated ceilings and bulkheads — and remember the 9.5 mm (3/8") minimum material thickness for recessed installs. Matching the family is easy: the MicroLED MLED1-1RM40-24H90ABK gives you a cooler 4000 K in the same black finish, the MicroLED MLED1-1RM30-24H90AL offers brushed aluminum, the MicroLED MLED1-1RM30-24H90FWH a flat white trim, and the MicroLED MLED1-1SN30-24H90ABK a square, narrow-beam look. The full technical PDF spec sheet is available in the Documentation tab for dimensions, ordering details and the complete driver list.
