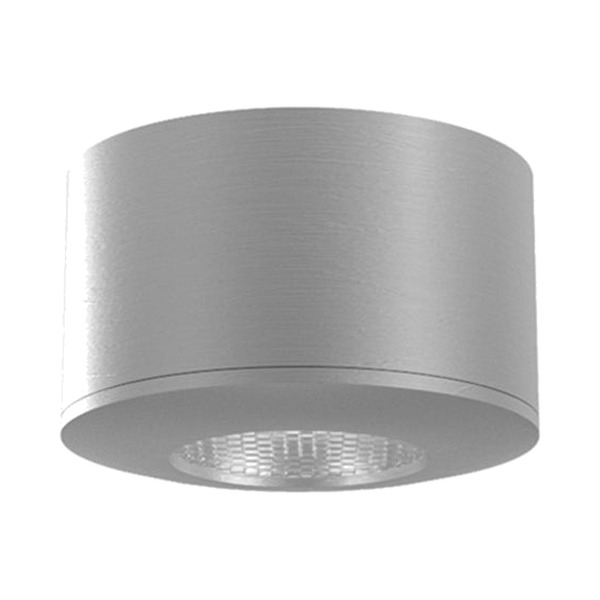

24V MICROLED LIGHT - MLED1-1RM30-24H90AL

Name: 24V MICROLED LIGHT - MLED1-1RM30-24H90AL
Brand: LITELINE
SKU: MLED1-1RM30-24H90AL
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1RM30-24H90AL

Brand: LITELINE

Tiny fixture, serious light: the 24V MicroLED light MLED1-1RM30-24H90AL is the discreet little LED puck light that finally makes cabinets, coves and millwork look professionally lit. People search for it as a mini puck, a display cabinet lighting point, an accent downlight or simply a kitchen under cabinet light — it is all of those at once. Machined from aluminum in a Brushed Aluminum finish, it can be surface mounted on the underside of a shelf or recessed into millwork, so the light shows up and the fixture almost disappears. Cove lighting, bulkheads, furniture and display cases, drywall details, bookcase accents: wherever you want a clean, controlled pool of light without a bulky housing, this micro fixture does the job.

Decode the model and you know exactly what you get: round shape, Medium 40° beam spread, 3000 K warm white, 24 volts, Brushed Aluminum. The LED chip draws just 1.4 W and delivers up to 102 lumens at an efficacy of 97 lm/W, with a typical CRI of 90+ so wood grain, quartz counters, glassware and merchandise keep their true colour. It runs on 24V DC constant voltage (power supply sold separately) and is fully dimmable from 100 to 1% when paired with a dimmable driver, the dimming technology following the power supply you choose. Projected life is 50,000 hours at 70% lumen maintenance, it is rated for indoor and damp environments, approved for direct contact with insulation, and backed by a 3-year warranty. Compact by design: the round trim measures 33 mm across, the body 24 mm, with 18 mm and 21 mm dimensions on the housing and a 6" (152 mm) lead with 22 AWG 2-SPL wire for hardwiring fixture to fixture.

This is the detail light Canadian renovators reach for in kitchens, butler's pantries, bathroom vanities and closets, and that contractors install in retail display cases, jewellery counters, reception millwork and restaurant bars. For recessed mounting, plan a minimum material thickness of 9.5 mm (3/8"), and keep in mind it is an indoor fixture. Need another look or beam? The same MicroLED is offered in Anodized Black round 40°, Flat White round 40°, a tighter Narrow 30° round version or a square 30° version. Order your MLED1-1RM30-24H90AL and light the details that sell the room.

Built small, built solid
The MicroLED body is constructed from machined aluminum, a material choice that keeps the fixture rigid, heat-friendly and clean-looking at very small dimensions. The AL suffix in the model code means a Brushed Aluminum finish, a neutral tone that blends into stainless appliances, aluminum shelf standards and modern millwork. The fixture is designed for both surface and recessed mounting: screw it under a shelf or a bulkhead, or sink it flush into cabinet material for an almost invisible installation. For recessed work, the minimum material thickness is 9.5 mm (3/8"), so plan for solid shelving or a thickened panel. Key dimensions are 33 mm at the round trim, 24 mm at the body, with 18 mm and 21 mm sections and a 3 mm profile detail, plus a 6" (152 mm) lead.

Light quality that flatters what you light
This SKU is a 3000 K warm white with a Medium 40° beam spread — wide enough to wash a counter or a shelf evenly, tight enough to stay an accent rather than a flood. A typical CRI of 90+ is the number that matters most in display case lighting and under cabinet lighting: colours, finishes and food look natural instead of washed out. Output reaches up to 102 lumens from 1.4 W, an efficacy of 97 lm/W, and the LED maintains 70% of its lumens at 50,000 hours of average life, so a run of pucks stays consistent from one fixture to the next over the years.

Technical specifications
SKU: MLED1-1RM30-24H90AL
Brand: Liteline
Wattage (±5%): 1.4W
Lumen (±5%): Up to 102
Efficacy: 97 lm/W
CCT (±5%): 3000 K
CRI (typical): 90+
Beam angle: 40° (Medium)
Input voltage: 24V DC
Power supply type: Constant voltage
Dimming: Yes, 100~1% with dimmable driver
Dimming tech: As per power supply
Environment: Indoor, Damp
Projected life: 50,000 hrs
Finish: Brushed Aluminum
Warranty: 3-Year

Wiring, drivers and controls
Each fixture ships with a 22 AWG 2-SPL wire for hardwiring from fixture to fixture and back to the driver; use a wire type and gauge suitable for your application. A 24V constant voltage power supply is sold separately, and the number of pucks per driver is set by the driver: the LED-DVR-24V-24W plug-in handles a maximum of 6 units, the LED-DVR-24V-36W up to 8 and the LED-DVR-24V-60W up to 15. On the hardwire side, LED-HWB-24V-24W allows 6 units, LED-HWB-24V-36W up to 9 and LED-HWB-24V-60W up to 16. For dimming, the Class II electronic hardwire drivers HWB-DIM-CDC-24V-30W (8 units), HWB-DIM-CDC-24V-60W (16 units) and HWB-DIM-CDC-24V-96W (30 units) give you smooth 100~1% control. Smart options include the OnCloud driver kit OC-HWB-60WUCP-1C and the OnCloud adapter LC-DVR-CV96W1UCP-1C, controlled through the WiZ app, a Room Controller or smart speakers, with the LC-CRTL-3WAY-1 smart 3-way switch and LC-CRTL-DIM-1 smart control with dimmer. Drivers with a DC 2.1 jack require a power feed such as the LED-HWB-DC21-6-PF, and the LED-SP-4 harness splits up to 4 runs. A LED-DIM 24V touch dimmer is also offered for use with non-dimming drivers.

Where to use it, and what else to look at
Think kitchen uppers and open shelving, pantry interiors, vanity millwork, wine cabinets, retail vitrines, museum-style display cases, reception desks and coves in a home theatre. Because the fixture is approved for direct contact with insulation and rated Indoor/Damp, it also suits drywall accents and bulkheads in finished basements. The complete technical PDF spec sheet for MLED1-1RM30-24H90AL is in the Documentation tab, with the full ordering guide, dimensions and driver tables. Matching options are easy: MicroLED 2700 K in Anodized Black for a warmer accent, MicroLED 4000 K in Anodized Black for a cooler, crisper task light, or the Narrow 30° round in Anodized Black when you want a tighter beam on a single object.
