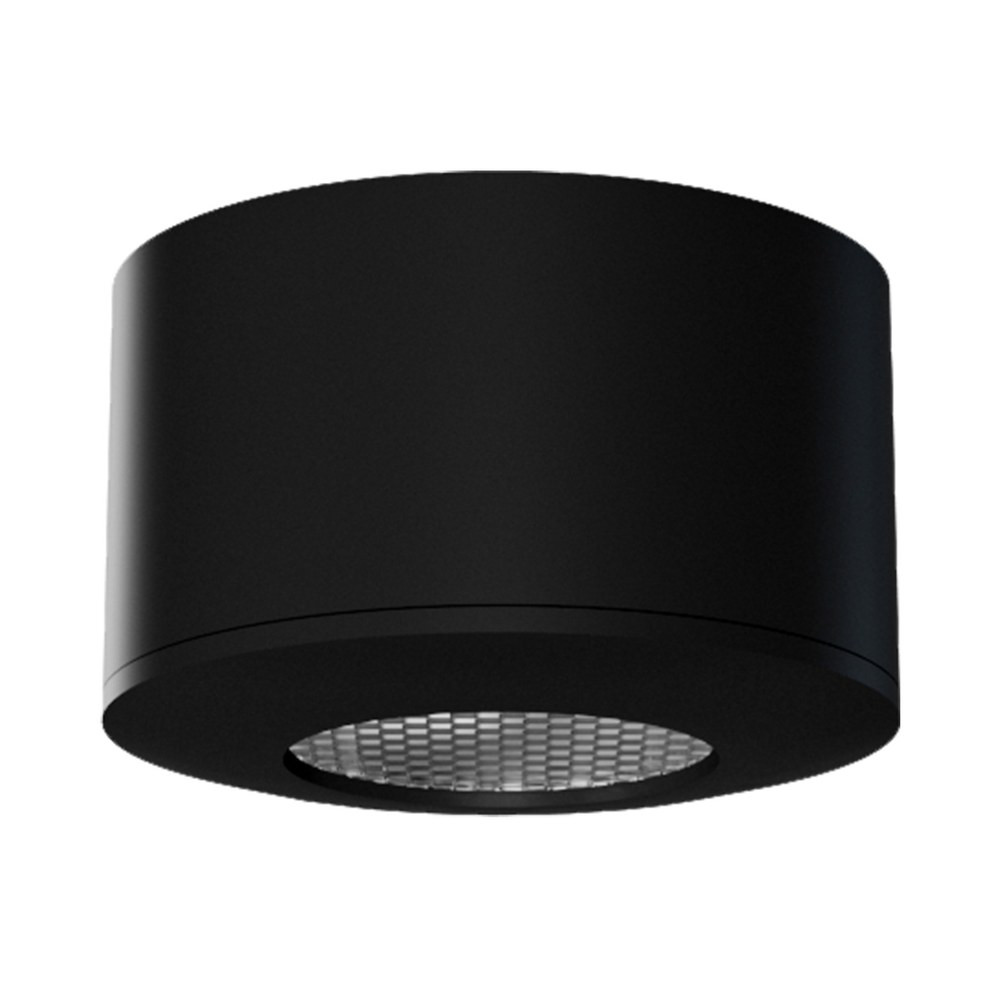

24V MICROLED LIGHT - MLED1-1RM40-24H90ABK

Name: 24V MICROLED LIGHT - MLED1-1RM40-24H90ABK
Brand: LITELINE
SKU: MLED1-1RM40-24H90ABK
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1RM40-24H90ABK

Brand: LITELINE

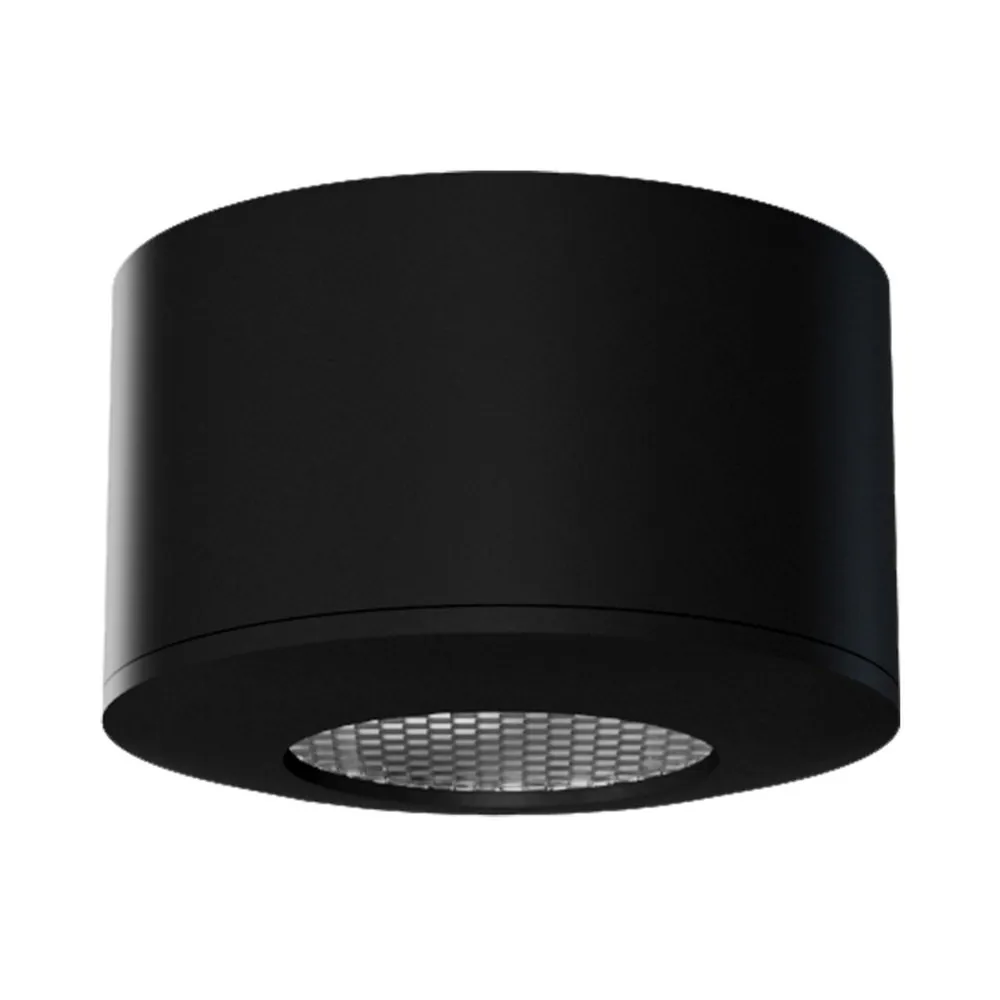

Tiny fixture, big impact: the MicroLED from LITELINE is the discreet under cabinet light that finally lets you light a shelf, a niche or a millwork detail without seeing the light source. Often searched as LED puck lights, mini recessed accent lights or kitchen under cabinet lighting, this round micro fixture (model MLED1-1RM40-24H90ABK) can be surface mounted or recessed, so it disappears into cabinetry, coves, bulkheads, display cases and furniture. It is the kind of detail that makes a renovation look professionally designed instead of simply bright.

Behind that small face is real performance. A 1.4 watt LED chip delivers up to 102 lumens at an efficacy of 97 lm/W, running on 24V DC constant voltage power. The body is machined aluminum in an anodized black finish, and this version carries a 4000 K colour temperature with a medium 40° beam spread — a crisp, neutral accent beam that flatters countertops, glassware and merchandise. Colour rendering is a minimum CRI of 90+, so wood grain, paint and product colours look true. Projected life is 50,000 hours with 70% lumen maintenance, it is rated for indoor and damp locations, it supports smooth 100~1% dimming when paired with a dimmable driver, and it is backed by a 3-year warranty. For recessed mounting, the material must be at least 9.5 mm (3/8") thick. The fixture measures 40 mm across the flange, with a 33 mm body and a 29 mm mounting depth reference on the housing.

Canadian kitchens, bathrooms and retail displays are exactly where this one earns its keep: under upper cabinets, inside a vanity or bathroom cabinet, along a cove or bulkhead, in a jewellery or display cabinet, under floating shelves or inside built-in bookcases. Each fixture ships with 22 AWG 2-SPL wire for hardwiring fixture to fixture and back to a 24V driver (sold separately) — plan your driver by the maximum fixture count listed for each model. Prefer a warmer glow or a different look? See the MicroLED 2700K black, the MicroLED 3000K black, the brushed aluminum MicroLED 3000K, or the square square MicroLED narrow beam. Add it to your project and light the details.

Built small, built solid
The LITELINE MicroLED is machined from solid aluminum and finished in anodized black (ABK), a finish that stays discreet inside dark millwork and resists fingerprints better than a glossy trim. The fixture is engineered for both surface mounting and recessed mounting, so the same SKU can sit flush under a cabinet gable or drop into a routed pocket in a shelf, a bulkhead or drywall. It is approved for direct contact with insulation, which simplifies ceiling and soffit work, and it is rated for indoor and damp environments — good news for a vanity area or a covered display. For recessed installs, remember the minimum material thickness of 9.5 mm (3/8").

Light quality that flatters what it touches
This model runs a 1.4 watt LED chip producing up to 102 lumens, with an efficacy of 97 lm/W. The 4000 K colour temperature gives a clean, neutral white that keeps white quartz looking white and makes stainless, glass and merchandise pop — ideal for task-adjacent accent lighting rather than ambient glow. With a typical CRI of 90+, reds and wood tones read naturally instead of washed out. The lens on this version delivers a medium 40° beam, a versatile spread that covers a counter zone or a shelf face without hot spots at the edges. Projected life is 50,000 hours while maintaining 70% of initial lumens.

Technical specifications
SKU: MLED1-1RM40-24H90ABK
Shape: Round
Beam angle: 40° (Medium)
Colour temperature: 4000 K (±5%)
CRI: 90+ typical
Wattage: 1.4W (±5%)
Lumens: Up to 102 (±5%)
Efficacy: 97 lm/W
Input voltage: 24V DC
Power supply type: Constant voltage
Dimming: Yes, 100~1% with a dimmable driver; dimming technology as per power supply
Environment: Indoor, Damp
Finish: Anodized Black
Projected life: 50,000 hrs
Warranty: 3-Year

Wiring, drivers and controls
Each fixture comes with 22 AWG 2-SPL wire for hardwiring fixture to fixture and back to a 24V constant voltage driver, sold separately; always use a wire type and gauge suitable for the application. Non-dimming plug-in options include the LED-DVR-24V-24W (maximum 6 units), LED-DVR-24V-36W (maximum 8 units) and LED-DVR-24V-60W (maximum 15 units), while hardwire boxes include the LED-HWB-24V-24W (maximum 6 units), LED-HWB-24V-36W (maximum 9 units) and LED-HWB-24V-60W (maximum 16 units). For true dimming, the Class II electronic hardwire drivers HWB-DIM-CDC-24V-30W (maximum 8 units), HWB-DIM-CDC-24V-60W (maximum 16 units) and HWB-DIM-CDC-24V-96W (maximum 30 units) do the job. Drivers with a DC 2.1 jack require the LED-HWB-DC21-6-PF power feed. Want app and voice control? The OnCloud driver kit OC-HWB-60WUCP-1C and the LC-DVR-CV96W1UCP-1C adapter add wireless dimming and on/off, and the LC-CRTL-DIM-1 smart control with dimmer or LC-CRTL-3WAY-1 smart 3-way switch complete the system. The LED-SP-4 harness supports up to 4 runs at 24V, and the LED-DIM 24V touch dimmer works with non-dimming drivers.

Where to use it, and what's in the Documentation tab
Think kitchen cabinet interiors and under-shelf task pockets, bathroom vanities and medicine cabinets, cove and bulkhead details, bar backs, retail and museum display case lighting, reception millwork, closet systems and stair niches. Contractors like it because one small hole and a low-voltage run replace bulky pucks and hot halogen lamps. Match the family across a whole project: the MicroLED 3000K flat white blends into pale cabinetry, the MicroLED 3000K narrow beam black tightens the beam for tall display cases, and the square MicroLED 3000K white gives a crisp geometric look. The complete spec sheet for MLED1-1RM40-24H90ABK, including dimensions, the ordering guide and the full compatible driver list, is available in the Documentation tab.
