24V MICROLED LIGHT - MLED1-1RM30-24H90ABK

Name: 24V MICROLED LIGHT - MLED1-1RM30-24H90ABK
Brand: LITELINE
SKU: MLED1-1RM30-24H90ABK
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1RM30-24H90ABK

Brand: LITELINE

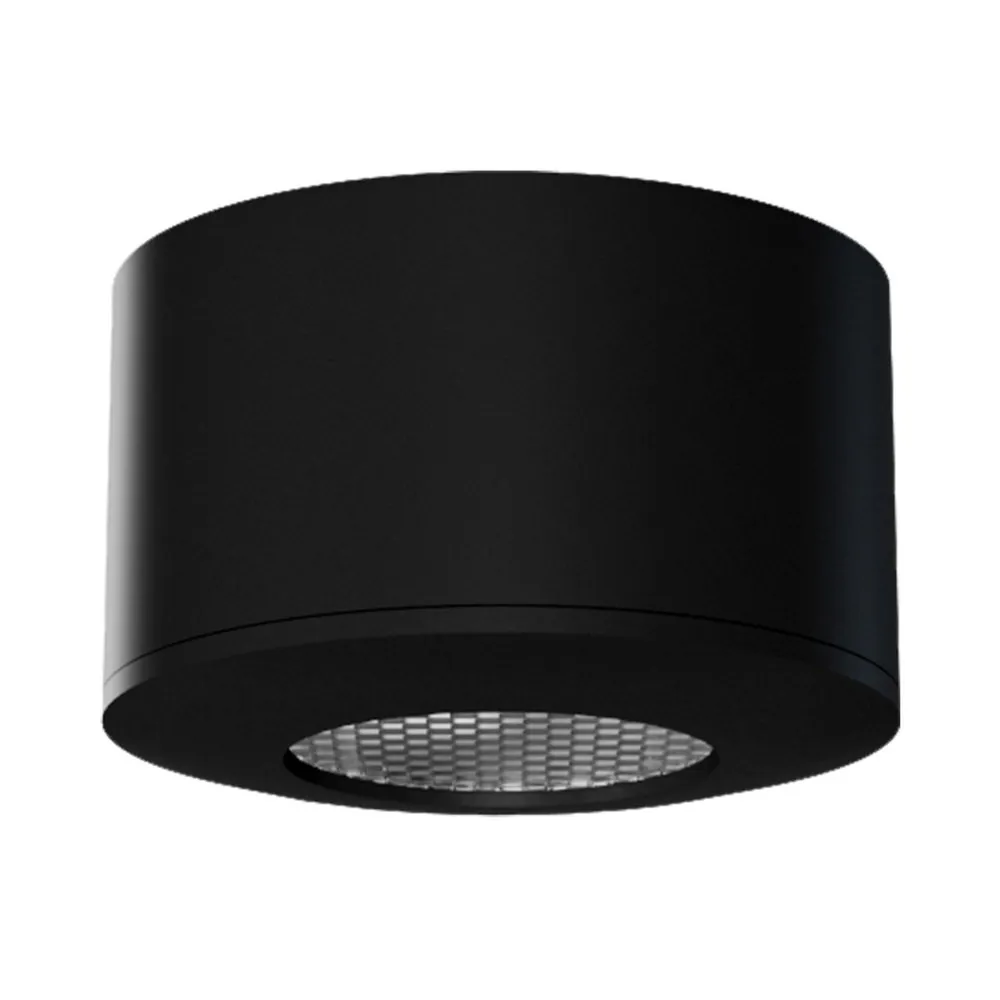

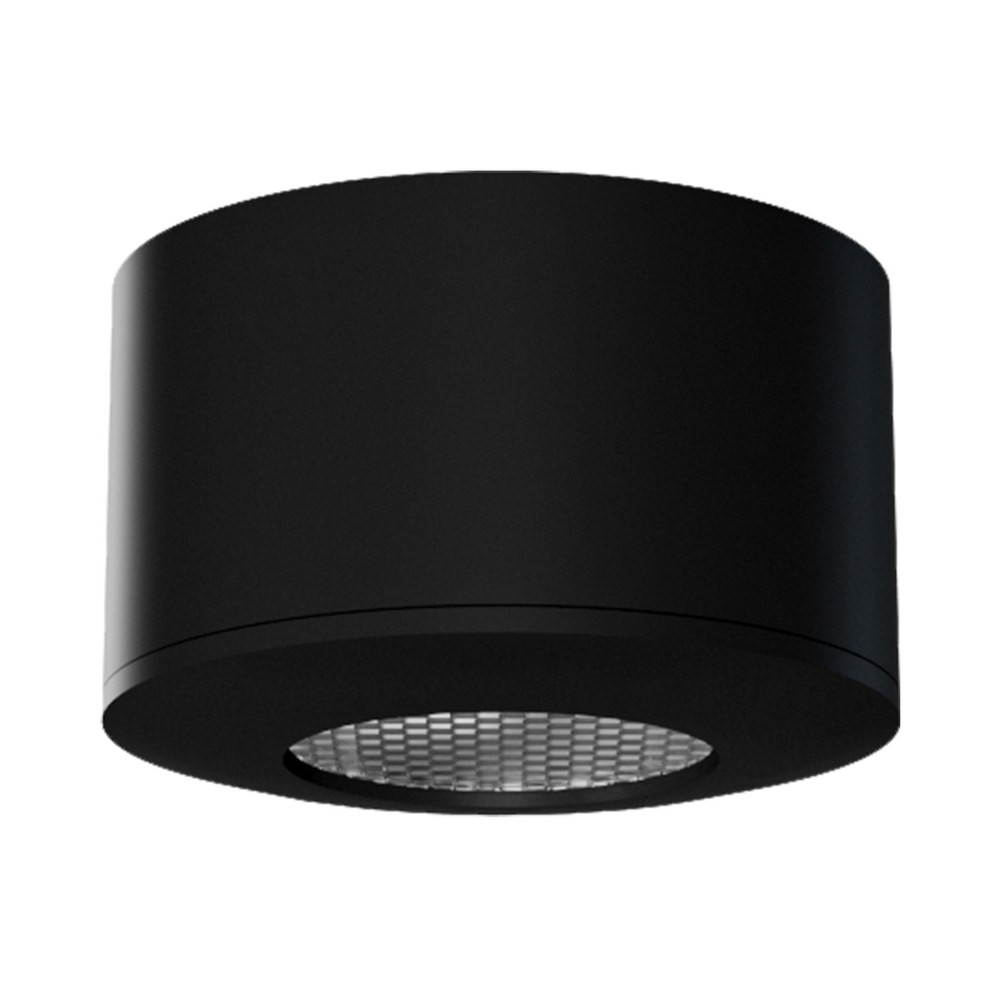

Some of the best lighting in a kitchen is the light you never see the source of — and that's exactly the job of the MicroLED MLED1-1RM30-24H90ABK from LITELINE. Call it a mini LED puck light, a micro recessed accent light, a cove light or simply an under cabinet light: this tiny round fixture in anodized black slips into millwork, shelving and bulkheads and throws a clean, jewel-like beam exactly where you want it. It is made for cove, under cabinet and millwork lighting, and it works just as well as display cabinet lighting, bathroom cabinet lighting, bookcase and furniture accent lighting, or discreet drywall accents in a hallway.

Behind the small format is real performance. A 1.4 watt LED chip delivers up to 102 lumens at an efficacy of 97 lm/W, with a warm and very flattering 3000 K colour temperature and a minimum CRI of 90+, so wood grain, quartz counters, glassware and merchandise keep their true colour. The lens on this model produces a 40° medium beam, wide enough to wash a shelf yet tight enough to stay an accent. It runs on 24V DC constant voltage (power supply sold separately) and is 100~1% dimmable when paired with a dimmable driver, the dimming technology following the power supply you choose. The body is machined aluminum for indoor, damp-rated locations, the projected life is 50,000 hours at 70% lumen maintenance, and it carries a 3-year warranty. Each fixture ships with 22 AWG 2-SPL wire for hardwiring fixture to fixture and back to the driver. For recessed mounting, the material must be at least 9.5 mm (3/8") thick; the fixture is also approved for direct contact with insulation.

In Canadian homes and shops, this is the light that makes a kitchen island, a walk-in closet, a wine display, a reception desk or a jewellery case look finished. Contractors love how it disappears into cabinetry, and the anodized black trim reads beautifully against dark oak, matte black hardware and modern millwork. Prefer another look or beam? The same fixture is offered in brushed aluminum and flat white, in a tighter 30° narrow beam, in a 2700 K version or in a square shape. Plan your run, pick your 24V driver and order the MLED1-1RM30-24H90ABK today.

Built small, built solid
The MicroLED body is constructed from machined aluminum, a material choice that matters in a fixture this compact: it keeps the LED cool and the finish crisp year after year. The round face measures 15/16" (24 mm) with an 11/16" (18 mm) housing and a 1/8" (3 mm) low-profile trim, while the recessed version sits in a 13/16" (21 mm) opening, and the surface-mount base adds a 1 9/16" (40 mm) footprint at 1 1/8" (29 mm). Each fixture comes with 6" (152 mm) of lead wire. The anodized black finish (ABK in the model code) is designed to vanish into dark millwork or read as a deliberate design detail on pale cabinetry.

Light quality you can see
This is an accent light built for people who care about how things look. The 3000 K colour temperature is a soft, warm white that flatters wood, brass and skin tones, and the 90+ CRI rendering means reds and browns stay rich instead of going flat. The M option in the model code gives a 40-degree medium beam spread — the versatile middle ground for shelves, counters and display cases. Output is up to 102 lumens from 1.4 W, and the LED maintains 70% of its lumens at 50,000 hours of average life, so a full kitchen or showroom installation ages evenly rather than drifting in colour and brightness.

Technical specifications
Model: MLED1-1RM30-24H90ABK
Wattage (±5%): 1.4W
Lumen (±5%): up to 102
Efficacy: 97 lm/W
CCT (±5%): 3000 K
CRI (typical): 90+
Beam angle: 40°
Input voltage: 24V DC
Power supply type: constant voltage
Dimming: yes, 100~1% with dimmable driver
Dimming tech: as per power supply
Environment: indoor, damp
Projected life: 50,000 hrs
Warranty: 3-Year

Wiring, drivers and controls
The fixture runs on 24V DC constant voltage and the driver is sold separately, which lets you size the system to the job. Each light is supplied with 22 AWG 2-SPL wire for hardwire linking from fixture to fixture and back to the driver; always use a wire type and gauge suitable for the application. Plug-in 24V drivers are offered in 24W (maximum 6 units), 36W (maximum 8 units) and 60W (maximum 15 units); hardwire box drivers in 24W (maximum 6 units), 36W (maximum 9 units) and 60W (maximum 16 units). For dimmable installations, the Class II electronic hardwire drivers come in 30W (maximum 8 units), 60W (maximum 16 units) and 96W (maximum 30 units). Drivers with a DC 2.1 jack require a power feed such as the LED-HWB-DC21-6-PF. Accessories include the LED-DIM 24V touch dimmer for non-dimming drivers and the LED-SP-4 harness for up to 4 runs. Smart control is possible with the OnCloud driver kit OC-HWB-60WUCP-1C or the LC-DVR-CV96W1UCP-1C adapter, plus the LC-CRTL-3WAY-1 switch and LC-CRTL-DIM-1 dimmer.

Where to use it, and what's in the Documentation tab
Think toe-kicks and upper cabinet undersides in a kitchen, a lit niche in a bathroom vanity, glass shelving in a retail display case, a coved ceiling in a basement theatre, bulkheads, furniture lighting and drywall accents. It is rated for indoor, damp locations and approved for direct contact with insulation, and for recessed installs the host material must be a minimum of 9.5 mm (3/8") thick. Mixing beams and finishes across one project is easy: the family also includes square 30° anodized black and 4000 K round medium versions. The complete technical spec sheet, with dimensions, ordering guide and full driver compatibility list, is available in the Documentation tab of this page.

Technical Files
