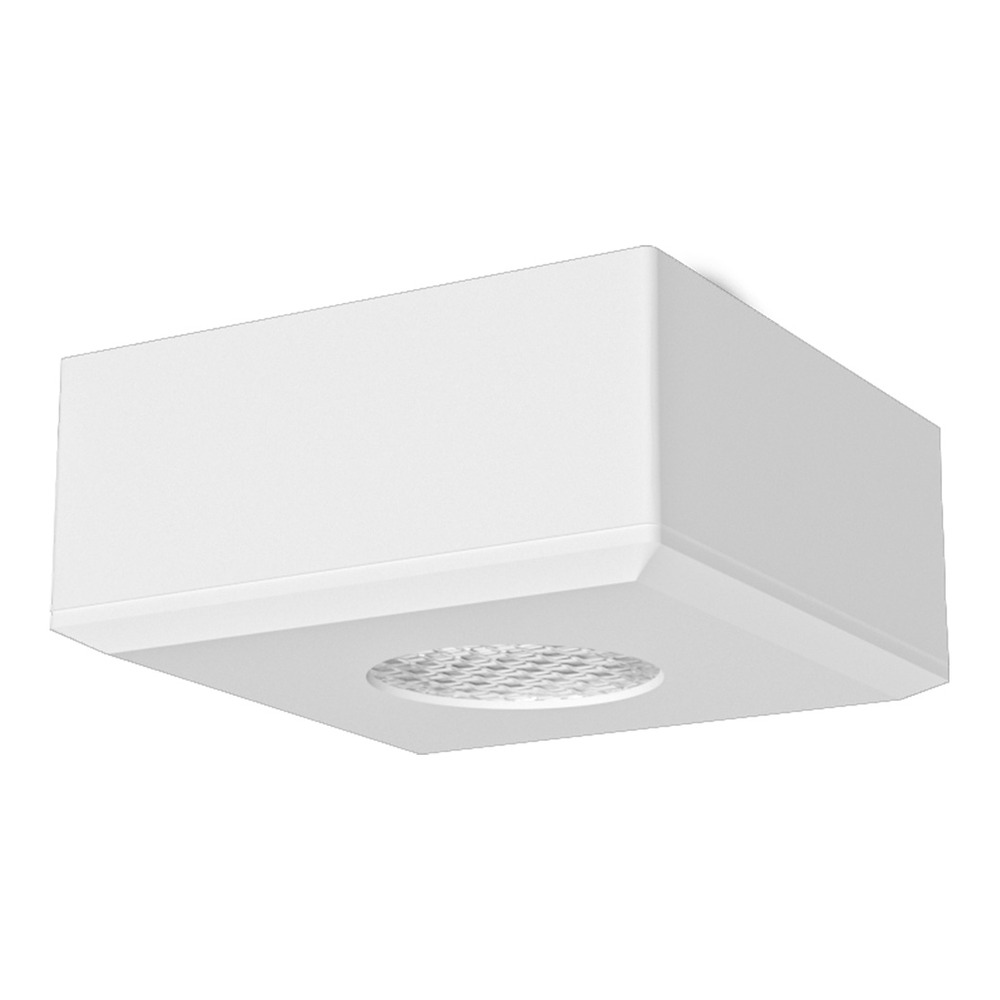

24V MICROLED LIGHT - MLED1-1SN30-24H90FWH

Name: 24V MICROLED LIGHT - MLED1-1SN30-24H90FWH
Brand: LITELINE
SKU: MLED1-1SN30-24H90FWH
Price: 107.97 CAD
Availability: InStock

SKU: MLED1-1SN30-24H90FWH

Brand: LITELINE

Tiny fixture, serious light: the 24V MicroLED light from LITELINE is the discreet little powerhouse people are looking for when they search led puck lights, kitchen under cabinet lighting or display cabinet lighting. Machined from solid aluminum with a low profile body, this mini LED spot hides under a shelf, inside a curio or along a countertop and does the work of a much bigger fixture. It can be recessed or surface mounted, which makes it just as useful for accent, task or general lighting: highlighting a fireplace surround, washing a backsplash, lighting a bathroom cabinet, brightening bookshelves and killing the dark corners that regular ceiling lights always miss.

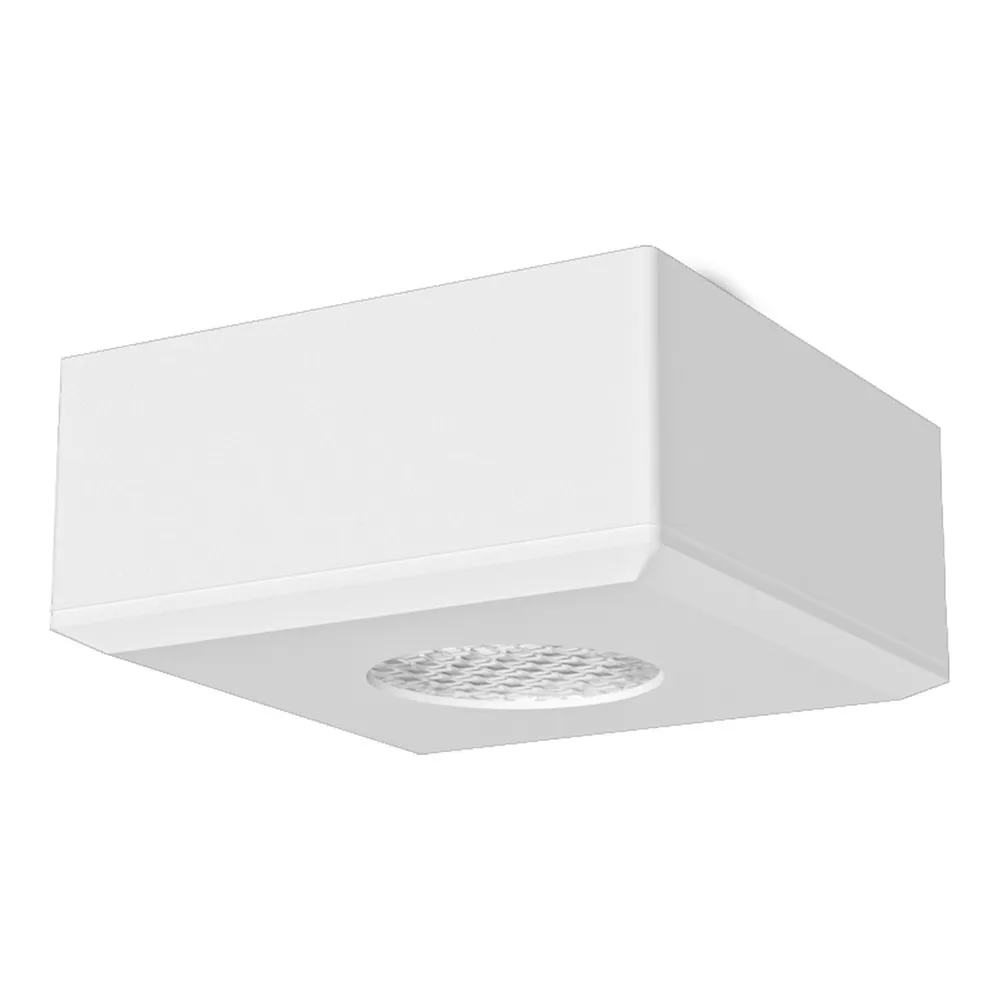

This exact model, SKU MLED1-1SN30-24H90FWH, is the square profile version in a Flat White finish, with a narrow 30° beam spread and a warm 3000°K colour temperature — the cozy white most homeowners want over wood, stone and cabinetry. It draws only 2 watts per LED and delivers up to 139 lumens per light source, with a minimum CRI of 80 so countertops, fabrics and displayed objects keep honest colour. It runs on 24V DC constant voltage and comes with bare wires for hardwire applications. It is dimmable when used with a dimming driver, cETLus listed and approved for damp locations, and it is maintenance free compared to the halogen pucks it replaces.

Put it to work in kitchens, bathrooms, home offices, walk-in closets, basement bars, retail display cases, jewellery counters and reception desks — anywhere a Canadian renovation needs clean, shadow-free light without bulky housings. Because it is a 24V low voltage fixture, you will need a Class 2 driver, sold separately, sized to the total wattage of your run; hardwire drivers and dimmable 24V drivers are both listed on the spec sheet. Want the same square narrow-beam spot in a darker finish? See the 24V MicroLED light MLED1-1SN30-24H90ABK, or go round with the 24V MicroLED light MLED1-1RN30-24H90FWH. Plan your layout, order the count you need and light every shelf properly.

Built small, built solid
The MicroLED family is made from machined aluminum, not moulded plastic, which is why these fixtures stay slim and still handle heat like a proper LED luminaire. The low profile body is the whole point: it disappears under a cabinet lip, inside a millwork reveal or flush in a shelf, so you see the light and not the hardware. This SKU is the square profile version in a Flat White finish, which blends into white cabinetry, painted MDF shelving and light ceilings. The same fixture can be surface mounted with the light sitting proud of the surface, or recessed for a fully built-in, architectural look — one product, two very different installs.

Light quality you can trust
Each light source puts out up to 139 lumens from just 2 watts per LED, and this model uses the Narrow 30° beam, a controlled cone that concentrates light on a countertop, a shelf edge or a display object instead of spraying it everywhere. The 3000°K colour temperature is a warm white that flatters wood, brass, stone and skin tones, and the minimum CRI of 80 keeps reds and browns looking real — important over a cutting board, in a bathroom mirror zone or inside a retail case. The MicroLED range is also offered in 5500°K and in 15°, 45° and 60° beam angles if another area of your project calls for a different look.

Technical specifications
SKU: MLED1-1SN30-24H90FWH
Brand: LITELINE
Fixture shape: Square
Beam spread: Narrow 30°
Colour temperature: 3000°K
Voltage: 24V DC constant voltage
Wattage: 2 watts per LED
Output: up to 139 lumens per light source
CRI: minimum 80
Wiring: Hardwire (bare wires)
Finish: Flat White
Mounting: surface or recessed
Dimming: dimmable when used with a dimming driver
Certification: cETLus listed
Location: approved for damp locations

Wiring, drivers and compatibility
This is a low voltage 24V DC fixture, so it always needs a Class 2 driver, sold separately, chosen for the total wattage of all the lights on the run. The "H" in the model code means bare wires for hardwire applications, so it pairs naturally with hardwire box drivers such as the LED-HWB-24V-24W, LED-HWB-24V-36W and LED-HWB-24V-60W. For dimming, the spec sheet lists electronic hardwire dimmable drivers (LED-HWBDIM2-24-40 2-wire and LED-HWBDIM3-24-40 3-wire, powered by Lutron®) as well as magnetic dimmable hardwire drivers from HWB-DIM-MDC-24V-20W up to HWB-DIM-MDC-24V-192W. A touch dimmer (LED-DIM 24V) is available when a non-dimmable driver is used, and the LED-SP-4 harness splits a supply into up to 4 runs. Always confirm the driver capacity before adding fixtures to an existing circuit.

Where it earns its keep, and what's in the Documentation tab
Contractors use these MicroLEDs under upper kitchen cabinets to erase shadows on the counter, inside glass display cabinets and curios, over fireplace mantels, in closets and pantries, under floating shelves, in bathroom vanity millwork, and in commercial settings such as boutiques, jewellery cases, bars and reception desks. Mixing finishes and beams across one project is easy: the round medium-beam 24V MicroLED light MLED1-1RM30-24H90FWH covers wider surfaces, the 24V MicroLED light MLED1-1RM30-24H90AL brings a brushed aluminum look, and the 24V MicroLED light MLED1-1SN30-24H90ABK is the same square 30° spot in anodized black. The full technical spec sheet (PDF) for MLED1-1SN30-24H90FWH, including the ordering guide and the complete list of compatible 24V drivers, is in the Documentation tab.
