LED BAR 3W - 2700K - 90CRI - 9" 3-WIRE FIXTURE - WHITE - LEDBAR9-27K-90

Name: LED BAR 3W - 2700K - 90CRI - 9" 3-WIRE FIXTURE - WHITE - LEDBAR9-27K-90
Brand: LITELINE
SKU: LEDBAR9-27K-90
Price: 46.97 CAD
Availability: InStock

SKU: LEDBAR9-27K-90

Brand: LITELINE

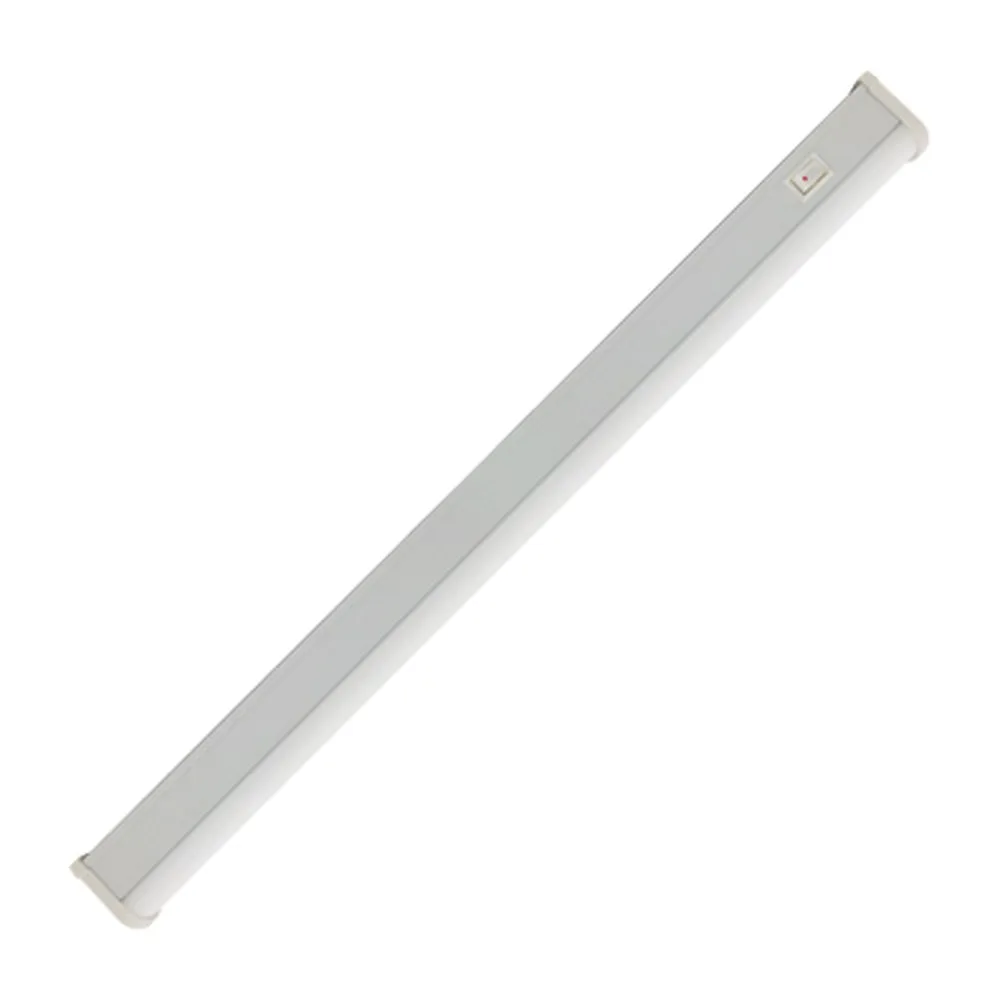

Warm, flattering light exactly where you need it — that's what the LITELINE LEDBAR9-27K-90 delivers. This 9" LED Fluorobar is a slim linear under cabinet light, the kind of fixture people look for when they search "led puck lights", "kitchen under cabinet lighting", "bathroom cabinet light" or "display cabinet lighting" — except instead of round pucks and hot spots, you get one smooth, even bar of light. Designed for cove, under cabinet and millwork applications, it tucks under a wall cabinet, inside a bookcase, above a countertop or along a shelf and simply disappears, leaving only the glow. It's a favourite for kitchen renovations, closets, pantries, retail display cases and any spot where a 9-inch run is all the space you have.

Built on a durable extruded aluminum frame with a frosted smooth lens, this bar draws 3 W and produces 150 lumens at 2700 K, a soft warm white, with 90+ CRI so wood grain, countertops, skin tones and merchandise all look true. The lens spreads light over a 160° beam angle for shadow-free coverage. It runs on 120 V with a built-in silent, non-flicker electronic LED driver and is 100~0% dimmable with standard TRIAC, ELV and incandescent dimmers. Power factor is greater than 0.9, THD is under 15, and the fixture keeps 70% of its lumens at 36,000 hours with a rated life of 25,000 hours. It's cULus certified, suitable for dry locations, operates from -10°C to 40°C and is backed by a 3-year warranty. Note that on-body on/off switches are not provided on 9" models.

In a Canadian home, this is the bar that finally lights the cutting board under the upper cabinets, brightens a dark walk-in closet (it's suitable for closet use and compliant with NFPA 70, NEC section 410.16 (A)(1), keeping 6" clearance to combustibles), or adds sparkle to a china cabinet. Shops and salons use it in display cases, reception millwork and shelving. It uses a 3-wire connection and links with a joiner, up to 10 units in a single run — bridge cabinet gaps with the 12" flexible connector FBT6100-WH-3, the 24" flexible connector FBT6124-WH-3 or the 36" flexible connector FBT6136-WH-3. A power feed is required. Add it to your project and light up the work surface tonight.

Construction and finish
The LEDBAR is built around a durable extruded aluminum frame closed by a frosted smooth lens. Aluminum does two jobs here: it keeps the profile rigid enough to span an open shelf without flexing, and it pulls heat away from the integrated LED strip, which is what protects light output over the long haul. The profile measures 1-5/16" (33 mm) wide by 1" (25 mm) high, with a length of 9" (229 mm) on this model — low-profile enough to hide behind a cabinet valance or a millwork reveal. The frosted lens is the detail installers appreciate most: it blends the diodes into one continuous line, so you see light on the counter instead of a row of dots reflected in a glossy backsplash.

Light quality and dimming
This version is a 2700 K warm white with 90+ CRI, the combination most people want over wood cabinetry, quartz counters, bathroom vanities and retail displays where colour accuracy sells the product. The lens delivers a 160° beam spread, so a single 9" bar washes a shelf edge to edge rather than punching a narrow stripe. Dimming is full range, 100~0%, using industry standard TRIAC, ELV or incandescent dimmers — the same wall dimmers already common in Canadian homes. The built-in electronic driver is silent and non-flicker, which matters in a quiet kitchen at night and on camera in a shop or studio.

Technical specifications
Model: LEDBAR9-27K-90
Brand: LITELINE
Length: 9" (229 mm)
Wattage: 3 W
Lumens: 150
Colour temperature: 2700 K
CRI: 90+
Beam angle: 160°
Voltage: 120 V, 50/60 Hz
Connection type: 3-Wire
Dimming: Yes — TRIAC / ELV / Incandescent, 100~0%
Power factor: >0.9
THD: <15
Rated life: 25,000 hrs
Lumen maintenance: 70% @ 36,000 hrs
Approved location: Dry
Operating temperature: -10°C to 40°C
Certification: cULus
Warranty: 3 years

Installation, linking and compatibility
Mounting hardware is provided for fixing the bar to standard horizontal surfaces or to a vertical wall surface, so you can mount it flat under a cabinet or upright behind a light valance. A power feed is required and sold separately; the FluoroBar accessory family includes flexible power cords, power cords with 90° connectors, and hardwire boxes, including versions with an on/off switch or a motion sensor. Complete with a joiner, these no-shadow linking fixtures can be linked up to 10 units in a single run, and flexible 3-wire connectors let you jump over cabinet stiles, corners and sink openings: see the 12" flexible connector FBT6100-WH-3, the 24" flexible connector FBT6124-WH-3 and the 36" flexible connector FBT6136-WH-3. Magnetic mounting clips and 90° mounting clips are also part of the series. Keep in mind that the on-body on/off switch found on other lengths is not included on 9" models, and note that 90 CRI is offered only on the 9" length. Maintain a minimum of 6" clearance to combustible materials at all times.

Applications and documentation
Think of the short runs first: a 9" bar over a coffee station, inside a glass display cabinet, under a floating bathroom vanity, in a pantry, along a stair cove or in a closet — it is suitable for use in closets and compliant with NFPA 70, NEC section 410.16 (A)(1). Contractors use several units linked together for a full kitchen counter, boutiques use them shelf by shelf in merchandising units, and cabinetmakers integrate them straight into millwork reveals. If you prefer a longer bar or a selectable colour temperature version, look at the LEDBAR CCT LEDBAR14-CCT or the LEDBAR CCT LEDBAR23-CCT; for the same 9" size in a cooler white, see the LEDBAR LEDBAR9-40K-90. The full technical PDF (LEDBAR9-27K-90 Spec Sheet) is available in the Documentation tab for dimensions, lumen tables and accessory references.
