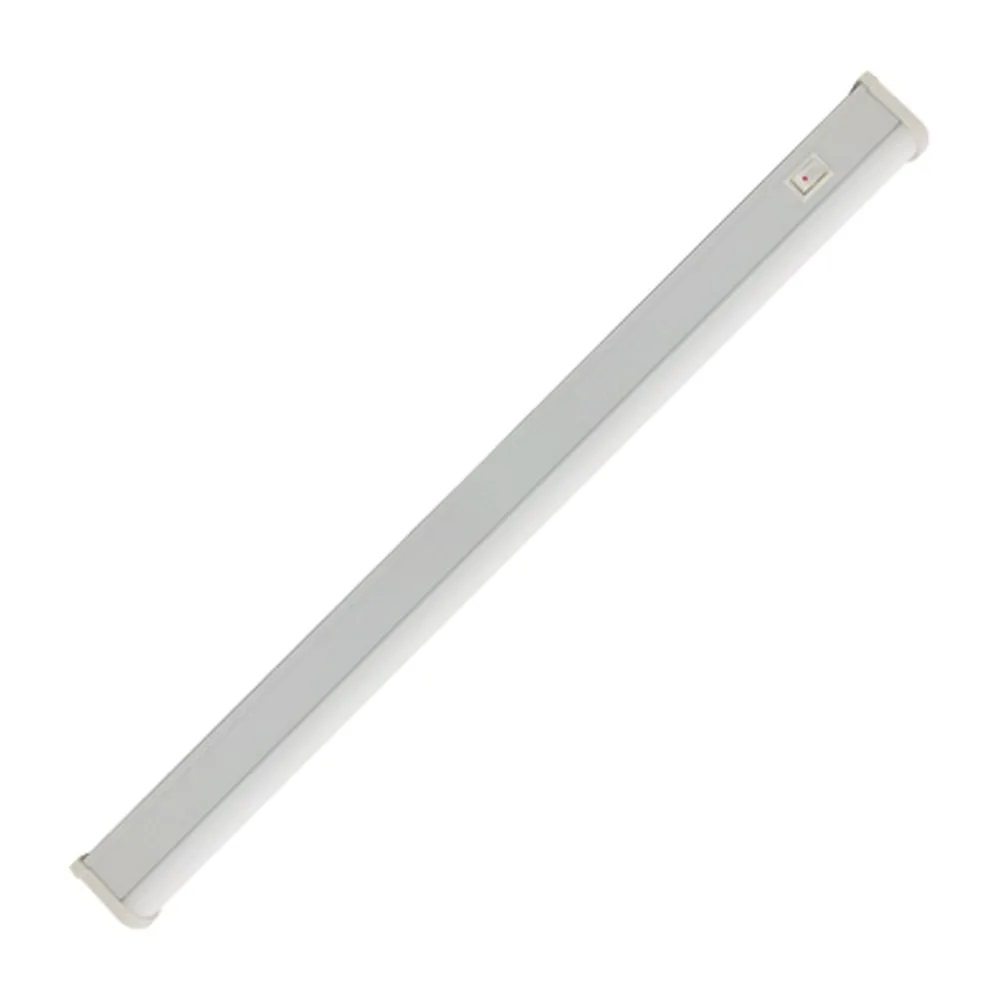

LED BAR 3W - 3000K - 90CRI - 9" 3-WIRE FIXTURE - WHITE - LEDBAR9-30K-90

Name: LED BAR 3W - 3000K - 90CRI - 9" 3-WIRE FIXTURE - WHITE - LEDBAR9-30K-90
Brand: LITELINE
SKU: LEDBAR9-30K-90
Price: 46.97 CAD
Availability: InStock

SKU: LEDBAR9-30K-90

Brand: LITELINE

Some spaces just need a clean line of light exactly where you work, and that's the whole idea behind the LEDBAR9-30K-90 from LITELINE. This 9" LED Fluorobar is a slim linear bar — what most people call an under cabinet light, an LED light bar, a fluorobar or a linear puck light replacement — built for cove, under cabinet and millwork lighting. It slides under a kitchen upper, inside a display cabinet, above a bathroom vanity or along a shelf and turns a dark shadowy counter into a bright, usable work surface. If you've been shopping led puck lights or kitchen under cabinet lighting and want an even wash of light instead of a row of bright dots, a linear bar like this one is the upgrade.

The 9" (229 mm) model draws just 3 W at 120 V and puts out 230 lumens at 3000 K, a warm white that flatters wood, quartz and tile without going yellow. Its 90+ CRI rendering makes food, paint colours and merchandise look true — a real difference when you're prepping supper or lighting a retail display. The frosted smooth lens spreads light at a 160° beam angle for a soft, even line with no hot spots, and the durable extruded aluminum frame measures only 1-5/16" (33 mm) wide by 1" (25 mm) high, so it hides easily behind a valance. A built-in silent, non-flicker electronic LED driver is included, and the fixture is 100~0% dimmable with standard TRIAC, ELV and incandescent dimmers. Add cULus certification, a rated life of 25,000 hours, 70% lumen maintenance at 36,000 hours, power factor >0.9 and a 3-year warranty. Dry location only; operating range -10°C to 40°C.

It's a natural for kitchen counters, pantries, bookcases, display cases, home offices, bar backs, salons and shop counters — and it's approved for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(1), keeping 6" minimum clearance to combustibles. Being a 3-wire linking system, up to 10 units can run in a single line, and it pairs with flexible connector FBT6100-WH-3, flexible connector FBT6124-WH-3 or flexible connector FBT6136-WH-3 to jump between cabinets. Order yours and light that counter properly.

Built to disappear under the cabinet
The LEDBAR body is a durable extruded aluminum frame fitted with a frosted smooth lens, a combination that both pulls heat away from the LEDs and softens the light into a continuous line. At 1-5/16" (33 mm) wide and 1" (25 mm) tall, with a length of 9" (229 mm), the LEDBAR9-30K-90 tucks neatly behind a cabinet valance, inside a millwork reveal or along a cove. Mounting hardware is provided for installation on standard horizontal surfaces or on a vertical wall surface, so you can aim the light down onto the counter or forward into a display. Note that on this 9" model the on-body on/off switch is not included (it is provided on the other lengths), so switching is handled at the wall dimmer or through an accessory power feed.

Light quality you can see
This version is factory set at 3000 K with 90+ CRI — warm white with high colour fidelity. Whites stay clean, wood grain keeps its depth and food looks appetizing rather than washed out, which is why 90 CRI is the choice for kitchens, bathrooms and retail displays. The integrated LED strip delivers 230 lumens at 3000 K from 3 W, and the 160° beam spread from the lens keeps the wash even from end to end. Long term, the fixture maintains 70% of its lumens at 36,000 hours with a 25,000-hour average rated life, so there's no lamp to change under a finished cabinet.

Electrical, dimming and linking
A built-in silent, non-flicker electronic LED driver runs the bar directly on 120V, 50/60Hz — no remote driver or low-voltage transformer to hide. Dimming is smooth from 100~0% with industry standard TRIAC, ELV and incandescent dimmers, and power factor is greater than 0.9 with THD under 15. The connection type is 3-wire: complete with a joiner, these no-shadow linking fixtures can be linked up to 10 units in a single run, which is how you cover a long counter without visible dark gaps. Power feed is required and accessories are sold separately.

Technical specifications
SKU: LEDBAR9-30K-90
Brand: LITELINE
Length: 9" (229 mm)
Wattage: 3W
Lumens: 230 (3000 K)
CCT: 3000 K
CRI: 90+
Voltage: 120V, 50/60Hz
Beam angle: 160°
Dimming: Yes — TRIAC / ELV / Incandescent, 100~0%
Connection type: 3-Wire
Approved location: Dry
Certification: cULus
Rated life: 25,000 hrs
Lumen maintenance: 70% @ 36,000 hrs
Power factor: >0.9
THD: <15
Operating temperature: -10°C~40°C (14°F~104°F)
Dimensions: 33 mm x 25 mm
Warranty: 3 Years

Applications, compatibility and documentation
Use it under kitchen uppers for prep lighting, inside glass display cabinets and curio shelves, over a bathroom vanity mirror cabinet, in a walk-in closet (it is suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(1), with a minimum of 6" clearance to combustible materials), along a cove, under a bar counter or behind office millwork. For runs, join units with flexible connector FBT6100-WH-3 (12"), flexible connector FBT6124-WH-3 (24") or flexible connector FBT6136-WH-3 (36") to hop over stiles and corners. Prefer a different white? The same 9" bar is offered as LEDBAR9-27K-90 in 2700 K and LEDBAR9-40K-90 in 4000 K, and longer selectable-colour versions such as LEDBAR23-CCT cover wider cabinets. The full technical PDF (LEDBAR9-30K-90 Spec Sheet) is in the Documentation tab for dimensions, accessories and installation details.
