What a louvered puck does best

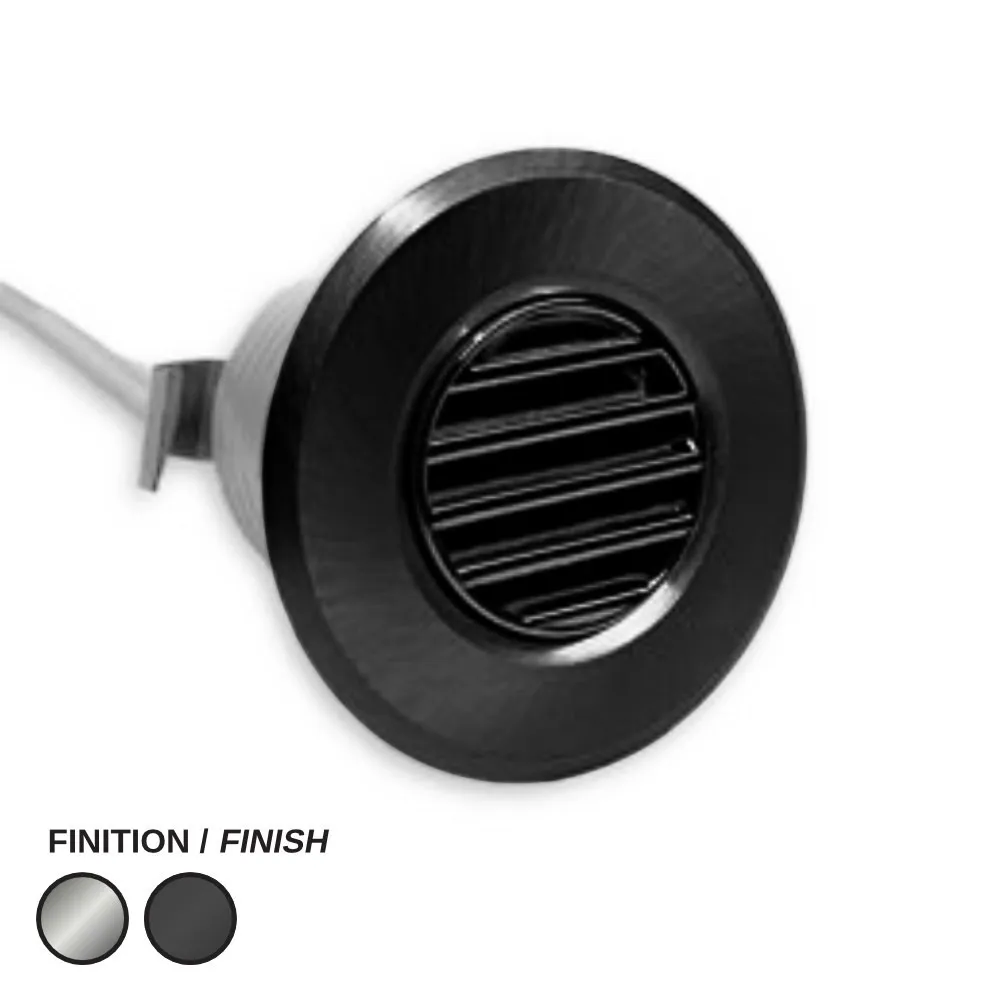

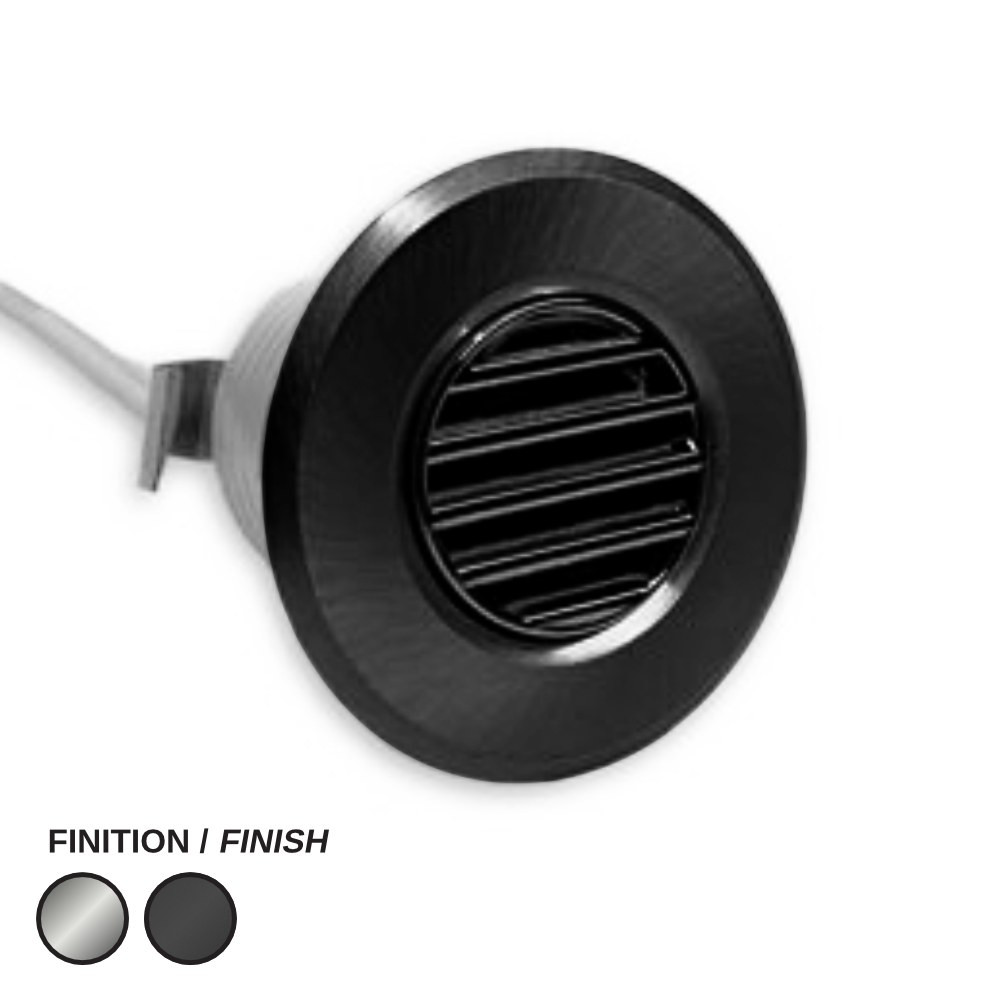

The LED PUCK #2000 PERSIENNE belongs to the PK2000 family of mini recessed pucks, offered with round, square, 1-side, 2-side and louver trims. This version wears the louver (persienne) trim in black: slats that shield the LED and direct its light, which is exactly what you want for a stair light or a path light at low height, where a bare LED would shine straight into people's eyes. The black trim blends into dark stair risers, deck boards, stone and charcoal walls, so the fixture stays in the background while its light does the work.
Light output and efficiency
This puck produces 125 lumens while consuming only 1 watt, which the spec sheet compares to a 20-watt incandescent. The 4000K colour temperature gives a neutral white that makes steps, edges and textures easy to read, and the CRI above 80 keeps wood, stone and paint looking natural. With a 25° projection angle, the light is concentrated rather than scattered, and because the puck is dimmable, you can keep pathway lighting soft at night or brighter for busy evenings.
Installation, voltage and protection
The PK2000 runs on low-voltage DC; its spec sheet lists 12/24 V DC. Power it with a suitable LED driver, never directly on household line voltage, and choose a dimmable driver and a compatible dimmer if you want dimming. It mounts in a 35 mm cutout (1.378 inches), a small hole that is easy to make in a stair riser, a deck board, drywall or cabinetry. Thanks to its IP67 protection rating, the fixture is dust-tight and protected against water, which makes it a strong choice for humid rooms and for outdoor spots such as decks and steps. Always follow local electrical code and have a qualified electrician make the line-voltage connections.
Technical specifications
SKU: LCPK2000P-1W-4000K-BK
Trim: louver (persienne), black
Voltage: 12/24 V DC
Consumption: 1 W
Light output: 125 lumens
Incandescent equivalent: 20 W
Colour temperature: 4000K
CRI: above 80
Projection angle: 25°
Protection rating: IP67
Dimmable: yes
Cutout size: 35 mm / 1.378 inches
Lifespan: 25,000 hours
Warranty: 3 years
Where to use it
Recess a series of these pucks into deck stairs or patio steps, space them along a hallway or a basement staircase as night lights, set them in the toe kick of a bathroom vanity or a kitchen island, or build them into a low garden wall. In restaurants, hotels and condo corridors, louvered step lights mark the way without glare. The spec sheet, with the technical drawing, full specifications and the complete list of trims and colours, is available in the Documentation tab.
