LED ALUMINUM PROFILE #91

Name: LED ALUMINUM PROFILE #91
Brand: LEDCO
SKU: LCPROF-91-10FT
Price: 46.97 CAD
Availability: InStock

SKU: LCPROF-91-10FT

Brand: LEDCO

Turn every corner into a clean line of light with the LED aluminum profile #91 (LCPROF-91-10FT). This anodized corner LED profile is designed for 90° angle installations, the kind you find where a cabinet meets a wall, along a staircase or inside an architectural niche. Often searched as an aluminum profile for LED strip lighting, an LED aluminum channel or an aluminum extrusion, it comes in a 10-foot length with an opal lens and standard end caps included, ready for residential and commercial projects. Also called an LED corner channel or angle profile, it hides the strip inside the corner so only the light shows.

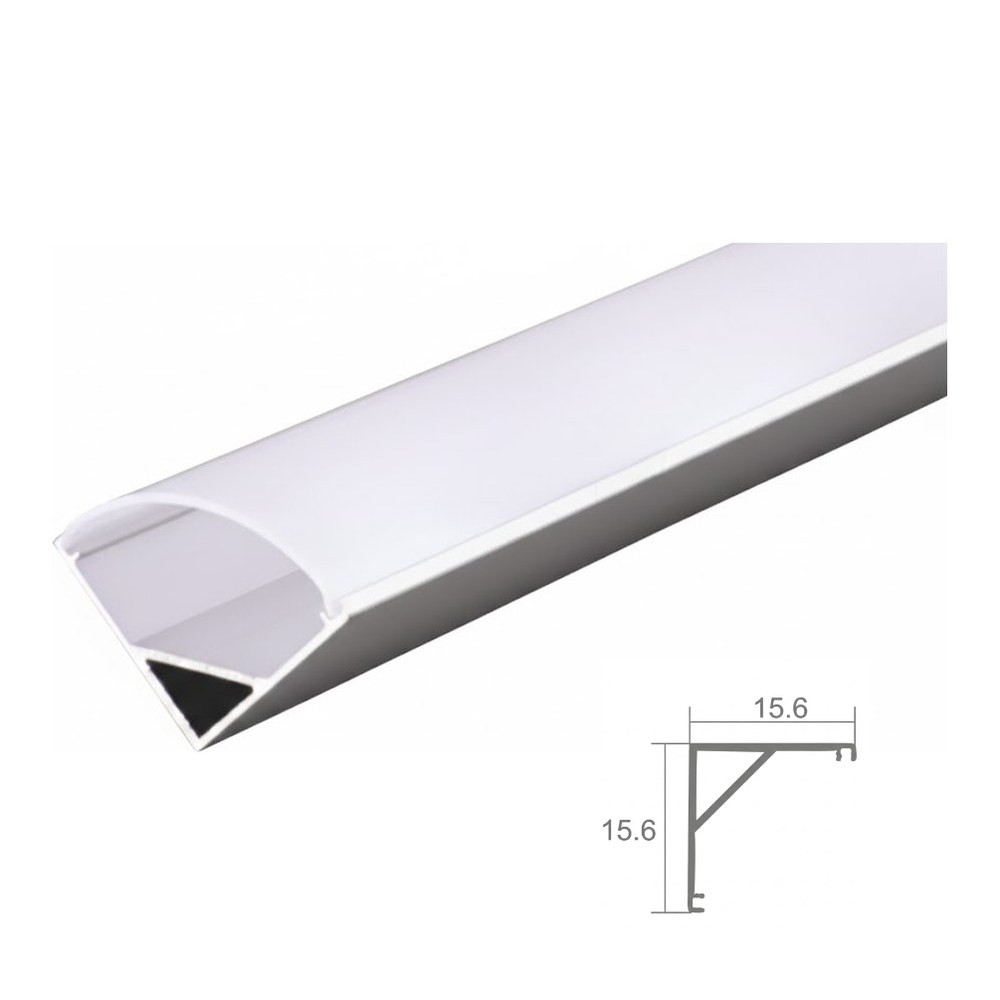

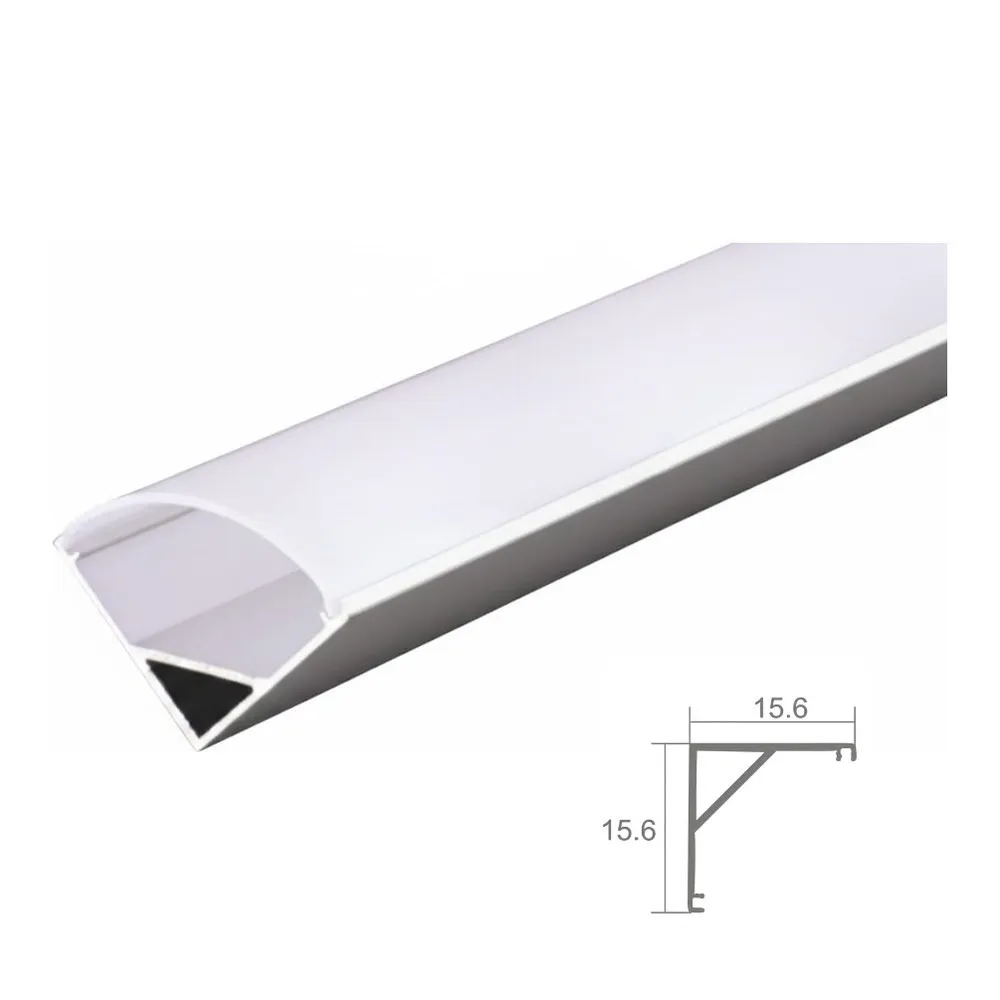

The profile is made of 6063-T5 aluminum with an anodized finish, and its compact 15.6 x 15.6 mm cross-section gives corner accent lighting a clean, modern look. The included opal lens provides smooth, diffused light output, so your strip reads as a soft, continuous glow rather than a row of dots. It is compatible with 10 mm LED strips and certified for the Canadian market. With the lens and the standard end caps supplied, you have what you need to finish every run neatly.

In a Montréal triplex kitchen, a Calgary basement staircase or a boutique niche in Ottawa, the #91 adds a precise accent right into the corner, perfect for under-cabinet lighting and stair lighting. The 10 ft length covers long cabinet runs, and the profile can be cut to fit, so one piece can often serve several shorter corners. Comparing options? See also the LED aluminum profile #13 and the LED aluminum profile #14. Light your corners today with an aluminum LED channel built for the job.

A profile made for 90° corners
Many LED channels are made for flat surfaces. The #91 is an LED corner profile designed for 90° angle installations: it mounts in the corner so the light comes from the angle itself. That makes it ideal for kitchen cabinets, stair lighting and architectural niches, where a flat channel would be hard to hide. The LCPROF-91-10FT comes in a 10 ft length, with an opal lens and standard end caps included. Because the lens and end caps come with it, you only need to add your LED strip and a compatible power supply.

Materials and finish
The body is made of 6063-T5 aluminum and has an anodized finish. Its 15.6 x 15.6 mm cross-section stays discreet in cabinetry and millwork while giving corner accent lighting a clean, modern look. At this size, the profile reads as a thin line in the corner rather than a bulky fixture. The opal lens diffuses the light for a smooth output, and the standard end caps close the profile for a finished appearance. This aluminum extrusion is also certified for the Canadian market.

Installation tips
The #91 is compatible with 10 mm LED strips. Measure your corner, cut the profile and the opal lens to length with a fine-tooth saw, then deburr the cut. Clean the inside of the channel before applying the strip, fit the lens and close each end with the included end caps. Plan the power feed at one end of the run and hide the power supply in a cabinet or ceiling space. For stair lighting, install one profile per step or run it along the staircase, keeping the connections accessible.

Technical specifications
SKU: LCPROF-91-10FT
Type: corner LED profile, 90° angle mounting
Length: 10 ft
Cross-section: 15.6 x 15.6 mm
Material: 6063-T5 aluminum
Finish: anodized
Lens: opal, included
End caps: standard, included
LED strip compatibility: 10 mm
Certification: certified for the Canadian market

Applications and documentation
Use the #91 under the corner of kitchen cabinets, along staircases, inside architectural niches, bookcases and display units, or wherever two surfaces meet at 90°. In commercial spaces, it can outline niches in hotel lobbies, restaurants and retail displays. It is a simple way to give LED strip lighting a built-in look in residential and commercial projects across Canada. The technical spec sheet is available in the Documentation tab. Comparing profiles? Also see the LED aluminum profile #145.
