LED ALUMINUM PROFILE #96

Name: LED ALUMINUM PROFILE #96
Brand: LEDCO
SKU: LCPROF-96-10FT
Price: 72.97 CAD
Availability: InStock

SKU: LCPROF-96-10FT

Brand: LEDCO

Corners are where many lighting projects get tricky, and this LED aluminum profile from the 96 Series is made to solve exactly that. It is an aluminum extrusion designed for inner angle embedded installation, so your LED strip tucks neatly into an inside corner and the light comes out of the angle instead of hanging from a flat surface. With its opal diffuser, this LED aluminum channel creates a soft, finished glow for cabinet corners, shelving niches, display cases and custom millwork in homes and businesses.

The LCPROF-96-10FT is made of T-6063 aluminum with an anodized silver finish and measures 46 x 24.4 mm (1.811 x 0.960 in). It accepts LED strips with a PCB width of 8 mm or less, and its opal diffuser spreads the light over a 120° beam angle for smooth, even coverage. The spec sheet lists PC end caps as accessories (2 pcs/meter), an IP40 rating for dry locations and a 3 m package, a handy length for long cabinet runs and shelving walls.

In Canadian kitchens, basements and condos, where storage walls and built-ins are everywhere, this aluminum profile for LED strip lighting adds light right where shadows collect: inside the corners of upper cabinets, along the angle of a bookcase or at the back of a glass display. Retail stores, bars and reception areas use it to highlight products and counters with a discreet, built-in line of light. Planning several shapes? Also see the LED aluminum profile #14 and the LED aluminum profile #145, then light up your corners with the 96 Series.

Designed for the inside corner

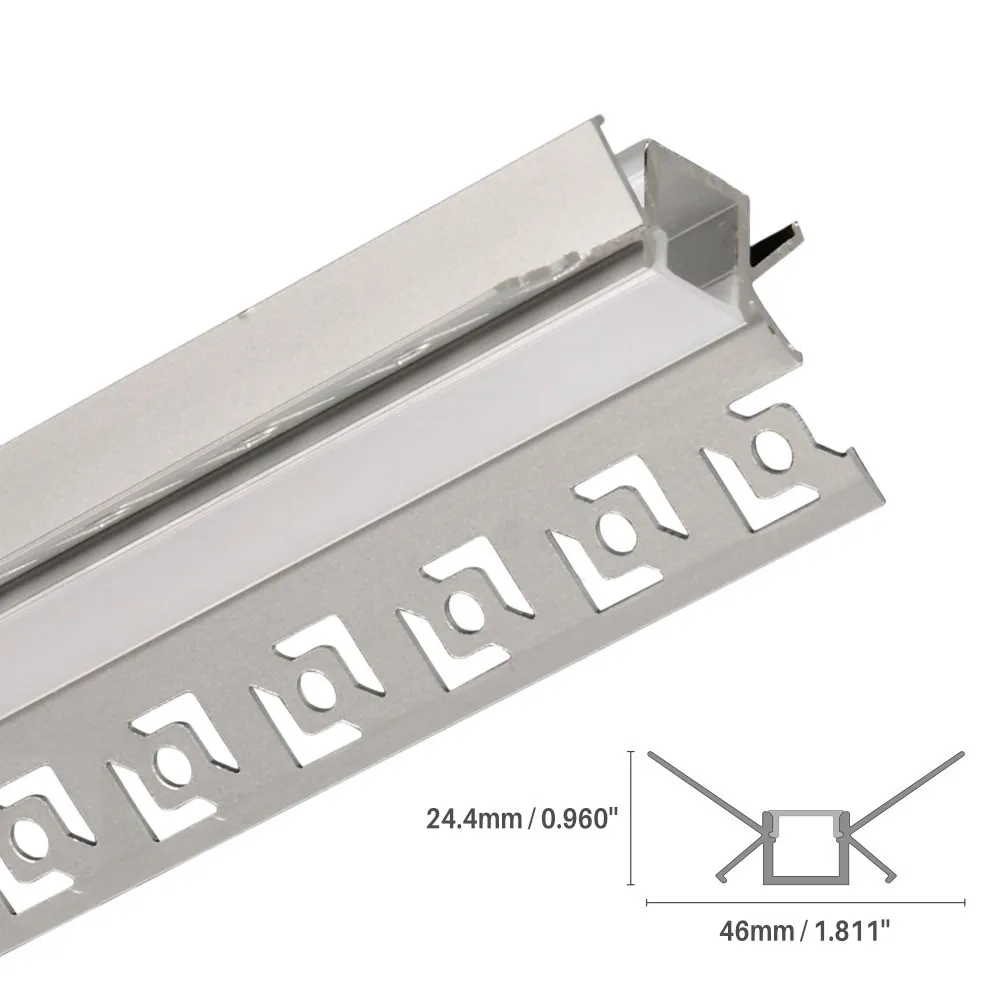

The 96 Series is an inner corner LED profile: the installation section of its spec sheet calls for inner angle embedded installation. Set into the inside angle of cabinetry, shelving or a niche, it turns an awkward corner into a clean line of light. The housing is made of T-6063 aluminum with an anodized silver finish, and the 46 x 24.4 mm (1.811 x 0.960 in) section is detailed on the technical drawing, along with the other dimensions you need to plan the recess.

Soft, even light
The opal diffuser covers the LED strip and softens its light, while the 120° beam angle spreads it across the surfaces around the corner. The result is a comfortable glow that suits both living spaces and commercial displays. Choose the colour temperature of your LED strip according to the mood: warmer light for bedrooms, living rooms and closets, cooler light for kitchens, workshops and retail displays. Behind the opal diffuser, the strip reads as a softer line of light.

Electrical and installation details
Use LED strips with a PCB width of 8 mm or less and confirm the width before you start. The profile is rated IP40 for dry locations, which makes it right for indoor rooms such as kitchens, closets, offices and finished basements, but not for showers or outdoor spaces. PC end caps (2 pcs/meter per the spec sheet) close the ends for a tidy finish. Prepare the recess, route the wires toward an accessible driver location and have a qualified electrician complete the permanent connections.

Technical specifications
Model: LCPROF-96-10FT
Series: 96 aluminum profile
Package: 3 m
Dimensions: 46 x 24.4 mm (1.811 x 0.960 in)
Housing material: T-6063 aluminum
Housing colour: anodized silver
Cover: opal diffuser
Beam angle: 120°
IP rating: IP40 (dry location)
Compatible LED strips: PCB width of 8 mm or less
Accessory: PC end caps, 2 pcs/meter
Installation: inner angle embedded

Applications and documentation
Picture the inside corners of a kitchen hutch glowing in a Saguenay home, a lit niche in a Mississauga condo, a jewellery display case in a Victoria boutique or the corner of a reception desk in a Moncton clinic. The 96 Series brings a neat, built-in look to each of these spaces. The spec sheet, with the technical drawing and full specifications, is in the Documentation tab of this page.

Technical Files
