Built to be set into the surface

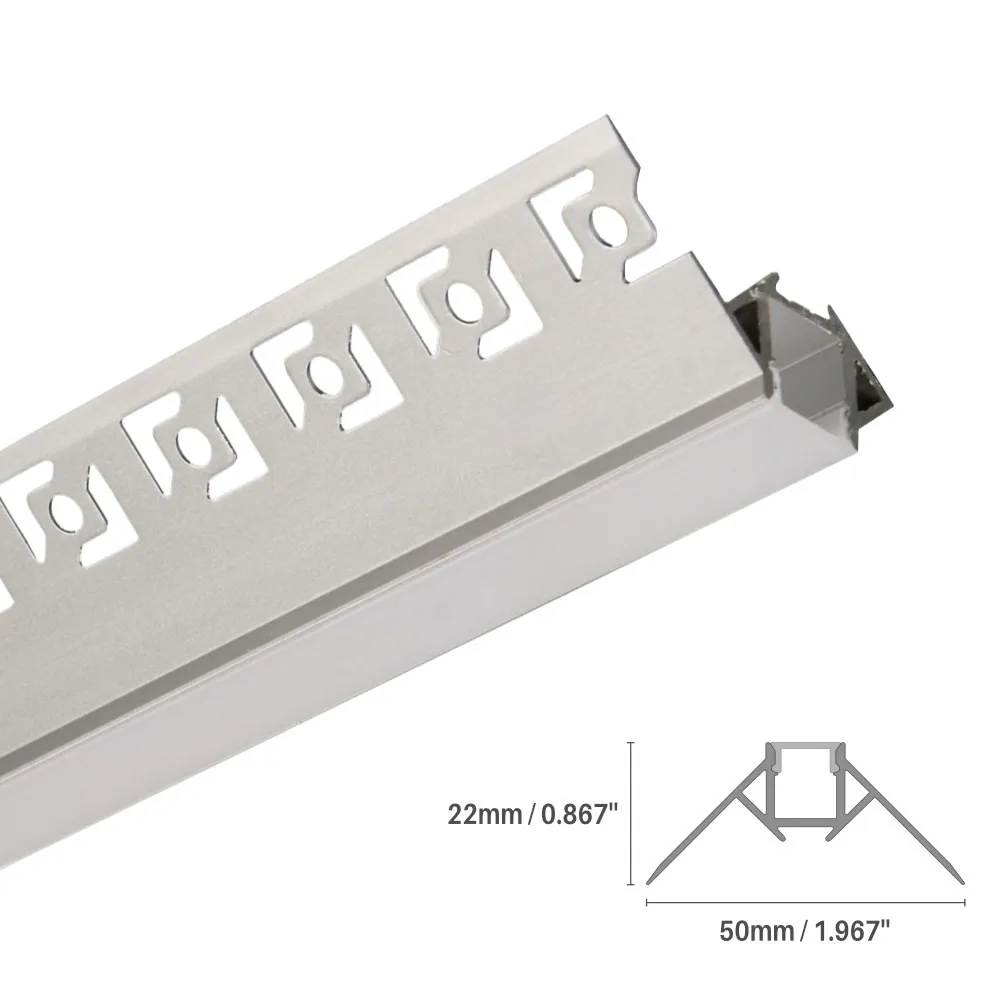

The 95 Series is an embedded aluminum profile: according to the installation section of its spec sheet, it is designed for angle embedded installation, which lets the light line integrate into cabinetry, shelving or millwork instead of sitting on top of it. The housing is made of T-6063 aluminum with an anodized silver finish for a clean, professional look in visible installations. With its 50 x 22 mm (1.967 x 0.867 in) section, the profile easily houses a slim LED strip, and the technical drawing on the spec sheet gives the dimensions you need to plan the cut-out.
Light quality
An opal diffuser covers the strip and softens the light, while the 120° beam angle spreads it widely across a counter, a shelf or a display. The result is a uniform, comfortable glow that looks finished and professional, even when the profile is in plain view. Pair it with an LED strip whose colour temperature and output suit the space: warmer tones for living areas and closets, cooler tones for workshops and commercial displays. Because the strip is hidden behind the opal diffuser, the eye sees a softer line of light.
Electrical and installation details
The profile is made for LED strips with a PCB width of 8 mm or less, so check the width of your strip before ordering. It carries an IP40 rating and is meant for dry locations only; for showers, bathrooms or outdoor use, choose a product rated for those conditions. PC end caps are listed on the spec sheet (2 pcs/meter) to close the ends neatly. Plan the cut-out and the wire path first, place the driver where it stays accessible, and have a qualified electrician make the permanent connections.
Technical specifications
Model: LCPROF-95-10FT
Series: 95 aluminum profile
Length: 10 ft
Dimensions: 50 x 22 mm (1.967 x 0.867 in)
Housing material: T-6063 aluminum
Housing colour: anodized silver
Cover: opal diffuser
Beam angle: 120°
IP rating: IP40 (dry location)
Compatible LED strips: PCB width of 8 mm or less
Accessory: PC end caps, 2 pcs/meter
Installation: angle embedded
Applications and documentation
Think of a recessed line under kitchen upper cabinets in a Laval bungalow, glowing bookshelves in a Kelowna condo, a lit display counter in a Regina boutique or a clean light line along a walk-in closet. The 95 Series gives each project a tidy, built-in finish. The spec sheet, with the technical drawing, specifications and installation details, is available in the Documentation tab of this page.
