LED ALUMINUM PROFILE #81 - LCPROF-81-8FT-BK-LENS-OPAQ

Why choose the opaque-lens version
An open channel shows every single LED on the strip. An opaque lens turns those points into a soft, even glow, which makes a real difference when people look straight at the fixture. That is why this version of the aluminum profile #81 is ideal above desks, reception counters, dining tables and retail displays, where the line of light sits right in the field of view. The lens also closes the channel for a neat, finished appearance from every angle.

Large-format aluminum construction
The #81 is a large-format suspended LED profile designed for commercial and architectural projects. Its 25×25mm square cross-section leaves generous room inside for a wide range of LED strips and gives the heat produced by the LEDs a large aluminum mass to spread into, for excellent heat dissipation. Made of 6063-T5 aluminum and finished in black, it has the clean, solid look expected from an architectural fixture, not a makeshift strip installation.

Installation tips
Choose between surface mounting, directly on the ceiling or wall, and suspended mounting with dedicated suspension kits for a floating line of light. Plan the location of your LED driver and the route of the power feed first, install and test the LED strip inside the channel, then put the opaque lens in place to close the profile. For any line-voltage connection, call on a licensed electrician. Projects with special dimensions or requirements can benefit from the custom fabrication that is available.

Technical specifications
Model: LCPROF-81-8FT-BK-LENS-OPAQ
Series: Aluminum profile 81 series
Type: Suspended square LED profile

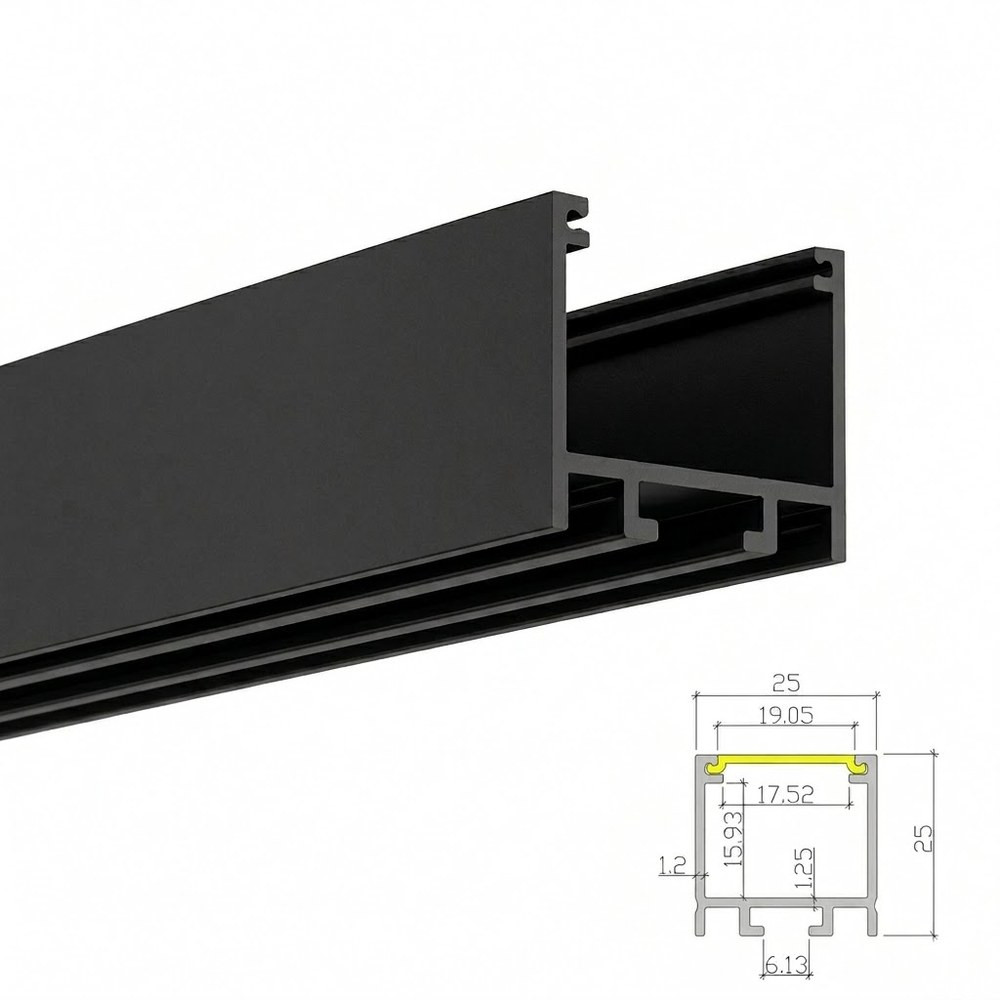

Cross-section: 25×25mm
Length: 8 ft
Profile finish: Black
Lens: Opaque
Material: 6063-T5 aluminum
Mounting: Surface or suspended
Options available: Suspension kits, custom fabrication
Certification: Certified for the Canadian market

Applications and documentation
Think of suspended linear lighting above an open-plan office, a line of light over a restaurant bar, a modern accent above a kitchen island or a clean look in a showroom. At home, it also shines over a home office desk or along the ceiling of a finished basement family room. The spec sheet with the technical drawing is available in the Documentation tab to help you plan dimensions and mounting. For other profiles of the same family, see the LED aluminum profile #13.
