Built to bend, built to lastThis

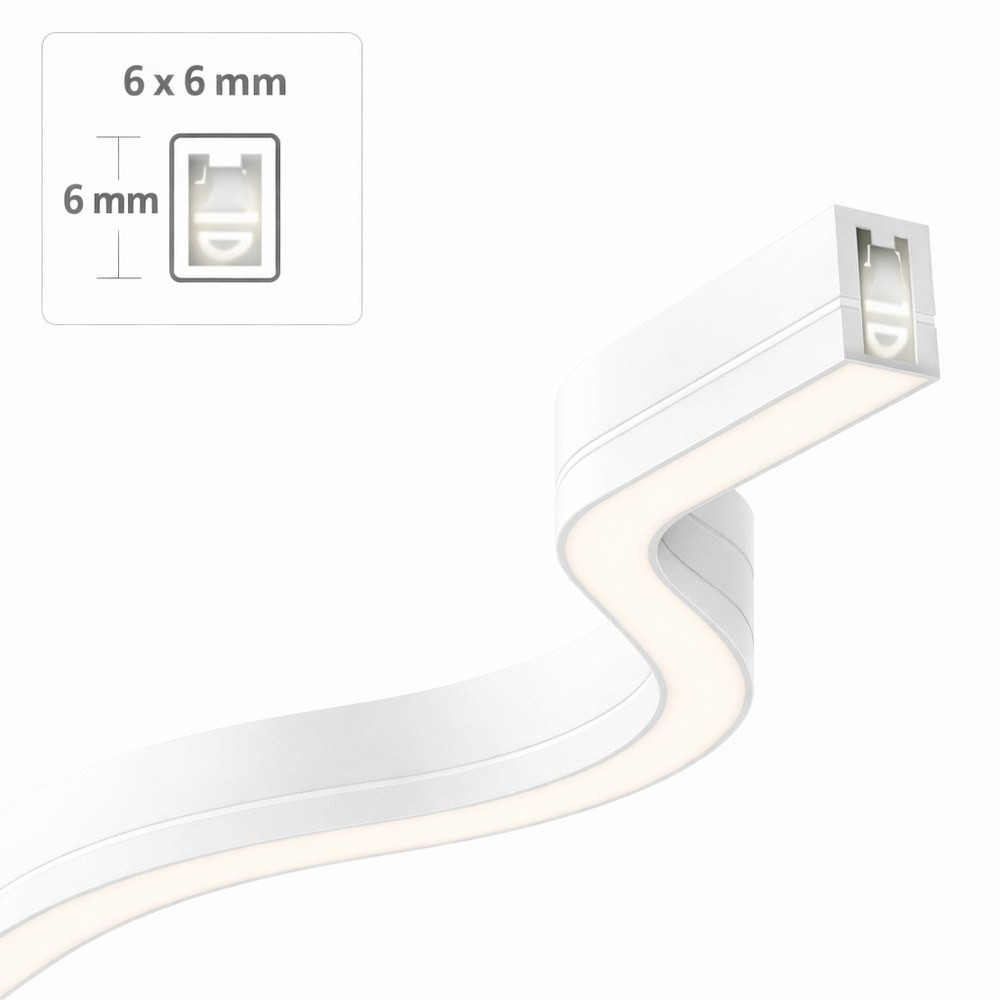

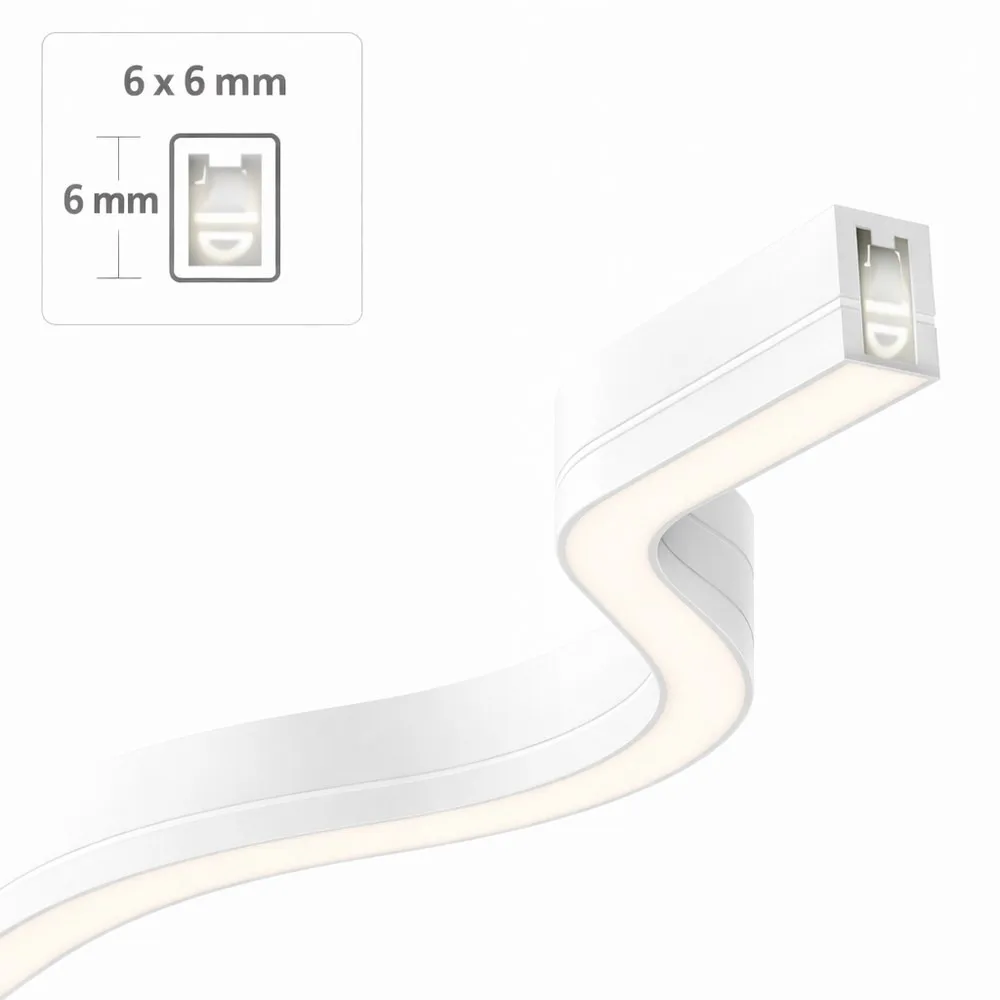

LED neon flex uses a compact 6x6 mm square body that diffuses the LEDs into one smooth, dot-free line — the look of classic neon tubing without the glass, the gas or the fragility. It bends side to side along its length, so you can follow curves, corners, letters and radius coves by hand, then hold the shape with mounting clips. The strip is
cuttable every 27.78 mm, which means you trim it right on the job to the exact length of a cabinet, a stair stringer or a sign, and the
IP67 protection rating keeps moisture and dust out of the diodes in damp and splash-prone locations.
Light quality you can trustAt
3000K, the light is a warm white that flatters wood, brick, brass and warm paint — the tone most people want in a living space, a restaurant or a hospitality lobby. With
CRI 90+ and an SDCM under 5, colours read accurately and the white stays visually identical from one section to the next, an important detail when a single design runs across several reels. Output is 770 lumens per metre at 11W/m on the platform, with an efficacy of 70 LM/W and a 60º lighting angle that concentrates the glow where the line is aimed rather than spilling it across the room.
Technical specificationsSKU: LCLS24VFLX-6X6-6W-30K-30M
Power: 6W per metre
Voltage: 24V DC, constant voltage
Colour temperature: 3000K
CRI: 90+
SDCM: <5
Lighting angle: 60º
Dimensions: 6x6 mm
Cut size: 27.78 mm
Max length: 5 m
Dimmable: yes — DMX, PWM, 0-10V, MLV incandescent
Protection rating: IP67
Operating temperature: -20°C to 60°C
Lifespan: 50 000+ hours
Wiring and installationPower the run with a
24V DC driver and always wire in parallel — daisy-chaining past the recommended length causes visible voltage drop and, over time, damages the strip. Respect the
5 m maximum run per feed; for a longer continuous line, use a middle connection (a feed wire brought to the centre of the strip) or a double-end connection, which powers the flex from both sides and doubles the maximum run. Two identical power supplies can also feed each end. At each cut, connect red to positive and black to negative on the PCB, then apply glue around and inside the end cap, slide it on in the direction of the arrow, seal the wire outlet and wipe off the excess — repeat at the opposite end. Accessories include end caps with horizontal, vertical or left/right outlets, blank end caps, stainless steel rings and fixing clips; screw the clips in place with M3 screws and press the flex in with the light-emitting side facing out. Being
dimmable on DMX, PWM, 0-10V and MLV incandescent systems, it drops easily into both simple residential dimming and full architectural control.
Applications and documentationThink under-cabinet and toe-kick lines in a kitchen, a glowing perimeter in a coffered ceiling, stair nosing in a condo, a backlit bathroom mirror, a bar front in a restaurant, window lettering for a boutique, gym wall graphics or a reception logo in an office. With an operating range of
-20°C to 60°C, it also handles garages, workshops and unheated display windows across Canadian winters. Compare formats with the
Neon flex 6W/m 6x6mm, the
Flex neon 3x6mm 24V 9.6W 27K 30 metres or the wider
Flex neon anti-glare 10x10mm. The technical PDF with the full specification table, connection guides and step-by-step installation drawings is in the Documentation tab.
