Slim profile, true neon look

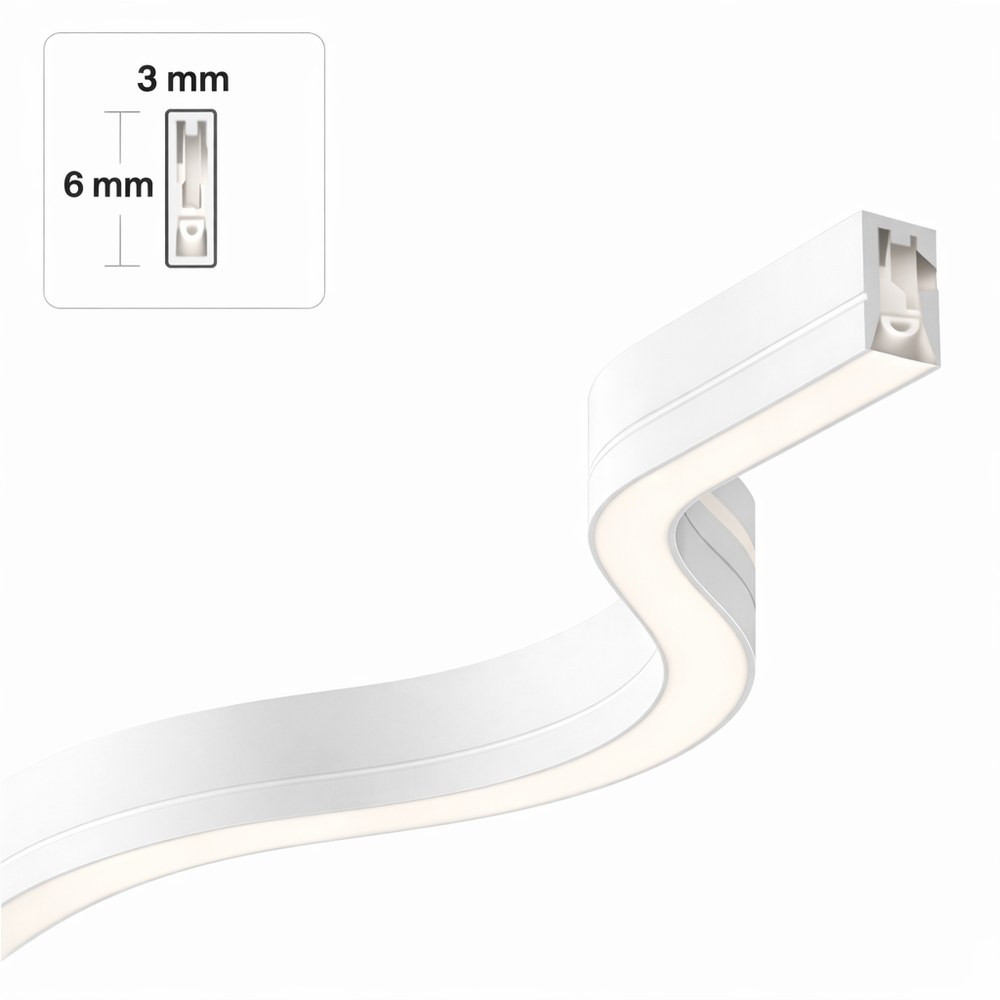

With its compact 3x6 mm cross-section, this mini LED neon is ideal for fine lettering, detailed logos and delicate outlines where a larger profile would look heavy. Its continuous glow recreates the look of glass neon while running on low-voltage 24V DC, and the warm white tone gives signs, menu boards and décor a cozy, inviting feel.
Light quality
At 9.6W/m, it delivers 250 lm per metre (26 lm/W), a soft, eye-catching brightness perfect for signage and décor. The CRI of 90+ keeps the warm white rich and pleasant, the 60° lighting angle concentrates the light on the face of the neon, and dimming with a compatible 24V dimmer or controller lets you match a quiet lounge or a busy storefront.
Installation guidelines
Installation must be done by a qualified electrician, with the power off. Cut only at the marked cutting lines (scissor logo on the PCB), every 33.33 mm. Bend it only perpendicular to the PCB, with a minimum bending diameter of 60 mm, and never twist, stretch or pull it. Keep each run to 5 m maximum, and choose a 24V DC driver with spare capacity rather than running it at full load. Since it draws less than 14.4W/m, no extra heat sink is needed on an aluminium profile. Seal every splice with proper insulation and waterproofing.
Applications and documentation
Use this LED neon light for shop and restaurant signs, logos, wall lettering, bars, game rooms, event backdrops, retail displays and architectural outlines. Its IP66 rating suits damp and exterior locations within its -20°C to 45°C operating range. It is CE marked and RoHS compliant. The technical spec sheet (PDF), with handling instructions, is available in the Documentation tab.
Technical specifications
Model: LCLS24VFLX-3X6-9.6W-27K-30M
Size: 3x6 mm
Voltage: 24V DC
Power: 9.6W/m
Output: 250 lm/m (26 lm/W)
CRI: 90+
Lighting angle: 60°
Cut size: 33.33 mm
Max run per feed: 5 m
Min. bending diameter: 60 mm
Rating: IP66
Lifespan: 50,000+ hours
Reel: 30 m
