NEON FLEX 8W/M - CABINET

Name: NEON FLEX 8W/M - CABINET
Brand: LEDCO
SKU: LCLS24VFLX-CAB-8W-30K
Price: 169.97 CAD
Availability: InStock

SKU: LCLS24VFLX-CAB-8W-30K

Brand: LEDCO

Turn every cabinet, shelf and display case into a soft glowing line with the FLEX NEON 8W/M - CABINET, a miniature LED neon flex built for the tight spots regular strips can't handle. Call it what you like — flexible LED neon rope light, led flex neon, neon led, or simply a under cabinet light — this 10 mm × 10 mm silicone profile bends where you need it, hides the dots and leaves one clean, continuous line of light. It's the go-to for kitchen cabinets, custom millwork, bathroom cabinet lighting, pantry shelving, retail display cases, bars and reception desks, and it works just as well for small signage and accent lines where a classic LED neon sign look is wanted without the bulk of glass tubing.

Under the silicone you get 130 LEDs per metre, a density high enough that the light reads as a solid beam instead of a row of dots. It runs on 24V DC at only 8 W per metre and delivers 420 lm/m at 3000K, that warm white that flatters wood, quartz and stone and keeps a kitchen or a display feeling inviting rather than clinical. Colour rendering comes in at CRI >80, so cabinet finishes, food, glassware and merchandise keep their true colour. The body measures 10 mm × 10 mm (0.39" × 0.39") with side flanges that conveniently mask small installation imperfections, and the flex offers free cutting so you size each run to the exact cabinet. It's backed by a 3-year warranty. SKU: LCLS24VFLX-CAB-8W-30K.

This is the detail that makes a renovation look professionally finished: under upper cabinets in a Québec kitchen, inside a glass display cabinet, along a floating vanity, under a stair nosing, behind a bar counter or around a boutique's shelving. Because it's low voltage 24V, it's easy for contractors and cabinetmakers to integrate during install, and safe to tuck into millwork where space is scarce. Need a bigger, brighter line for coves, signage or exterior-style accents? Have a look at the Neon flex 9.6W/m - 3x6mm, the Flex neon 6W/m - 6x6mm or the Flex neon anti-glare 9.6W/m - 10x10mm. Add this cabinet flex to your project and give your millwork the glow it deserves.

Built small on purpose
The FLEX NEON 8W/M - CABINET is moulded in flexible silicone in a 10 mm × 10 mm (0.39" × 0.39") square section — about as compact as a neon flex gets. That matters inside furniture, where a channel is often only a few millimetres deep and a bulky strip simply won't fit or will show its reflection on the countertop. The silicone body bends along curves and corners in the horizontal plane, and the side flanges built into the profile hide the small gaps, glue lines and saw marks that are part of real-world cabinet work. The result is a seamless line of light instead of a visible strip with hot spots.

Light quality you can trust in a kitchen
With 130 LEDs/m, the emitters sit close enough together that the diffused silicone blends them into one uniform band — no scalloping on the backsplash, no dotting on glass shelves. The 3000K warm white colour temperature was chosen for living spaces: it warms up white cabinetry, brings out the grain in oak and walnut, and makes food and merchandise look appetizing. A CRI greater than 80 keeps colours honest, which is exactly what you want over a cutting board, inside a jewellery case or above a bar's bottle display. At 420 lm/m, it delivers a genuine task-level glow under upper cabinets while staying gentle enough for ambience.

Technical specifications
SKU: LCLS24VFLX-CAB-8W-30K
Input voltage: 24V DC
Power: 8 W/m
Luminous flux: 420 lm/m
Colour temperature: 3000K
CRI: >80
LED density: 130 LEDs/m

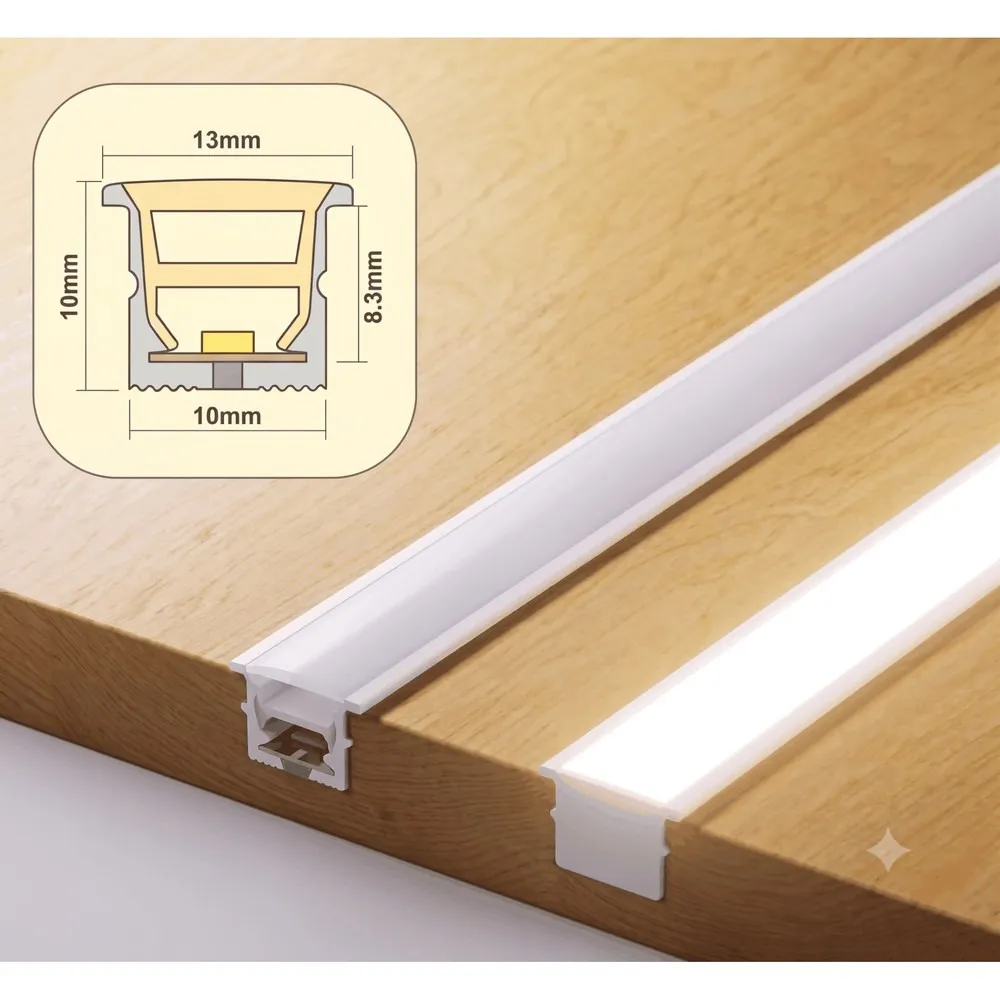

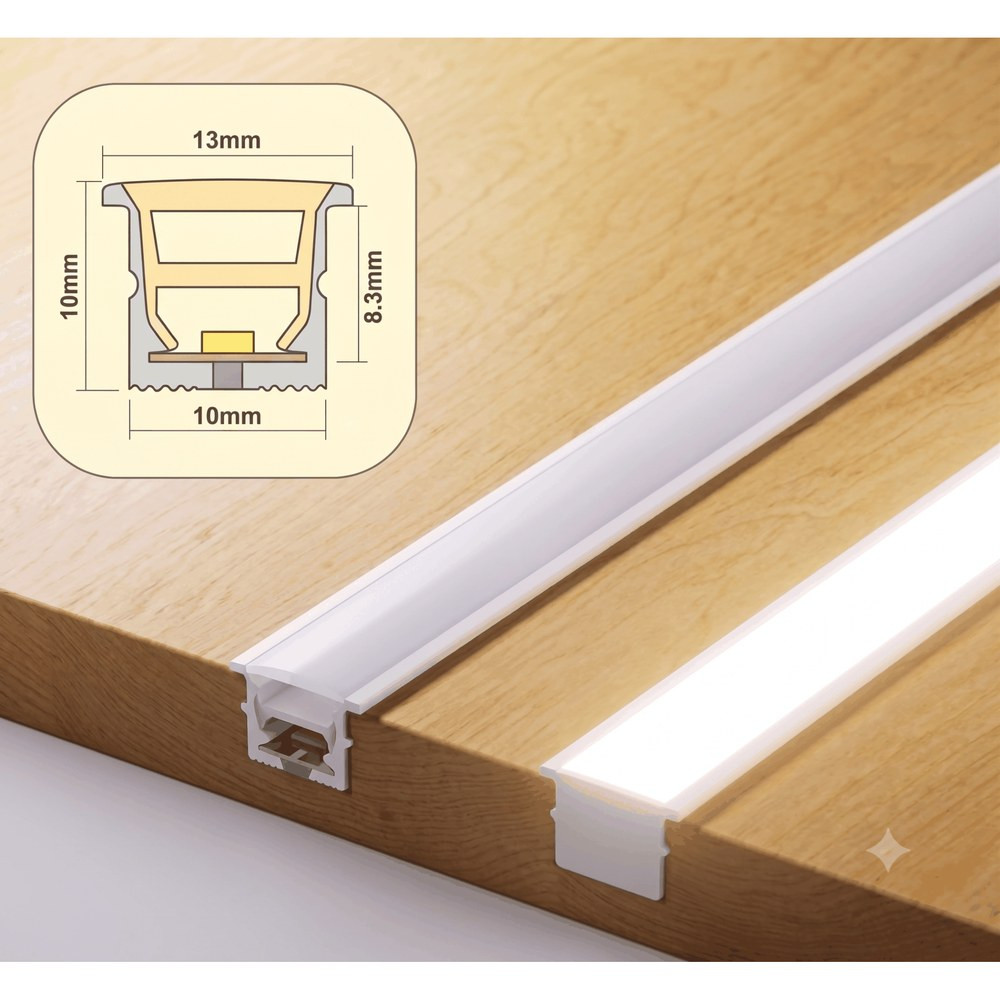

Dimensions: 10 mm × 10 mm (0.39" × 0.39")
Cutting: free cut
Warranty: 3 years

Wiring and installation
This is a 24V DC low-voltage product, so it needs a LED driver / power supply sized for the total load: multiply 8 W by the number of metres installed and choose a driver with comfortable headroom. Plan the driver location during the cabinet layout — inside a toe-kick, above a bulkhead or in an adjacent closet — and keep the low-voltage run short and tidy. The free cut design lets you trim each section to the exact cabinet width, and runs should be fed and connected according to the polarity marked on the flex. Clean and dry the mounting surface before installing, avoid tight vertical bends or twisting the profile, and never power the flex while it is still coiled. If you want the light aimed rather than spilling forward, recess it into a shallow groove at the front edge of the cabinet bottom.

Applications and documentation
Think kitchen under-cabinet lighting, glass display cabinets, open shelving, floating vanities and medicine cabinets, wardrobe and pantry interiors, stair nosings, bar fronts, reception desks, retail showcases and small illuminated lettering where a LED neon sign effect is the goal. Contractors and cabinetmakers across Canada use it as the finishing touch that makes custom millwork look built-in rather than added on. Need more output, a different colour temperature or a larger profile for coves and signage? Compare with the Flex neon 3x6mm 24V 9.6W 40K and the Flex neon 6W/m - 6x6mm 40K. The complete spec sheet (PDF) for this model is available in the Documentation tab for your submittals and electrical plans.
