ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK08-BK

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK08-BK
Brand: LITELINE
SKU: ATK08-BK
Price: 107.97 CAD
Availability: InStock

SKU: ATK08-BK

Brand: LITELINE

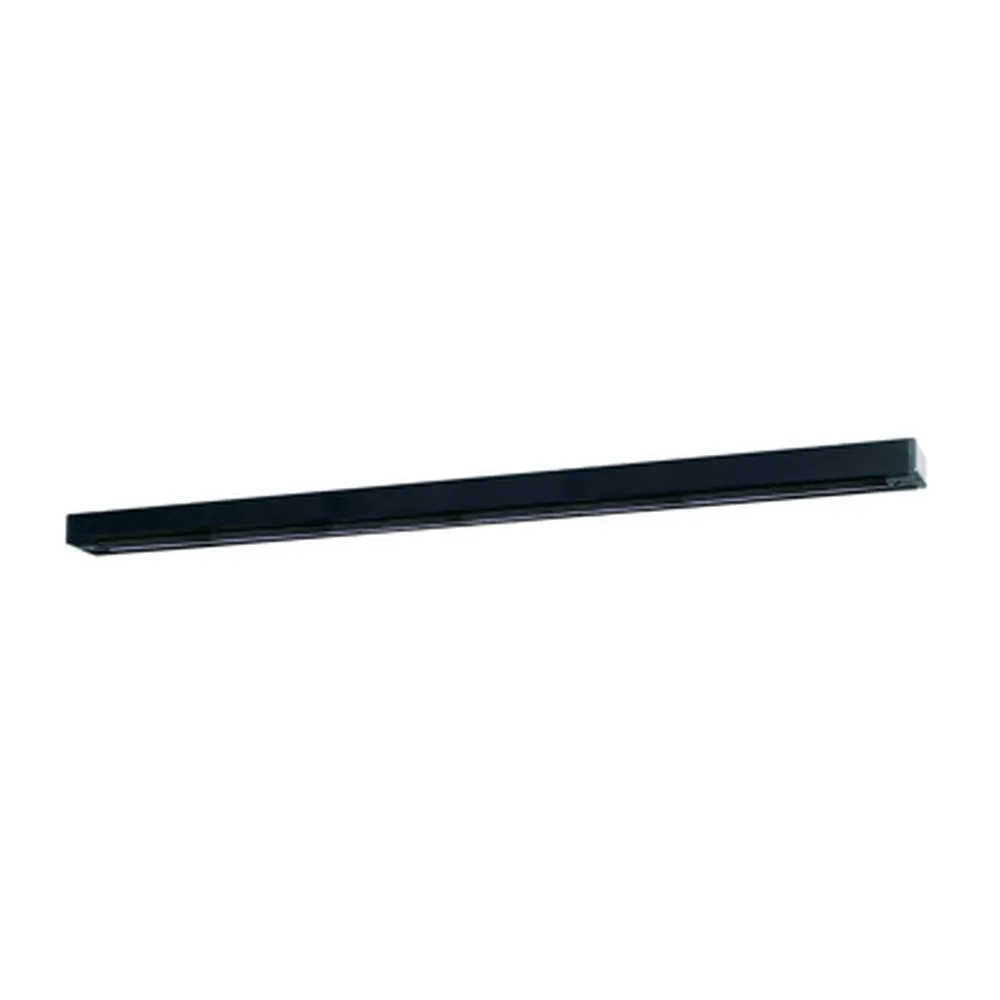

Give your room the lighting flexibility it deserves with the ATK Series single circuit track from LITELINE, model ATK08-BK, an 8-foot extruded aluminum track section in a clean black finish. People call it a lot of things — track lighting rail, light bar, track head rail, ceiling track — but it all comes down to the same idea: one continuous power channel on your ceiling that lets you place, aim and move your light wherever it's needed, whenever the layout changes. The ATK series is built for use with A-Line track fixtures, so you choose the heads, the number of them and the spacing, and you get a lighting plan that adapts instead of one that locks you in. Whether you're finishing a basement, lighting a retail display wall, brightening a kitchen island or setting up an office, this is the backbone of a clean, professional commercial LED lighting installation.

Construction is straightforward and solid: extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove on the face of the track that tells you exactly where the grounding conductor sits — a small detail that makes installation faster and safer. The single circuit power distribution system handles a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper electrical conductors concealed inside the low-profile thermo-plastic track section, so you can load up a serious run of heads without worrying. The section measures 5⁄8" (16 mm) high by 1 3⁄8" (35 mm) wide and, for the ATK08, the length excluding end caps is 2340 mm. It's cULus listed and backed by a 5 year warranty.

This black track rail shines in boutiques and showrooms where merchandise needs to be highlighted, in galleries and restaurants, in offices and conference rooms, and just as well in homes — kitchens, living rooms, hallways and finished basements across Canada. It's surface mounted using the supplied mounting hardware, and suspended mounting is available with accessories ordered separately. It's compatible with all A-Line and Juno style track fixtures, accessories and connectors: pair it with the 8.5W LED track head ATF7509-DTW-38-BK for a matching black run, or extend your layout with a 4-foot ATK04-BN section. Build your run today.

Built to last, built to install
The ATK series is an extruded aluminum track designed for use with A-Line track fixtures, available in 2', 4', 6', 8' and 12' nominal lengths. This ATK08-BK is the 8-foot version in black. The extrusion is constructed of extruded aluminum with a PVC bus bar support that holds 12 gauge round bus bars, and a polarity groove runs along the face of the track to indicate the location of the grounding conductor. That groove is a real time-saver on site: you can confirm orientation at a glance before joining sections, so every fixture on the run faces and powers correctly the first time.

Electrical and installation details
This is a single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, and the copper electrical conductors are concealed inside a low-profile thermo-plastic track section — clean looking and safe. The track is surface mounted using the supplied mounting hardware, directly to the ceiling or to a suitable structure. If you want the track to float below the ceiling, suspended mounting is available with accessories ordered separately, such as hollow stem rods, sloped ceiling canopy kits or aircraft cable suspension kits. Power feeds, connectors and current limiters are ordered separately too, which lets you configure straight runs, L, T or X layouts, live end or center feeds, and plug-in cord feeds where no junction box is available.

Technical specifications
SKU: ATK08-BK
Brand: LITELINE
Type: Single circuit extruded aluminum track
Nominal length: 8'
Length excluding end caps: 2340 mm
Profile: 5⁄8" (16 mm) x 1 3⁄8" (35 mm)
Bus bars: 12 gauge round, on PVC bus bar support
Voltage: 120V
Maximum capacity: 20 Amps (2400 watts per circuit)
Mounting: Surface, with supplied hardware; suspended with accessories
Colour: BK — Black
Listing: cULus listed
Warranty: 5 Years

Compatibility and fixture choices
The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which opens up a wide catalogue of heads: APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, DINE, FOCUS and the Flight family, among others. For a matched black installation, the 8.5W LED track head ATF7509-DTW-38-BK drops right in; if your ceiling is white, the white ATF7509-DTW-38-WH head keeps everything discreet. The same 8-foot section is also offered in other finishes — ATK08-WH in white and ATK08-SL in silver — so you can match trim and ceiling colours throughout a project.

Real projects and documentation
In retail, run the track parallel to a display wall and space your heads evenly to wash the merchandise; in a restaurant, aim narrow beams at tabletops; in a home, run it above a kitchen counter or along a hallway with artwork. For a 12-foot run, two sections joined with a connector will get you there. Because heads slide and lock anywhere along the channel, you can re-merchandise a store or rearrange a living room without touching the wiring — that's the practical advantage of track lighting heads over fixed pot lights. The full technical PDF (ATK08-BK Spec Sheet) is available in the Documentation tab, with dimensional drawings, the ordering guide and the complete list of accessories, connectors, power feeds and current limiters.
