ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-BK

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-BK
Brand: LITELINE
SKU: ATK04-BK
Price: 50.97 CAD
Availability: InStock

SKU: ATK04-BK

Brand: LITELINE

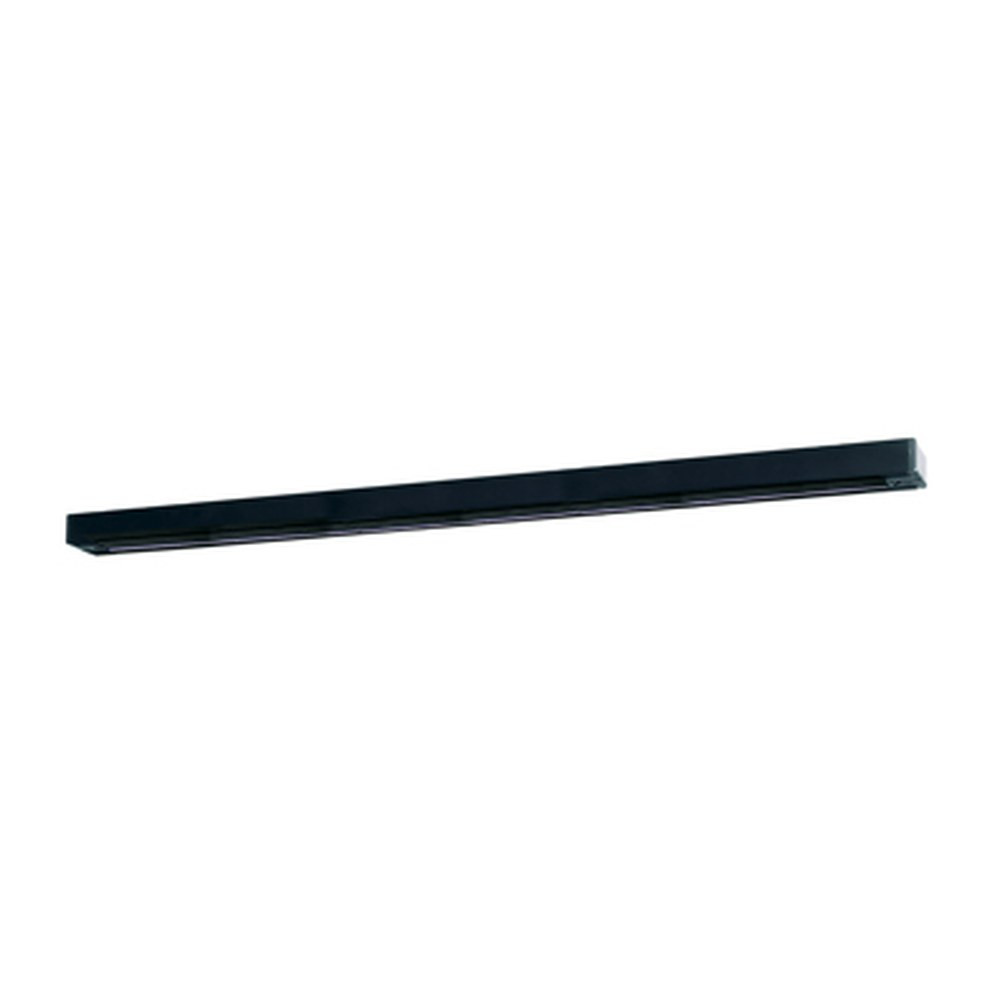

Give your room the light it deserves, exactly where you want it. The ATK04-BK is a 4' single circuit track lighting rail from LITELINE, part of the ATK series of extruded aluminum tracks made for A-Line track fixtures. People call it a lighting track, a track rail, a track bar or simply the "rail" that track lighting heads clip into — whatever you call it, it is the backbone of the system. Available in 2', 4', 6', 8' and 12' nominal lengths, this one is the 4' section in a black finish (BK), a favourite for kitchens, galleries, retail floors and offices where the light has to be aimed at a counter, a display, a painting or a workstation and re-aimed later without touching the ceiling wiring.

Built from extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, the ATK series is rigid, clean-looking and designed to last: a polarity groove runs along the face of the track to show where the grounding conductor sits, so orientation is obvious during installation. Electrically, it is a single circuit power distribution system with single hot and neutral conductors rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper conductors concealed in a low-profile thermo-plastic track section. The ATK04 measures 5⁄8" (16mm) by 1 3⁄8" (35mm) in section, and the rail is surface mounted using the supplied mounting hardware; suspended mounting is available with accessories ordered separately. It is cULus listed and backed by a 5 year warranty.

This 4' black track is at home above a kitchen island, along a hallway of framed photos, over a boutique's shelving, in a café, a salon, a showroom or a home office — anywhere a Canadian renovation or fit-out needs flexible, aimable commercial LED lighting. The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, so you can populate it with heads such as the 8.5W LED track head ATF7509-DTW-38-BK for a matching black run, or the 8.5W LED track head ATF7509-DTW-38-WH. Prefer another finish? The same 4' section comes as ATK04-BN in brushed nickel and ATK04-WH in white. Plan your run, add your connectors and power feed, and start aiming light where it counts.

Construction and finish
The ATK series is an extruded aluminum track built for use with A-Line track fixtures, and the ATK04-BK is the 4' nominal section in black. The extrusion is paired with a PVC bus bar support that holds 12 gauge round bus bars, giving the rail its rigidity and keeping the conductors properly spaced along the whole run. A polarity groove is located on the face of the track to indicate the location of the grounding conductor — a small detail that saves real time when you are joining sections or dropping in a power feed and need every piece oriented the same way. The black finish disappears against dark ceilings and beams, or reads as a deliberate graphic line on white drywall, which is why designers keep specifying it for track lighting in modern interiors.

Electrical and safety
This is a single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, and the copper electrical conductors are concealed inside the low-profile thermo-plastic track section, so nothing live is exposed along the rail. With LED track heads drawing only a handful of watts each, that 2400 watts per circuit ceiling leaves plenty of headroom for a long, fully loaded run of LED track lighting heads. The product is cULus listed, and LITELINE backs it with a 5 year warranty.

Technical specifications
SKU: ATK04-BK
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 4' (series available in 2', 4', 6', 8' and 12')
Track section: 5⁄8" (16mm) x 1 3⁄8" (35mm)
Extrusion: extruded aluminum with PVC bus bar support, 12 gauge round bus bars
Voltage: 120V
Capacity: 20 Amps, 2400 watts per circuit
Colour: BK — Black
Mounting: surface mounted with supplied hardware; suspended mounting with accessories
Listing: cULus listed
Warranty: 5 years

Installation and compatibility
The track is surface mounted using the supplied mounting hardware, straight to the ceiling or to a wall. For open ceilings, lofts or sloped surfaces, suspended mounting is available with accessories ordered separately — rod kits, aircraft cable sets, canopy kits and suspension kits are all part of the ATK accessory family, along with joiners, "I", "L", "T" and "X" connectors, live end and wired end power feeds, monopoint feeds, receptacles and current limiters. The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which means you are never locked into a single head. Add 8.5W LED track head ATF7509-DTW-38-BK for a tone-on-tone black installation, or mix in 8.5W LED track head ATF7509-DTW-38-WH. Need a different look for another room? See ATK04-BN, ATK04-SL or ATK04-WH.

Applications and documentation
In residential projects, a 4' run over a kitchen island, a dining table or a stairwell gallery replaces three or four fixed fixtures with one flexible line. In commercial lighting work, contractors use the ATK series for retail displays, boutiques, cafés, salons, offices, showrooms and small galleries where merchandising changes often and the lighting has to follow. Because the heads slide and rotate anywhere along the rail, a store can be re-merchandised on a Sunday without an electrician on site. Plan the run first, choose the feed that matches your supply (live end, wired end with cord, monopoint or conduit feed), and order connectors and accessories separately. The full technical PDF (ATK04-BK Spec Sheet) is available in the Documentation tab, with the dimensional drawings, the ordering guide and the complete list of compatible fixtures, feeds and current limiters.
