ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK06-BN

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK06-BN
Brand: LITELINE
SKU: ATK06-BN
Price: 101.97 CAD
Availability: InStock

SKU: ATK06-BN

Brand: LITELINE

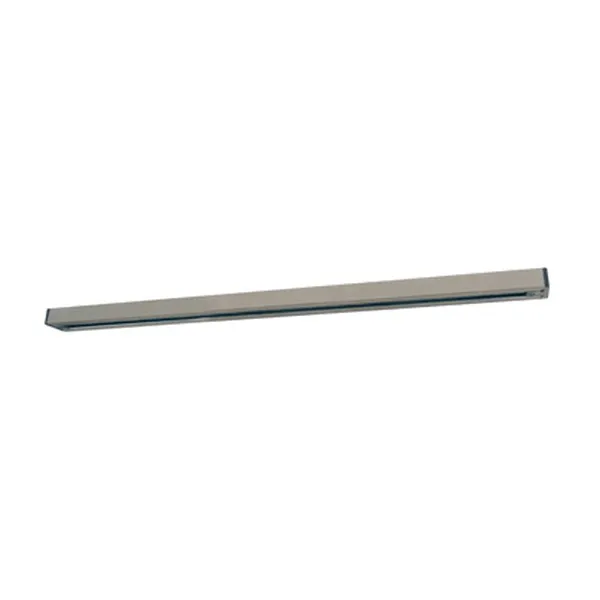

Give your room the freedom to point light exactly where it matters. The ATK Series by LITELINE is a single circuit extruded aluminum track lighting rail, and this 6' version in Brushed Nickel (SKU ATK06-BN) is the workhorse length for kitchens, retail walls and open offices. People search for it as a track light bar, a track rail, a lighting rail or simply "the part the track heads clip into" — and that is exactly what it is: the backbone that carries power along the ceiling so your LED track heads can slide, aim and re-aim whenever the layout changes. Art moved? Counter relocated? Loosen, slide, done.

Built the way a track should be built, the ATK is an extruded aluminum section with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove on the face of the track that clearly indicates where the grounding conductor sits — a small detail installers love. It is a single circuit power distribution system with single hot and neutral conductors rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper electrical conductors concealed inside the low-profile thermo-plastic track section. The Brushed Nickel finish blends with stainless appliances and modern hardware, the profile is surface mounted with the supplied mounting hardware, and suspended mounting is possible using accessories ordered separately. It is cULus listed and backed by a 5 year warranty.

This 6' length suits galley kitchens, hallways, boutique display walls, salons, cafés, galleries, home offices and basement renovations across Canada — anywhere you want several adjustable heads on one clean line. It accepts all A-Line and Juno style track fixtures, accessories and connectors, so you can mix and match with confidence. Pair it with the 8.5W LED track head ATF7509-DTW-38-BK or the 8.5W LED track head ATF7509-DTW-38-WH, add a 4' ATK04-BN track section for a longer run, and start aiming your light.

Solid extruded construction
The ATK series is an extruded aluminum track designed for use with A-Line track fixtures, offered in 2', 4', 6', 8' and 12' nominal lengths — this model is the 6' section in Brushed Nickel. Inside the extrusion, a PVC bus bar support holds 12 gauge round bus bars, keeping the conductors firmly aligned so heads seat properly and stay put. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, which removes the guesswork when you join sections or add a feed. The result is a rigid, low-profile track rail that looks tidy on a ceiling and takes daily re-aiming without complaint.

Electrical and installation details
This is a single circuit power distribution system built to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, and the copper electrical conductors are concealed in the thermo-plastic track section. The track is surface mounted using the supplied mounting hardware; for suspended installations, accessories are ordered separately — rod kits, sloped ceiling canopy kits and aircraft cable suspension kits all exist within the ATK accessory family. Power can come in through a live end feed, a canopy feed, a center feed, a conduit feed or a plug-in cord end, and runs are extended or turned with 'I', 'L', 'T', 'X' and flexible connectors. Current limiters with 1~14 amp options are also available when a project calls for them.

Technical specifications
Brand: LITELINE
Model: ATK06-BN
Type: Single circuit extruded aluminum track
Nominal length: 6'
Finish: BN — Brushed Nickel
Electrical: Single circuit, 20 Amps maximum (2400 watts per circuit) at 120V
Bus bars: 12 gauge round bus bars on PVC support
Mounting: Surface mounted with supplied hardware; suspended with accessories (ordered separately)
Listing: cULus listed
Warranty: 5 Years

Compatibility and fixtures
The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which gives you an enormous pool of heads to choose from and makes future upgrades painless. Compatible LED track fixture families include APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, DINE, FOCUS and Flight models. In this catalogue, the ATF7509-DTW-38-BK LED track head and the ATF7509-DTW-38-WH LED track head drop right onto this rail. Matching finishes of the same 6' section are available as ATK06-BK in black, ATK06-SL in silver and ATK06-WH in white.

Applications and documentation
Think kitchen islands and upper cabinets, a hallway of family photos, a clothing boutique that changes its displays every season, a café counter, a dental or physio clinic reception, a hair salon, or a home office that needs bright task light without a full ceiling redesign. Because the heads slide anywhere along the run, one 6' section of commercial LED lighting track can cover accent, task and general light at the same time — a real advantage in Canadian renovations where ceiling access is limited and you would rather not open the drywall twice. The full technical PDF (ATK06-BN spec sheet) is in the Documentation tab, with the dimensional drawings, the ordering guide and the complete list of connectors, power feeds and suspension accessories for planning your run.

Technical Files
