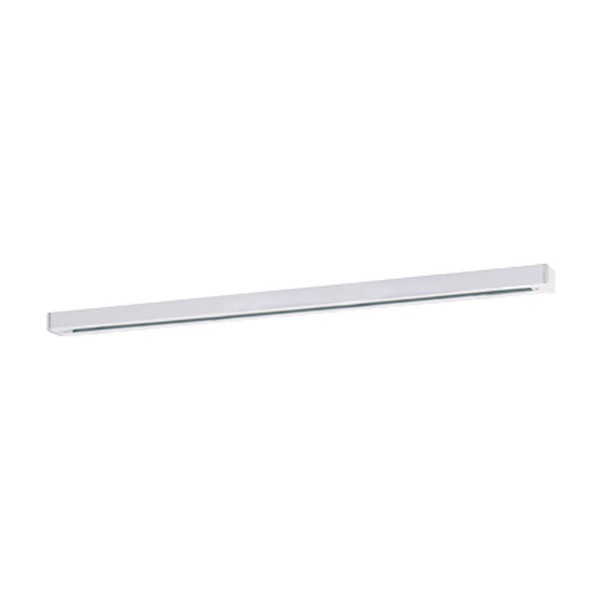

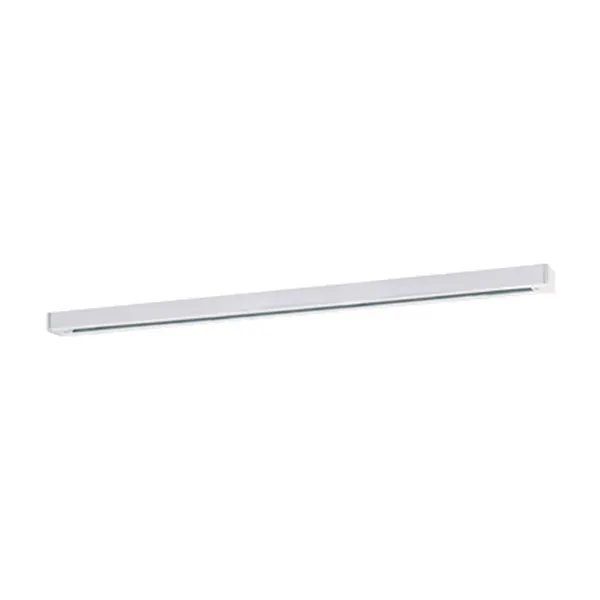

ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK02-WH

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK02-WH
Brand: LITELINE
SKU: ATK02-WH
Price: 26.97 CAD
Availability: InStock

SKU: ATK02-WH

Brand: LITELINE

Give your lighting the freedom to move exactly where you need it. The ATK02-WH is a 2-foot single circuit track lighting rail from LITELINE's ATK series, an extruded aluminum track built for A-Line track fixtures. People look for it under many names — track rail, lighting track, track light bar, or simply the channel that track lighting heads clip into — and it all points to the same thing: a clean white surface-mounted track that lets you aim light wherever the room needs it, then re-aim it a year later when the furniture, the artwork or the merchandising changes.

This is the 2' nominal length, measuring 20 1/8" (511mm) excluding end caps, with a compact profile of 5/8" (16mm) by 1 3/8" (35mm) that stays discreet against a ceiling. The extrusion is 0.06" aluminum with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove is located on the face of the track to indicate the location of the grounding conductor — a small detail that makes installation faster and safer. As a single circuit power distribution system, the single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper electrical conductors concealed inside the low-profile thermo-plastic track section. It is cULus listed and backed by a 5 year warranty, in a crisp white finish that blends into most painted ceilings.

Short 2' sections are the problem-solvers of any track project: a kitchen island, a hallway, a reading nook, a small retail display, an office reception desk, a gallery wall, or the last stretch of a longer run in a café or boutique. The track is surface mounted using the supplied mounting hardware, and suspended mounting is available with accessories ordered separately. It is compatible with all A-Line and Juno style track fixtures, accessories and connectors, so you can pair it with heads like the 8.5W LED track head ATF7509-DTW-38-WH in matching white, or the 8.5W LED track head ATF7509-DTW-38-BK for contrast. Plan your run, pick your heads, and light your space your way.

Built to last, built to disappear
The ATK series is an extruded aluminum track designed for use with A-Line track fixtures, and the ATK02-WH is the 2' nominal length in white. The extrusion is constructed of 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, so the rail keeps its shape over a long run and holds the conductors firmly in place. A polarity groove on the face of the track indicates the location of the grounding conductor, which means no guesswork when you join sections or drop in a power feed. At 5/8" (16mm) tall and 1 3/8" (35mm) wide, the profile hugs the ceiling instead of announcing itself, and the white finish lets it vanish against standard painted drywall.

Electrical and installation details
This is a single circuit power distribution system designed to supply lighting units flexibly. The single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, and the copper electrical conductors are concealed in the low-profile thermo-plastic track section. The track is surface mounted using the supplied mounting hardware — straight onto drywall, plaster or a wood ceiling — and suspended mounting is available with accessories ordered separately, such as hollow stem rods, sloped ceiling canopy kits or aircraft cable suspension kits. Power can enter the run through a live end power feed, a wired end feed with plug-in cord, a conduit feed, a center feed or a monopoint feed, and sections are joined with I, L, T or X connectors and flexible connectors. Current limiters with 1~14 amp options are also available in the accessory family when a project calls for them. All connection work should follow the Canadian Electrical Code and local requirements.

Technical specifications
SKU: ATK02-WH
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 2'
Length excluding end caps: 20 1/8" (511mm)
Profile: 5/8" (16mm) x 1 3/8" (35mm)
Extrusion: 0.06" extruded aluminum
Bus bars: 12 gauge round bus bars on PVC bus bar support
Voltage: 120V
Maximum capacity: 20 Amps (2400 watts per circuit)
Colour: WH — White
Mounting: surface mounted with supplied hardware; suspended with accessories
Labels: cULus listed
Warranty: 5 Years

Compatibility and fixture choices
The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which opens the door to a wide family of LED track heads: APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, FOCUS (ATF8010), DINE (T-LEDDNG), Flight (ATF7607 and ATF7610) and models such as ATF7250, ATF7415, ATF7425, ATF7509 and ATF7545. In the store you can pair this rail with the 8.5W LED track head ATF7509-DTW-38-WH for a monochrome white ceiling, or mix in the 8.5W LED track head ATF7509-DTW-38-BK. The same 2' track is also offered as ATK02-BK in black, ATK02-BN in brushed nickel and ATK02-SL in silver, and longer runs are easy to build with a section like the ATK04 4-foot track plus a joiner.

Where it works and what's documented
Residential renovators use short single circuit track over kitchen counters, islands, staircases and basement family rooms, where one 2' section and two or three heads replace a tired fixture without opening the ceiling. On the commercial side, it is a staple of commercial LED lighting for boutiques, cafés, salons, clinics, showrooms, offices and gallery walls — anywhere the display changes and the light has to follow. Contractors appreciate that a run can be extended, shortened or re-fed later without rewiring the room. Full details, dimensions, the ordering guide and the complete accessory list are in the ATK02-WH spec sheet available in the Documentation tab of this page.
