ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-BN

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-BN
Brand: LITELINE
SKU: ATK04-BN
Price: 60.97 CAD
Availability: InStock

SKU: ATK04-BN

Brand: LITELINE

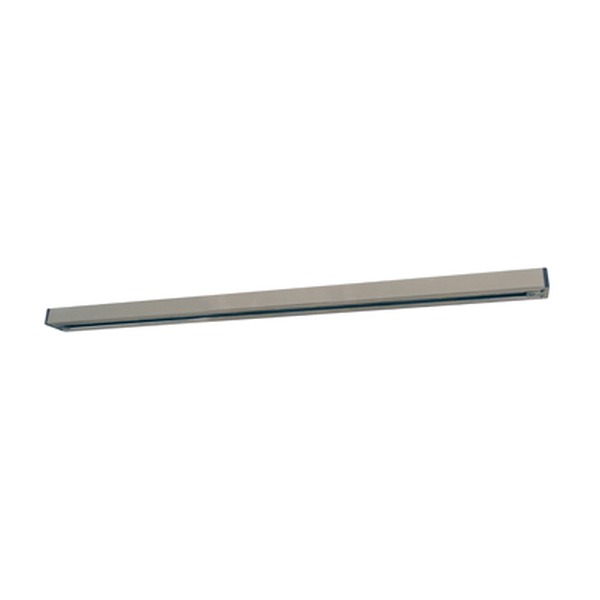

Give your room the flexibility it deserves with the ATK Series single circuit track from LITELINE, model ATK04-BN in a warm Brushed Nickel finish. This is the rail — the backbone of any track lighting system — the piece people search for as a lighting track, track bar, rail lighting or simply "track lighting heads" support. Slide your fixtures anywhere along its length, aim them where the light really matters, and change the whole mood of a space without touching the ceiling again.

The ATK series is an extruded aluminum track built for A-Line track fixtures, offered in 2', 4', 6', 8' and 12' nominal lengths; this SKU is the 4' section. The extrusion is made of 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove on the face of the track shows you exactly where the grounding conductor sits. It is a single circuit power distribution system with single hot and neutral conductors rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper electrical conductors concealed in a low-profile thermo-plastic track section. It is cULus listed and backed by a 5 year warranty. Surface mounting is done with the supplied mounting hardware, and suspended mounting is available with accessories ordered separately.

This commercial and residential track feels right at home over a kitchen island, along a hallway of artwork, in a home office, a boutique, a café, a gallery or a small showroom — anywhere a Canadian renovation needs aimable light without a ceiling full of holes. The track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, so pair it with heads such as the 8.5W LED track head ATF7509-DTW-38-BK or the 8.5W LED track head ATF7509-DTW-38-WH. Prefer another finish? The same 4' section also comes in black (ATK04-BK), silver (ATK04-SL) and white (ATK04-WH). Plan your run, add your connectors and power feed, and start aiming.

Built from solid extruded aluminum
The ATK track is not a flimsy channel. It is constructed of 0.06" extruded aluminum with a PVC bus bar support that holds 12 gauge round bus bars, which keeps the conductors firmly aligned every time you twist a head into place. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, so orientation stays consistent from section to section on a long run. The Brushed Nickel finish (the BN in ATK04-BN) is a soft, satin-toned metal look that blends with stainless appliances, brushed hardware and modern trims, while the low-profile section keeps the rail visually light on the ceiling.

Electrical and installation details
This is a single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, and the copper electrical conductors are concealed inside the thermo-plastic track section. The track is surface mounted using the supplied mounting hardware; suspended mounting is available with accessories ordered separately, such as hollow stem rods, suspension rod kits, aircraft cable sets with canopy or a sloped ceiling canopy kit. You will also need to choose a power feed and connectors for your layout: single circuit 'I', 'L', 'T' and 'X' connectors, live end and wired end power feeds, a center feed, a monopoint feed and flexible connectors are all part of the ATK accessory family, along with single circuit current limiters offering 1~14 amp options. As always, confirm final connection with your local electrical code and have the feed wired by a qualified electrician.

Technical specifications
Model: ATK04-BN
Brand: LITELINE
Type: Single circuit extruded aluminum track
Nominal length: 4'
Finish: BN — Brushed Nickel
Extrusion: 0.06" extruded aluminum
Bus bars: 12 gauge round bus bars with PVC bus bar support
Voltage: 120V
Maximum capacity: 20 Amps (2400 watts per circuit)
Mounting: Surface mounted with supplied hardware; suspended mounting with accessories ordered separately
Certification: cULus listed
Warranty: 5 Years

Compatibility with heads and systems
The ATK track system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which makes it an easy match for existing installations and for future upgrades. Compatible LED track fixture families include APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, DINE (T-LEDDNG), FOCUS (ATF8010), Flight (ATF7607 and ATF7610) and the ATF7250, ATF7415, ATF7425, ATF7509 and ATF7545 series. Two ready pairings in our catalogue are the LED track head ATF7509-DTW-38-BK and the LED track head ATF7509-DTW-38-WH. Matching sections in other colours are available: ATK04-BK, ATK04-SL and ATK04-WH.

Real projects and documentation
In a home, one 4' section over a kitchen island carries three or four heads for prep light and a bit of sparkle; in a hallway or stairwell it becomes a gallery wall washer; in a basement or loft it replaces scattered fixtures with one clean line. In commercial lighting work — retail shops, cafés, salons, clinics, offices and small showrooms — contractors like being able to re-aim or add heads when the merchandising changes, with no new ceiling work. Longer runs are easy: join sections with connectors, and for a 12-foot run an 8-foot section plus a 4-foot section with a joiner is the recommended approach. The full technical PDF (ATK04-BN Spec Sheet) sits in the Documentation tab with dimensional drawings, the ordering guide and the complete list of connectors, power feeds, suspension accessories and current limiters — everything you need to draw your layout before you order.

Technical Files
