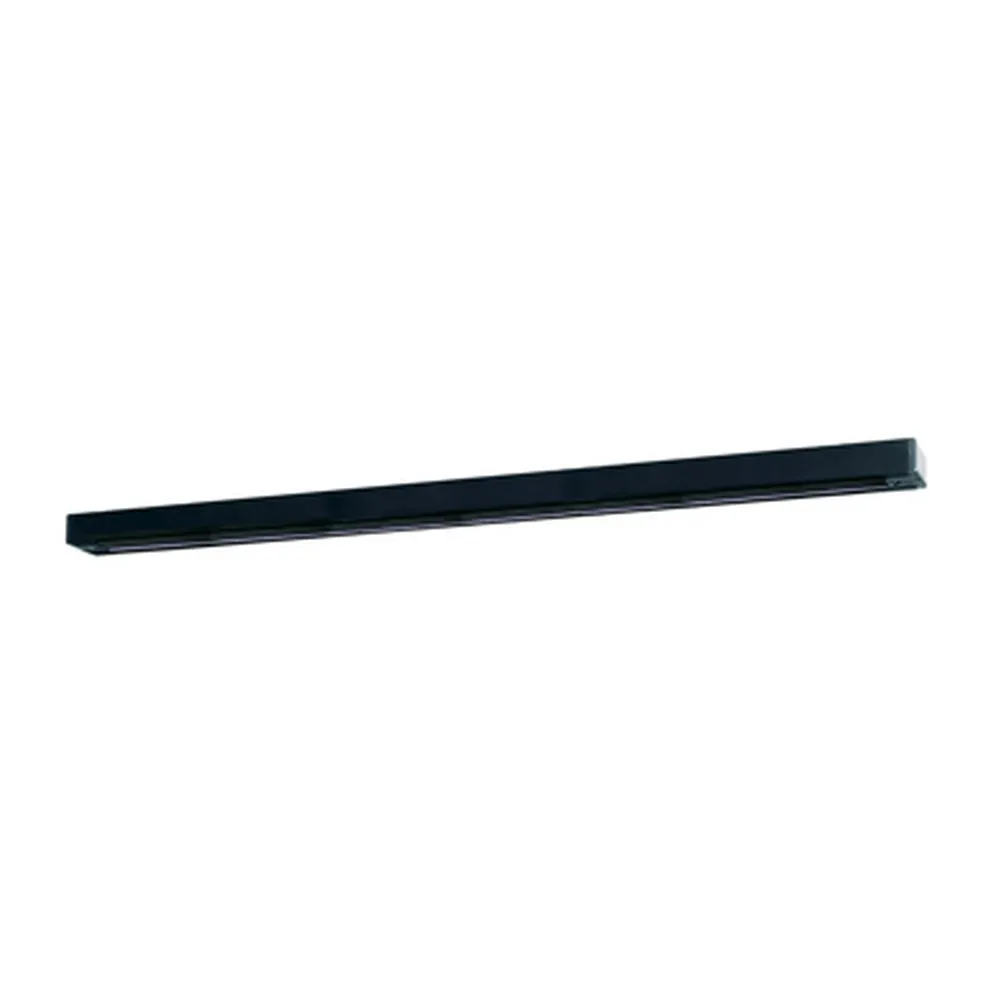

Built to last, built to disappearThe ATK series track is an extruded aluminum channel designed specifically for use with A-Line track fixtures, and it is offered in 2', 4', 6', 8' and 12' nominal lengths. This SKU is the 6-foot black version. The body is constructed of 0.06" extruded aluminum with a 0.045" PVC bus bar support that holds 12 gauge round bus bars, a combination that keeps the section rigid over its full span while staying visually slim on the ceiling. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, so every head you snap in goes in oriented correctly the first time. The black finish reads as a deliberate design line against white drywall, and it quietly blends into dark ceilings in restaurants, lounges and retail spaces.
Electrical and safetyThe ATK06-BK is a
single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps, meaning 2400 watts per circuit at 120V — with modern LED track heads drawing only a handful of watts each, that capacity lets you run a long, dense row of fixtures on one circuit. The copper electrical conductors are concealed inside the thermoplastic, low-profile track section, keeping live parts protected and the profile clean. The product is
cULus listed and carries a
5 year warranty.
Technical specificationsModel: ATK06-BK
Brand: LITELINE
Type: Single circuit extruded aluminum track
Nominal length: 6'
Actual length: 68 1/8" (1730 mm), excluding end caps
Profile: 5/8" (16 mm) x 1 3/8" (35 mm)
Extrusion: 0.06" extruded aluminum
Bus bar support: 0.045" PVC, 12 gauge round bus bars
Voltage: 120V
Maximum capacity: 20 Amps / 2400 watts per circuit
Colour: BK — Black
Mounting: Surface mounted with supplied hardware; suspended mounting with accessories
Labels: cULus listed
Warranty: 5 years
Installation and compatibilityInstallation is straightforward: the track is surface mounted using the supplied mounting hardware, fastened to the ceiling or to a suitable structure, then energized through a power feed. Suspended mounting is available with accessories ordered separately, including hollow stem rods, sloped ceiling canopy kits and aircraft cable suspension kits — useful in lofts, open-concept basements and commercial ceilings that are too high for surface mounting. Runs are joined and powered with single circuit connectors and feeds such as the 'I' connector, 'L'/'I', 'T' and 'X' power feed connectors, flexible connector, live end and wired end feeds, center feed and monopoint feed, plus current limiters with 1~14 amp options when a project calls for restricted circuit loading. Note that the 12-foot option is not available in the US; an 8-foot section combined with a 4-foot section and a joiner achieves the same 12-foot run. Fixture-wise, the track system is compatible with all
A-Line® and Juno® style track fixtures, accessories and connectors — including LED heads from the APOLLO, SORA, ATLAS, DELTA, FLEX, FOCUS, DINE, TEARDROP and Flight families.
Where it earns its keep, and what's in the documentationThink of a Montréal condo where one run over the kitchen counter replaces three separate fixtures, a Toronto retail wall where heads are re-aimed every time the display changes, a photography studio, a church, a dental clinic reception, or an office corridor that needs accent light without cutting ceiling holes. Track is also the fastest fix in older Canadian homes with a single ceiling box and no budget for new wiring. Want to extend or match an existing installation? The same 6-foot section is available as
ATK06-BN in brushed nickel and
ATK06-SL in silver, and compatible
LED track heads like the
ATF7509-DTW-38-BK drop right in. The full ATK06-BK spec sheet, with technical drawings, the ordering guide and the complete accessory list, is available in the Documentation tab.
