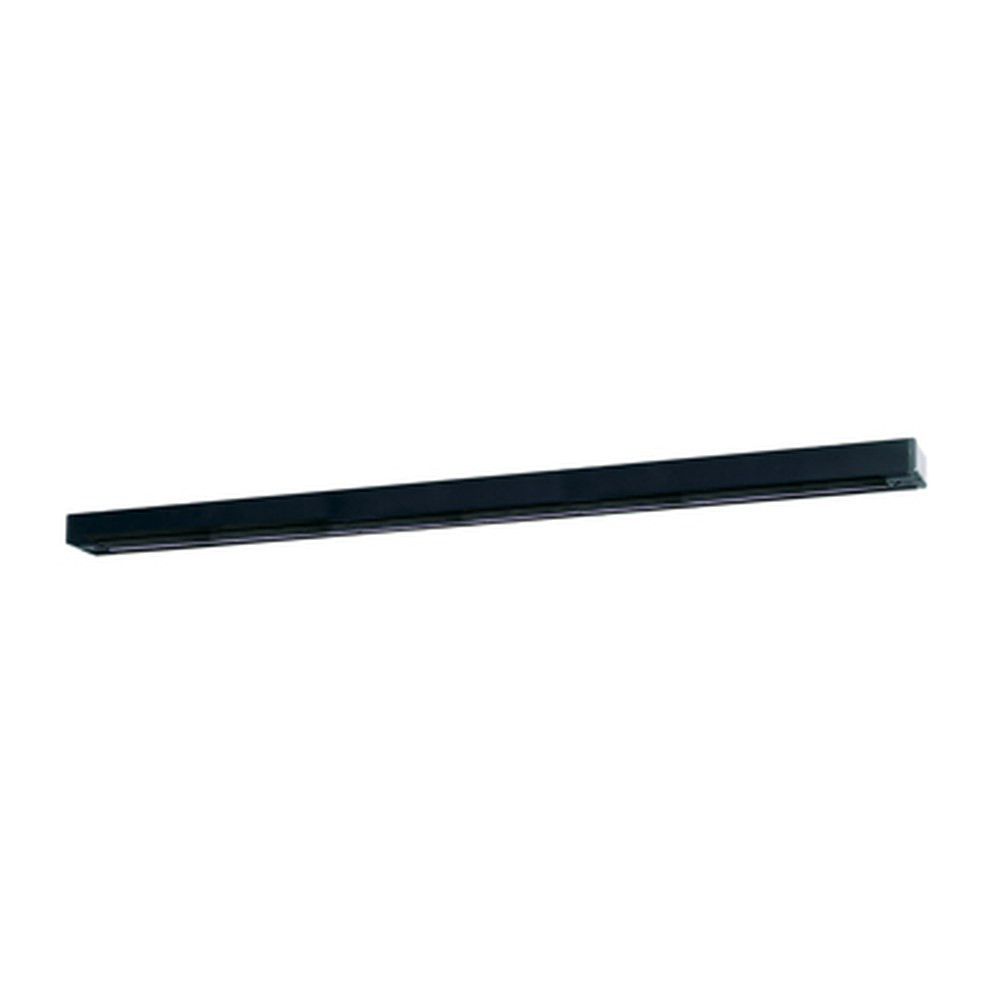

ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-SL

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-SL
Brand: LITELINE
SKU: ATK04-SL
Price: 60.97 CAD
Availability: InStock

SKU: ATK04-SL

Brand: LITELINE

Give your room the freedom to aim light exactly where it matters. The ATK04-SL is a 4' single circuit extruded aluminum track lighting rail in a Silver finish, part of the LITELINE ATK series designed for use with A-Line track fixtures. People look for it under many names — track rail, track bar, lighting rail, single circuit track section, or simply the track you snap track lighting heads onto — and it all means the same thing: the backbone of a flexible lighting layout you can add to, re-aim and reconfigure whenever the space changes.

This is a single circuit power distribution system built to feed your fixtures flexibly. The extrusion is made of 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, and a polarity groove on the face of the track clearly indicates the location of the grounding conductor — a small detail that saves real time on install day. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, with copper electrical conductors concealed in a thermo-plastic, low-profile track section that stays discreet against the ceiling. The profile measures 5⁄8" (16 mm) by 1 3⁄8" (35 mm), and the ATK04 length is listed at 1121 mm excluding end caps. It is cULus listed and backed by a 5 year warranty.

Retail floors, boutiques, galleries, cafés, offices, showrooms, open-concept kitchens, basements and home art walls: anywhere a Canadian renovation or fit-out needs light that can move, this 4 foot track section delivers. It mounts on the surface using the supplied mounting hardware, and suspended mounting is available with accessories ordered separately. The system is compatible with all A-Line and Juno style track fixtures, accessories and connectors — pair it with heads such as the 8.5W LED track head ATF7509-DTW-38-BK or the 8.5W LED track head ATF7509-DTW-38-WH. Prefer another finish? The same section comes in ATK04-BK and ATK04-WH. Plan your run and order your track today.

Built from a solid extrusion
The ATK series is an extruded aluminum track made for A-Line track fixtures, offered in 2', 4', 6', 8' and 12' nominal lengths — this SKU is the 4' section in Silver. The body is constructed of 0.06" extruded aluminum with a PVC bus bar support that holds 12 gauge round bus bars, so the current-carrying parts stay firmly aligned along the whole run. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, which makes it easy to keep multiple sections oriented the same way when you build a long run or turn a corner with connectors.

Electrical capacity and safety
This is a single circuit power distribution system designed to supply lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V, which leaves plenty of headroom for a full row of LED heads. Copper electrical conductors are concealed inside the thermo-plastic, low-profile track section, keeping live parts protected and the silhouette slim on the ceiling. The track is cULus listed and covered by a 5 year warranty.

Technical specifications
SKU: ATK04-SL
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 4'
Length (excluding end caps): 1121 mm
Profile: 5⁄8" (16 mm) x 1 3⁄8" (35 mm)
Extrusion: 0.06" extruded aluminum
Bus bars: 12 gauge round bus bars on PVC bus bar support
Voltage: 120V
Maximum capacity: 20 Amps (2400 watts per circuit)
Colour: SL — Silver
Mounting: surface mounted with supplied hardware; suspended mounting with accessories
Labels: cULus listed
Warranty: 5 Years

Installation and accessories
The track is surface mounted using the supplied mounting hardware, so a straight run over a kitchen island or a retail wall goes up quickly once your feed location is set. Suspended mounting is available with accessories ordered separately, including hollow stem and suspension rod kits, sloped ceiling canopy kits and aircraft cable suspension kits. Power feeds and connectors are also ordered separately: live end power feeds, wired end and plug-in cord feeds, monopoint feeds, centre feeds, conduit feeds, 'I', 'L', 'T' and 'X' connectors and a flexible connector let you shape L-runs, T-runs and continuous rows. Current limiters with 1~14 amp options are available when a circuit needs to be restricted. Note that a 12-foot run can be built from an 8-foot section plus a 4-foot section joined together.

Compatibility, applications and documentation
The system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, which opens the door to a wide family of LED heads and pendant adapters — pendant adapters for chain or cord, a track receptacle that accepts 3-prong plugs, and a track hook rated for 7 lb maximum weight. Compatible LED track fixtures include the APOLLO LED, SORA LED, ATLAS, DELTA, FLEX, FOCUS, TEARDROP, DINE and Flight families, along with heads such as the ATF7509-DTW-38-WH track head. In practice, this means one rail can light a boutique's merchandise wall, a café's art display, a dental office reception or a home gallery hallway — and be re-aimed later without touching the ceiling. If Silver isn't your finish, the same section is offered as ATK04-BN in brushed nickel or ATK04-BK in black. The full technical PDF spec sheet is available in the Documentation tab for drawings, the ordering guide and the complete accessory list.
