ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-WH

Name: ATK SERIES FOR RESIDENTIAL AND COMMERCIAL APPLICATIONS - ATK04-WH
Brand: LITELINE
SKU: ATK04-WH
Price: 50.97 CAD
Availability: InStock

SKU: ATK04-WH

Brand: LITELINE

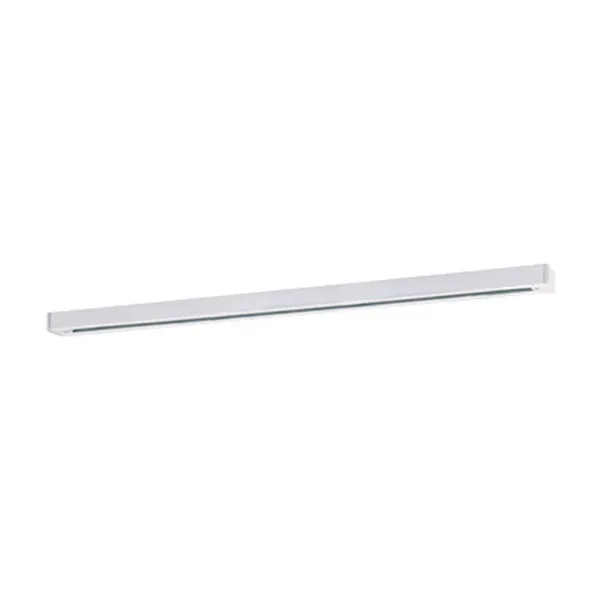

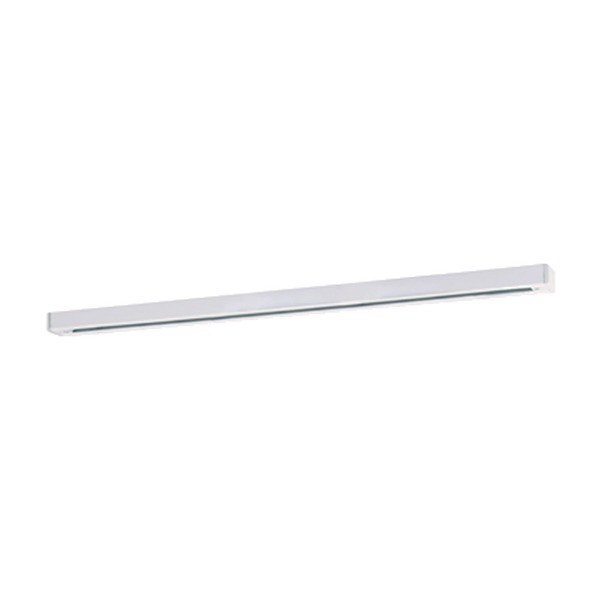

Give your room a lighting system that moves with you: the ATK04-WH is a 4-foot single circuit extruded aluminum track in a clean white finish, part of the LITELINE ATK series. If you have been searching for track lighting, a track rail for track lighting heads, a "rail d'éclairage" or a commercial LED lighting backbone you can aim exactly where you want it, this is the piece everything else clips into. Mount it over a kitchen island, along a hallway, above a retail display or a gallery wall, and slide your heads left or right whenever the furniture, the artwork or the merchandise changes. It is the classic, endlessly adaptable solution for homeowners renovating, contractors finishing a space, and small businesses that need light on the product, not on the floor.

The ATK series track is constructed of 0.06" extruded aluminum with a PVC bus bar support holding 12 gauge round bus bars, so the copper electrical conductors stay concealed in a low-profile thermo-plastic track section. A polarity groove on the face of the track shows you exactly where the grounding conductor sits, which makes head orientation foolproof on site. This is a single circuit power distribution system rated for a maximum capacity of 20 Amps (2400 watts per circuit) at 120V — plenty of headroom for a full run of efficient LED track heads. The profile measures 5⁄8" (16mm) by 1 3⁄8" (35mm), the ATK04 has a nominal length of 4 feet, and it is cULus listed and backed by a 5 year warranty. The white finish (WH) blends into painted drywall ceilings; black, brushed nickel and silver are also offered in the series.

This white 4-foot track is at home in condo kitchens, open-concept living rooms, home offices, basement renovations, boutiques, cafés, salons, showrooms and office spaces across Canada. It is surface mounted with the supplied mounting hardware, and suspended mounting is available with accessories ordered separately. It works with all A-Line and Juno style track fixtures, accessories and connectors — including heads like the 8.5W LED track head ATF7509-DTW-38-WH and the 8.5W LED track head ATF7509-DTW-38-BK. Prefer another finish? See the ATK04-BK or the ATK04-BN. Plan your run, add your heads, and take control of your light.

Built to last, built to disappear
The ATK series is an extruded aluminum track rail designed for use with A-Line track fixtures, offered in 2', 4', 6', 8' and 12' nominal lengths — the ATK04-WH being the 4-foot version in white. The extrusion is 0.06" aluminum, with a PVC bus bar support holding 12 gauge round bus bars, a combination that keeps the channel rigid over its full span while staying visually slim on the ceiling. The copper electrical conductors are concealed inside the thermo-plastic, low-profile track section, so nothing is exposed once the heads are in place. A polarity groove runs along the face of the track to indicate the location of the grounding conductor, a small detail that saves real time when you are installing several sections and want every head to face the same way.

Electrical and safety
This is a single circuit power distribution system built to feed lighting units flexibly. Single hot and neutral conductors are rated for a maximum capacity of 20 Amps, which is 2400 watts per circuit at 120V. With today's LED track heads drawing only a handful of watts each, that capacity lets you populate a full run without worrying about the load, and it leaves room to add heads later as the space evolves. The track is cULus listed and carries a 5 year warranty, which matters for commercial permits, landlord approvals and insurance files as much as it does for peace of mind at home.

Technical specifications
SKU: ATK04-WH
Brand: LITELINE
Series: ATK, single circuit extruded aluminum track
Nominal length: 4'
Profile: 5⁄8" (16mm) x 1 3⁄8" (35mm)
Extrusion: 0.06" extruded aluminum
Bus bars: 12 gauge round bus bars on PVC bus bar support
Electrical: single circuit, 20 Amps max (2400 watts per circuit) at 120V
Finish: WH (White); also offered in BK, BN, SL
Mounting: surface mounted with supplied hardware; suspended mounting with accessories
Labels: cULus listed
Warranty: 5 years

Installation and compatibility
The track is surface mounted using the supplied mounting hardware, straight onto drywall or a ceiling box location, and suspended mounting is available with accessories ordered separately — pendant adapters, hook, suspension rods, aircraft cable kits and sloped ceiling canopy kits are all part of the ATK accessory family and must be ordered separately. Power can be introduced in several ways with single circuit feeds and connectors: live end feed, wired end feed with plug-in cord, canopy cover feed, centre feed, monopoint feed, conduit feed, plus 'I', 'L', 'T' and 'X' connectors and a flexible connector to turn corners or join sections. Single circuit current limiters with 1~14 amp options are also available for the series. Most importantly, the system is compatible with all A-Line and Juno style track fixtures, accessories and connectors, so you are not locked into one head shape forever.

Where it earns its keep
Think of a boutique that changes its window display every month, a café that rearranges tables, a home gallery wall that keeps growing, a kitchen island that needs three tight beams, or an office reception that wants a crisp, aimable wash on a logo wall. Pair the ATK04-WH with compatible LED heads such as the 8.5W LED track head ATF7509-DTW-38-WH for a matching white run, or mix finishes with the 8.5W LED track head ATF7509-DTW-38-BK. Compatible LED track fixture families for this system include APOLLO LED, SORA LED, TEARDROP, ATLAS, DELTA, FLEX, FOCUS, DINE and Flight. Matching lengths and finishes are available, including ATK04-SL in silver. The complete technical PDF (ATK04-WH Spec Sheet) with technical drawings, the ordering guide and the full accessory list is in the Documentation tab.
