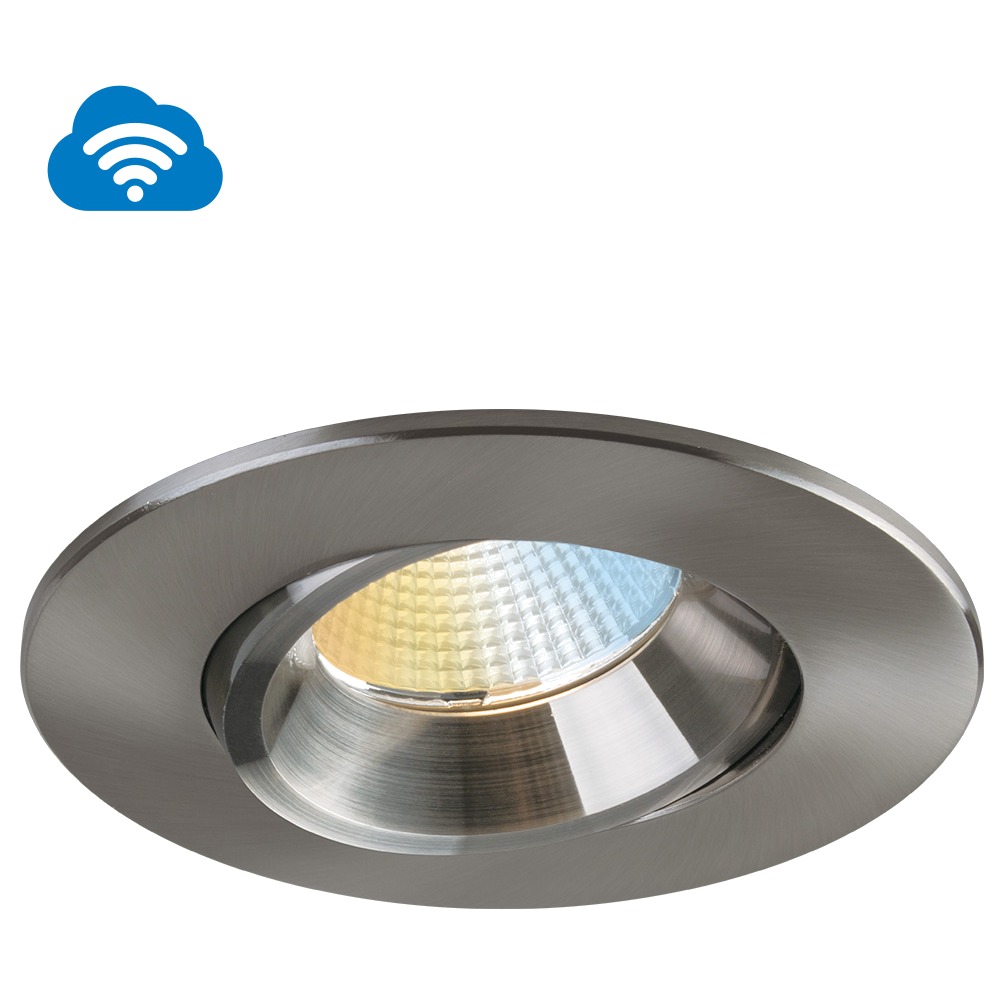

LUNA 4" ONCLOUD - TUNABLE WHITE - RA4-12RG-WZ-90BN

Name: LUNA 4" ONCLOUD - TUNABLE WHITE - RA4-12RG-WZ-90BN
Brand: LITELINE
SKU: RA4-12RG-WZ-90BN
Price: 66.97 CAD
Availability: InStock

SKU: RA4-12RG-WZ-90BN

Brand: LITELINE

Say goodbye to flipping switches and swapping bulbs: the LUNA 4" OnCloud Tunable White from LITELINE is a 4-inch LED recessed downlight — what most people call a pot light — with a regressed gimbal you can aim, plus Wi-Fi control right from your phone. Search it as a 4" gimbal pot light, adjustable recessed light, smart downlight or Wi-Fi LED downlight: it's all the same fixture, model RA4-12RG-WZ-90BN in a brushed nickel trim finish. The regressed optic pulls the light source deeper into the housing so you see the glow, not the glare, and the adjustable gimbal lets you tilt the beam onto a feature wall, artwork, a kitchen island or a staircase.

Under the hood, a 12W LED module (300mA) delivers up to 850 lumens — up to 71 lumens per watt — with a typical CRI of 90 so skin tones, wood grain and paint colours look true. The Tunable White engine shifts from 2700 K to 5000 K, warm and cozy at night, crisp and energizing for work, and the Wi-Fi driver dims smoothly from 100% down to 2% through the WiZ App or the OnCloud Room Controller. Input is 100-135V AC, 60Hz, power factor 0.9, Class II, with a 38° beam spread from a durable airtight aluminum body and an anodized blue heat sink for maximum airflow. It's cETLus certified and Energy Star, rated for wet locations, approved for direct contact with insulation, good for indoor and outdoor use, with a minimum starting temperature of -40°C (-40°F), a projected life of 70% @ 50,000 hrs and a 3-Year warranty.

That makes it a natural for Canadian homes and businesses alike: kitchens, hallways, basements, bathrooms and covered porches or soffits where cold and moisture are part of life, plus offices, boutiques, clinics and restaurants that want one fixture doing several jobs. Hole cut is Ø 4¼" (108mm), two spring-loaded clips grip any ceiling material, and three Quick Connect push-in terminals make wiring fast — the 18" wire with 3-Pin DC connector links driver and fixture. Voice control works with Google Assistant, Siri, Alexa and IFTTT. Prefer a fixed colour temperature? Look at the 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90BN. Ready to light your project your way? Add it to your cart.

Built to disappear into the ceiling
The LUNA 4" OnCloud is made around a durable airtight aluminum body with an adjustable regressed gimbal, so the 4 inch recessed LED sits flush and quiet in the ceiling plane while the aperture stays visually calm. An anodized blue heat sink provides maximum airflow for the LED light source, which is what keeps output and colour stable year after year. The brushed nickel trim of RA4-12RG-WZ-90BN suits stainless appliances and modern hardware; the same fixture family is also offered in black and white. Because the housing is airtight and approved for direct contact with insulation, it works in sealed attics and insulated ceilings without extra boxes.

Light quality and Tunable White
This general application fixture uses a 12 watt LED module that maintains uniform intensity producing up to 850 lumens, with a typical CRI of 90 for rich, honest colour. The Tunable White range runs from 2700 K to 5000 K — think candle-warm evenings, neutral daytime light and a cooler, alert tone for tasks — all from the same fixture, no trim swap, no bulb change. The lens delivers a 38° beam spread, tight enough to graze a wall or highlight a counter, wide enough to layer for general recessed downlighting. Dimming runs from 100% to 2%, controlled through the WiZ App or the OnCloud Room Controller.

Electrical, smart control and installation
An extruded aluminum hardwire box holds the 12 watt (300mA) Wi-Fi dimmable LED driver with 100-135V AC input, and an 18" wire with 3-Pin DC connector joins driver and fixture. Three Quick Connect push-in terminals speed up wiring on site, and two spring loaded clips attach the fixture to any ceiling material through a Ø 4¼" (108mm) hole cut. The WiZ App (iOS and Android) lets you control the light from anywhere, and voice control is available by integrating the app with most smart speakers — it works with Google Assistant, Siri, Alexa and IFTTT. Minimum starting temperature is -40°C (-40°F), so Canadian soffits and porches are fair game.

Technical specifications
SKU: RA4-12RG-WZ-90BN
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings / Indoor / Outdoor
Wattage: 12W
Lumens: Up to 850
Lumens per watt: Up to 71
CCT: Tunable White (2700 K - 5000 K)
CRI: 90
Beam angle: 38°
Input: 100-135V AC, 60Hz
Power factor: 0.9
Class II: Yes
Dimming tech: Wi-Fi Dimming (via WiZ App)
Hole cut: Ø 4¼" (108mm)
Certification: cETLus
Energy Star: Yes
Projected life: 70% @ 50,000 hrs
Warranty: 3-Year

Applications, accessories and documentation
Use it as the backbone of a whole-home plan: aimable pot lights over a kitchen island, a washed accent wall in the living room, bathroom ceilings, a covered entry or soffit, and Wi-Fi scenes that shift the house from morning to movie night. In commercial spaces, boutiques, cafés, dental clinics and small offices get colour-accurate 90 CRI light plus centralized app control. Accessories are sold separately and include the P-4020 pre-mounting plate, the P-4020NC new construction plate, the P-NCMK-1 new construction mounting kit, VBE-1, VBE-2 and VBE-5 vapour barrier extenders, the RA4-XLRING-BN reducer ring in brushed nickel and the LC-CRTL-SCENE-1 OnCloud Room Controller. Want colour-changing as well? Compare with the LUNA 4" OnCloud RGBTW RA4-12RG-RGBTW-90BK, or stay non-smart with the 4" LUNA LED round regressed gimbal recessed fixture RA4-12RG-90WH and the flush-gimbal 4" LUNA LED round gimbal recessed fixture RA4-12G-90WH. The full technical PDF spec sheet is in the Documentation tab.

Technical Files
