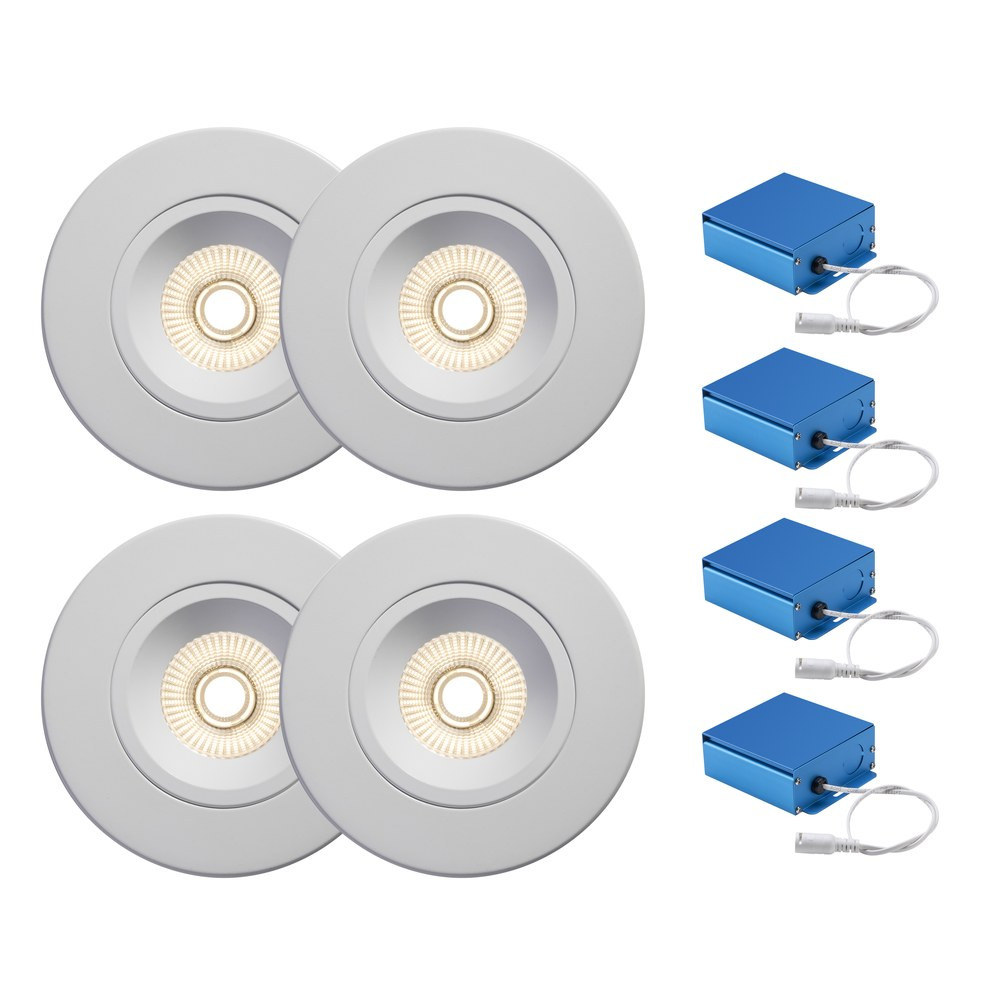

4" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA4-12RG-90WH

Name: 4" LUNA LED ROUND REGRESSED GIMBAL RECESSED FIXTURE - RA4-12RG-90WH
Brand: LITELINE
SKU: RA4-12RG-90WH
Price: 81.97 CAD
Availability: InStock

SKU: RA4-12RG-90WH

Brand: LITELINE

Tilt the light exactly where you want it, without the glare. The 4" LUNA LED round regressed gimbal recessed fixture (SKU RA4-12RG-90WH) by LITELINE is a 4-inch recessed light — what most people call a pot light or LED downlight — with an adjustable gimbal set deep inside the trim. That regressed design pushes the diode back from the ceiling plane, so you see a clean circle of white light instead of a bright hot spot in your eyes. Aim it at art, a fireplace wall, a kitchen island or a display rack, or leave it straight down for general ceiling lighting. It's one of those round LED lights that quietly does the heavy lifting in a whole-home renovation or a retail build-out.

The LUNA gimbal is tuned for warm, flattering light. Lab testing on this model reports a colour temperature of 2700K (measured at 2687K), a flux of 899.4 lm and an efficacy of 100.17 lm/W, drawing 8.978 W at 0.2701 A with a power factor of 1.000. Colour rendering is the real headline: Ra = 92.8 with R9 at 55.97 and TM-30 values of Rf 92 / Rg 98, plus tight 1.8 SDCM colour consistency, which means skin tones, wood grain, paint colours and merchandise look the way they should — and every fixture in the row looks like the next one. The trim is finished in white (the WH in the model code) to blend into a standard painted ceiling, and the adjustable gimbal lets you re-aim the beam after installation if the furniture moves.

This is a natural fit for living rooms, hallways, bedrooms, kitchens, basements and stairwells, and just as much at home in boutiques, salons, cafés, clinics and small offices where commercial recessed LED lighting has to look intentional. In a Canadian renovation, a run of 4-inch pot lights on a dimmer is still the fastest way to modernize a dated ceiling. Need the same fixture in a different finish? See the Luna 4" round regressed gimbal in black or the Luna 4" round regressed gimbal in brushed nickel. Order your LUNA gimbals today and give your ceiling light you can actually point.

A regressed gimbal built for comfort
The whole point of the LUNA regressed gimbal recessed fixture is visual comfort. On a flat-trim downlight, the light source sits close to the ceiling and you see it from across the room. Here the LED is set back inside the aperture and mounted on a gimbal ring, so the bright source is shielded by the trim while the beam still tilts. The result is a ceiling that reads as a series of soft dark circles when you're not standing under it, and a crisp pool of light when you are. That's why designers reach for regressed 4-inch pot lights in open-concept spaces where you sit and look up at the ceiling all evening.

Light quality you can measure
The spectrum test report for this model documents a warm 2700K output — chromaticity coordinates x = 0,4623, y = 0,4132, measured CCT 2687K with a Duv of 0,0008, right on the ANSI 2700K target. Colour rendering comes in at Ra = 92.8 with an average R value of 90.9, R1 through R15 ranging from 55.97 (R9, deep red) to 99.57 (R14), and TM-30 fidelity Rf 92 with gamut Rg 98. Colour consistency is rated at 1.8 SDCM, which matters enormously when you install ten or twenty fixtures in the same ceiling and don't want one of them looking pink. Peak wavelength is 623.0 nm with a FWHM of 139.6 nm and a dominant wavelength of 584.0 nm.

Technical specifications
SKU: RA4-12RG-90WH
Brand: LITELINE
Family: LUNA 4" round regressed gimbal recessed fixture
Aperture: 4"
Colour temperature: 2700K (measured 2687K, Duv 0,0008)
Luminous flux: 899.4 lm
Efficacy: 100.17 lm/W
Power: 8.978 W
Current: 0.2701 A
Voltage (LED module, test): 33.241 V
Power factor: 1.000
CRI: Ra 92.8 (AvgR 90.9, R9 55.97)
TM-30: Rf 92 / Rg 98
Colour consistency: 1.8 SDCM
Finish: white

Installation and aiming
Plan your layout before you cut: a row of gimbals along a wall will wash art and millwork, while a centred grid gives you even general lighting. Because the head tilts, you can correct the aim after the drywall is up — handy when a kitchen island ends up a little off-centre from the framing. Keep the spacing consistent from one fixture to the next so the scallops on the wall line up, and set all the gimbals to the same angle with a level or a laser for a clean, professional look. As with any recessed work, confirm ceiling depth, insulation contact requirements and dimmer compatibility with your electrician before you order quantities, and follow the manufacturer's instructions supplied with the fixture.

Where it works and what pairs with it
Use these gimbals over a kitchen counter, along a hallway of family photos, above a bathroom vanity zone, in a finished basement or across a boutique's merchandising wall — anywhere surface and recessed downlighting needs to be aimable. For projects that call for colour-changing or white-tuning control on the same 4" platform, look at the Luna 4" OnCloud tunable white or the Luna 4" OnCloud RGBTW, and mix finishes with the black version of this fixture. The technical spec sheet for RA4-12RG-90WH is available in the Documentation tab for your electrician, inspector or lighting plan.
