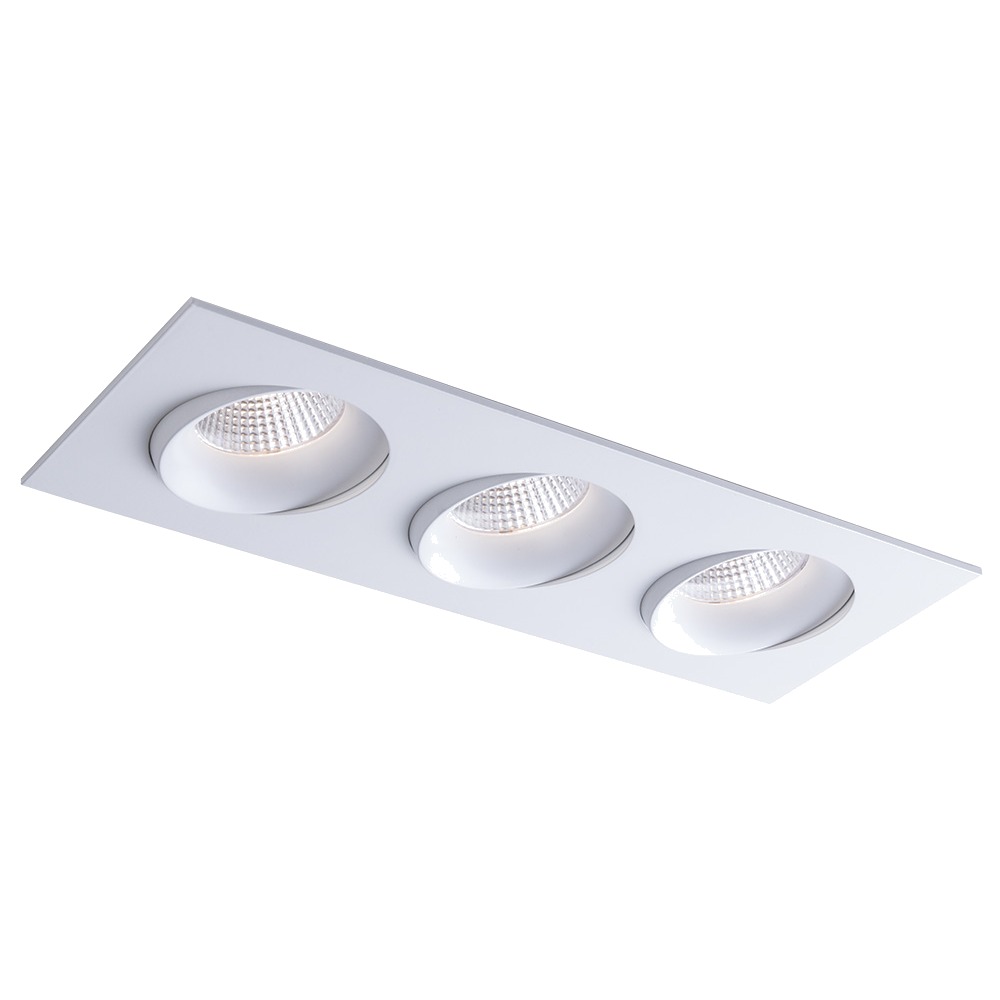

3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-3L-9G-90WH

Name: 3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-3L-9G-90WH
Brand: LITELINE
SKU: RA35M-3L-9G-90WH
Price: 267.97 CAD
Availability: InStock

SKU: RA35M-3L-9G-90WH

Brand: LITELINE

Three points of light, one clean linear cut in the ceiling — the 3.5" LUNA LED Linear Gimbal Color Selectable Recessed Fixture (SKU RA35M-3L-9G-90WH) is the fixture you reach for when a row of separate pot lights would look busy. People search for it as a linear LED recessed light, a 3-light gimbal downlight, an adjustable multiple pot light bar or a directional recessed spot, and it answers all of those: three individually aimable gimbal heads inside one white housing, ready to wash a wall, graze a stone fireplace, light a kitchen island or pick out artwork. Because each head tilts, you point the light exactly where you want it instead of settling for whatever the ceiling joists allowed. It suits both residential and commercial projects, from a condo renovation to a boutique or reception desk.

Under the hood, the LED module draws 27W and delivers up to 2515 lumens — up to 101 lumens per watt — with an excellent typical CRI of 94 so wood tones, paint colours and merchandise look true. An on-fixture colour selectable switch gives you five colour temperatures: 2700 K (2235 lumens), 3000 K (2316 lumens), 3500 K (2499 lumens), 4000 K (2514 lumens) and 5000 K (2457 lumens). The lens produces a 38° beam spread, and the fixture dims smoothly from 100% to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. It runs on 100-135V AC, 50/60 Hz, with a power factor greater than 0.90, and it is cETLus certified, Energy Star qualified, Class II, airtight, rated for wet locations, approved for direct contact with insulation, and built for operation from -20°C to 40°C. Projected life is 70% at 50,000 hours, backed by a lifetime warranty, in a durable airtight aluminum body with an anodized blue heat sink and a white trim finish.

This linear gimbal is at home over kitchen islands and bathroom vanities, in hallways, entryways, stairwells, home theatres, offices, showrooms, salons and restaurant seating areas — and its wet location rating and insulated-ceiling approval make it a smart pick for Canadian covered porches, soffits and bathrooms. Need the same look in a shorter run or another finish? See the 2-light LUNA linear gimbal in white, the 3-light LUNA linear gimbal in black or the 3-light LUNA linear gimbal in brushed nickel. Add it to your project and light the room exactly the way you pictured it.

Built to last, built to aim
The LUNA linear gimbal starts with a durable airtight aluminum body and an adjustable gimbal for each of the three heads, so you can tilt the beams toward a feature wall, a backsplash or a display shelf after the drywall is up. An anodized blue heat sink sits behind the LED light source to keep airflow — and therefore light output and colour stability — where it should be over the long haul. The white trim finish of this RA35M-3L-9G-90WH blends into standard ceilings, and the streamlined linear shape replaces a cluster of separate recessed downlights with one tidy architectural line.

Light quality and colour selection
A 27 watt LED module maintains uniform intensity and produces up to 2515 lumens with a typical CRI of 94 — high enough for kitchens, bathrooms, retail displays and anywhere skin tones and finishes matter. The on-fixture colour selectable switch lets you choose between five colour temperatures without ordering different SKUs: 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, with lumen output of 2235, 2316, 2499, 2514 and 2457 respectively. The lens delivers a controlled 38° beam spread, tight enough to accent, wide enough to light a work surface. Dimming runs from 100% to 10% on forward-phase / reverse-phase and TRIAC/ELV dimmers.

Electrical and installation details
The fixture ships with an extruded aluminum hardwire box housing three 210 mA dimmable Class II electronic LED drivers with 100-135V AC input, plus an 18" FT6 rated cable with a DC 2.1 connector between driver and fixture — approved for use in plenums and suspended ceilings. Quick connect push-in terminals make wiring fast, and four spring loaded clips let the fixture mount to virtually any ceiling material, which is what makes it such a friendly retrofit. It is airtight, suitable for wet locations, approved for direct contact with insulation, and rated for ambient temperatures of -20°C to 40°C.

Technical specifications
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Beam angle: 38°
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
CRI: 94
Dimming: Yes, 100%-10%
Dimming technology: Forward/reverse-phase TRIAC/ELV
Energy Star: Yes
Input: 100-135V AC, 50/60 Hz
Lumens: Up to 2515
Lumens per watt: Up to 101
Power factor: >0.90
Projected life: 70% @ 50,000 hrs
Wattage: 27W
Finish: White
Warranty: Lifetime

Applications, accessories and documentation
Use it as a row of adjustable pot lights over an island, a discreet accent line above a fireplace or gallery wall, task lighting in a home office, or a clean lighting line in a clinic, boutique or café — and take advantage of the wet location rating in bathrooms, covered porches and soffits across Canadian climates. For new construction, Liteline lists a premounting plate for the LUNA 3-light linear gimbal (P-3520-3L), a new construction mounting kit with hanger bars, brackets and screws (P-NCMK-1) and a vapour barrier extender (VBE-1); accessories are sold separately. Looking at other configurations of the same family? Compare the 2-light LUNA linear gimbal in black, the 2-light LUNA linear gimbal in brushed nickel or the LUNA 3-light linear gimbal RA35M-3L-9G-DTW90WH. The full technical spec sheet is in the Documentation tab for cut-out dimensions, drawings and dimmer guidance before you order.
