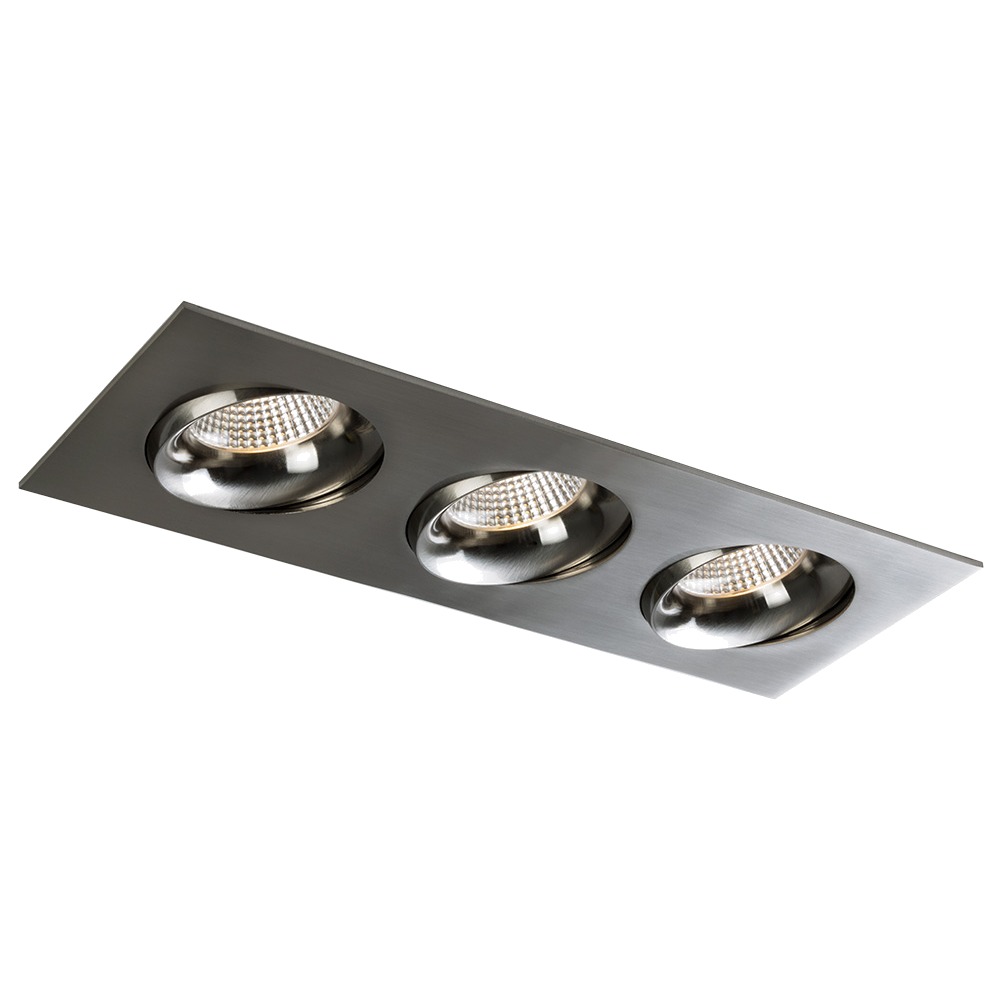

3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-3L-9G-90BN

Name: 3.5" LUNA LED LINEAR GIMBAL COLOR SELECTABLE RECESSED FIXTURE - RA35M-3L-9G-90BN
Brand: LITELINE
SKU: RA35M-3L-9G-90BN
Price: 285.97 CAD
Availability: InStock

SKU: RA35M-3L-9G-90BN

Brand: LITELINE

Three adjustable beams, one clean cut in the ceiling — the 3.5" LUNA LED Linear Gimbal Color Selectable Recessed Fixture (SKU RA35M-3L-9G-90BN) brings gallery-style aiming to a slim linear housing in a warm brushed nickel finish. People look for it as a linear LED recessed light, a 3-light gimbal pot light, a multi-head downlight or simply linear LED lighting for kitchens and offices, and that is exactly what it is: one compact recessed unit with three independently tilting heads you can point at an island, a feature wall, artwork or a display shelf. Instead of drilling three separate holes and fighting to line them up, you install one fixture and get a perfectly straight row of light, every time.

Under the hood, a 27W LED module delivers up to 2515 lumens at up to 101 lumens per watt, with a typical CRI of 94 so wood grain, paint, skin tones and merchandise look true. An on-fixture color selectable switch moves the light between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K, so one SKU covers a cozy living room and a crisp workspace. The 38° beam angle keeps the light focused, and dimming runs from 100% down to 10% with standard forward-phase / reverse-phase and TRIAC/ELV dimmers. The durable airtight aluminum body with anodized blue heat sink runs on 100-135V AC, 50/60Hz, is cETLus certified and Energy Star qualified, Class II, rated for wet locations and approved for direct contact with insulation, with a projected life of 70% at 50,000 hours and a lifetime warranty.

This recessed gimbal fixture earns its place over kitchen islands and counters, in hallways, entryways, home offices, bathrooms and covered porches, and in boutiques, clinics, cafés and small commercial spaces where three aimable beams replace a whole row of fixtures. Airtight construction and IC approval make it a smart pick for insulated Canadian ceilings, and the 18" FT6 cable with DC 2.1 connector plus quick connect push-in terminals keep wiring fast in plenums and suspended ceilings. Prefer another look? The same 3-light body comes in 3.5" LUNA linear gimbal RA35M-3L-9G-90BK and 3.5" LUNA linear gimbal RA35M-3L-9G-90WH, or step down to the 2-light 3.5" LUNA linear gimbal RA35M-2L-9G-90BN. Check the spec sheet and plan your layout today.

Built to last, built to aim
The LUNA 3-light linear gimbal is built around a durable airtight aluminum body with adjustable gimbals, finished here in brushed nickel (BN). An anodized blue heat sink sits behind the LED light source to maximize airflow and keep junction temperatures in check, which is what protects both lumen output and colour consistency over the years. Each of the three heads tilts independently, so a single linear recessed fixture can wash a backsplash, graze a stone wall and light a work surface at once. Four spring loaded clips hold the housing to virtually any ceiling material, and the fixture is approved for wet locations, airtight, and approved for direct contact with insulation.

Light quality and colour selection
The 27W LED module produces up to 2515 lumens with a typical CRI of 94 — a level of colour rendering usually reserved for retail and hospitality lighting. The on-fixture color selectable switch offers five colour temperatures: 2700 K (2235 lumens), 3000 K (2316 lumens), 3500 K (2499 lumens), 4000 K (2514 lumens) and 5000 K (2457 lumens), so you can set the mood on site rather than guessing at the order stage. The lens delivers a 38° beam spread, tight enough for accent and task work yet broad enough for general recessed downlighting.

Electrical, dimming and installation
An extruded aluminum hardwire box houses three 210mA dimmable Class II electronic LED drivers with 100-135V AC input. An 18" FT6 rated cable with DC 2.1 connector links driver and fixture and is approved for use in plenums and suspended ceilings, while quick connect push-in terminals make wiring fast on site. Dimming runs 100%-10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for the list of compatible dimmers). Power factor is greater than 0.90 and the fixture operates from -20°C to 40°C (-4°F to 104°F).

Technical specifications
SKU: RA35M-3L-9G-90BN
Brand: LITELINE
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 27W
Lumens: Up to 2515
Lumens per watt: Up to 101
CRI: 94
CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Beam angle: 38°
Input: 100-135V AC, 50/60Hz
Dimming: Yes, 100%-10%, forward/reverse-phase TRIAC/ELV
Power factor: >0.90
Certification: cETLus, Energy Star, Class II
Finish: Brushed Nickel
Projected life: 70% @ 50,000 hrs
Warranty: Lifetime

Applications, compatible products and documentation
Think kitchen islands and peninsulas, long hallways, stairwells, condo entryways, bathrooms and covered exterior ceilings thanks to the wet location rating — plus retail displays, café counters, reception desks and clinic corridors where aimed light does the selling. For new construction, the accessories listed on the spec sheet include the P-3520-3L premounting plate for the LUNA 3-light linear gimbal, the P-NCMK-1 new construction mounting kit with hanger bars, brackets and screws, and the VBE-1 vapour barrier extender — a must in Canadian insulated ceilings. Smart control options listed include the LC-CRTL-DIM-1 Wi-Fi dimmer and the LC-CRTL-3WAY-1 Wi-Fi 3-way switch; accessories are sold separately. Matching family members include 3.5" LUNA linear gimbal RA35M-2L-9G-90BN for shorter runs and 3.5" LUNA linear gimbal RA35M-3L-9G-DTW90WH. The full technical PDF (RA35M-3L-9G-90BN Spec Sheet) with dimensions, hole cut and ordering guide is in the Documentation tab.
