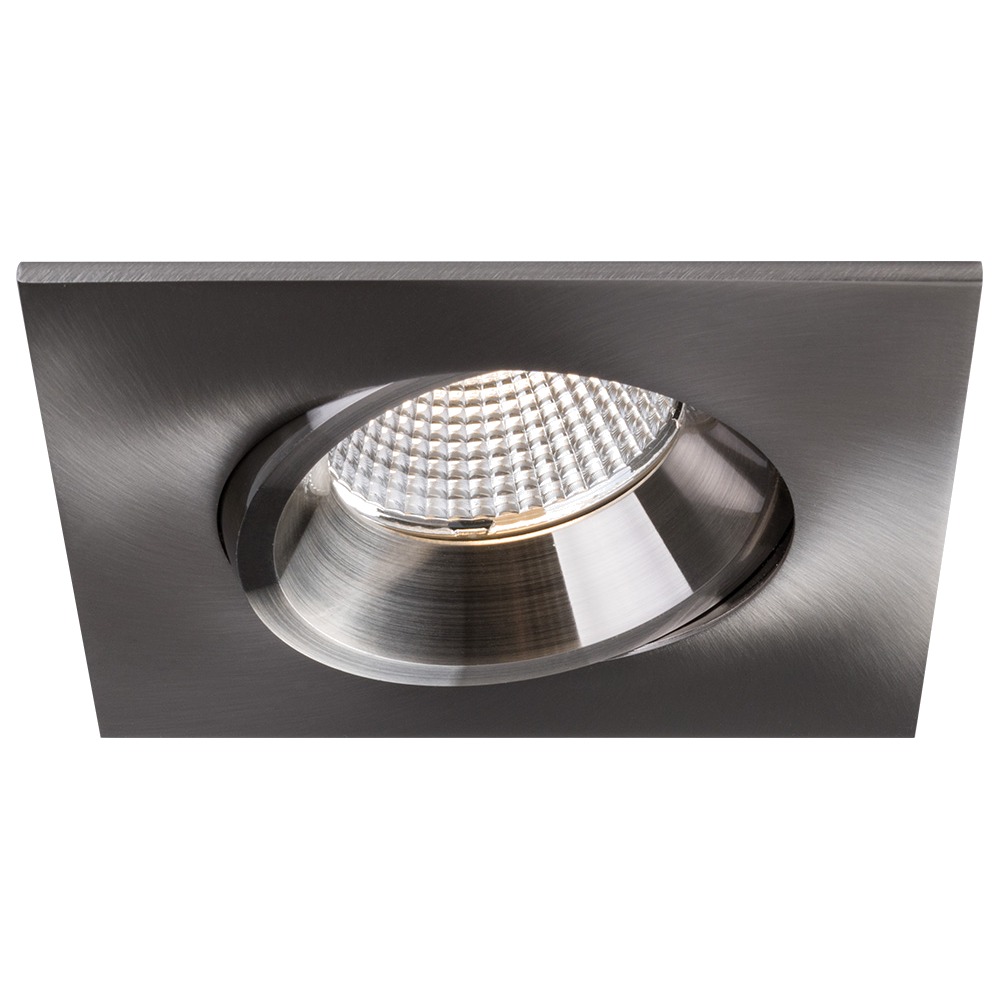

3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-90BN

Name: 3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-90BN
Brand: LITELINE
SKU: RA35S-12RG-90BN
Price: 86.97 CAD
Availability: InStock

SKU: RA35S-12RG-90BN

Brand: LITELINE

Say goodbye to glare and hello to clean, directional light: the LUNA 3.5" LED square regressed gimbal recessed fixture by LITELINE (SKU RA35S-12RG-90BN) is the little square downlight that does the heavy lifting in modern homes and storefronts. Known by plenty of names — pot light, square recessed light, adjustable gimbal downlight or simply recessed downlighting — it combines a deep-set, low-glare optic with a tilting gimbal so you can aim the beam exactly where it matters: a stone fireplace, a gallery wall, a display shelf, a kitchen island or a hallway runner. The Brushed Nickel trim (BN) adds a soft metallic finish that plays beautifully with stainless appliances and contemporary hardware, while the compact 3.5" format keeps ceilings looking tidy instead of crowded.

Under the hood, this is a serious little performer. The 12 W LED module delivers up to 1160 lumens (up to 102 lumens per watt) with a typical CRI of 95+, so wood grain, paint colours, skin tones and merchandise all look true. An on-fixture colour selectable switch lets you choose between five colour temperatures — 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — with rated output of 1040 lm at 2700 K, 1090 lm at 3000 K, 1135 lm at 3500 K, 1160 lm at 4000 K and 1145 lm at 5000 K. The 38° beam spread and 40° tilt give you real aiming control, and dimming runs from 100% down to 10% on industry-standard forward-phase / reverse-phase and TRIAC/ELV dimmers. Built on a durable airtight aluminum body with an anodized blue heat sink, it runs on 100-135V AC, 50/60Hz, is cETLus certified, ENERGY STAR qualified, Class II, suitable for wet locations, approved for direct contact with insulation, rated 70% @ 50,000 hrs and backed by a Lifetime warranty. Hole cut: Ø 3 5/8" (92 mm).

Because it's airtight, insulation-contact and wet-location rated, this fixture is right at home in Canadian builds: insulated ceilings, covered porches, bathrooms and showers, basements, condos, retail boutiques, restaurants and offices. Two spring-loaded clips grip any ceiling material and three quick-connect push-in terminals make wiring fast. Prefer the same fixture in another finish? See the 3.5" Luna LED square regressed gimbal recessed fixture RA35S-12RG-90WH or the black RA35S-12RG-90BK. Aim it, dim it, love it — add the LUNA gimbal to your project today.

Built to last, built to disappear
The LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and the RA35S-12RG-90BN shows it. The housing is a durable airtight aluminum body with an adjustable regressed gimbal, and an anodized blue heat sink provides maximum airflow for the LED light source — the kind of thermal management that keeps output and colour steady year after year. The regressed optic pulls the light source back from the ceiling plane, cutting the hot-spot glare you get from flush lenses, while the Brushed Nickel trim (BN) gives a refined metallic edge to the square recessed fixture format. Overall dimensions are 4 3/8" (111 mm) and 3 3/8" (85 mm), with a 3 1/16" (78 mm) and 4 3/16" (106 mm) profile and a 15/16" (34 mm) depth detail, for a 3 5/8" (92 mm) hole cut.

Light quality you can actually see
The LED module maintains uniform intensity and produces up to 1160 lumens with a typical CRI of 95+ — a level of colour rendering that makes whites crisp, woods warm and merchandise honest. The on-fixture colour selectable switch offers five CCTs (2700 K, 3000 K, 3500 K, 4000 K, 5000 K), so one SKU covers a warm living room, a neutral kitchen and a crisp commercial space. Lumen output by CCT: 1040 lm (2700 K), 1090 lm (3000 K), 1135 lm (3500 K), 1160 lm (4000 K) and 1145 lm (5000 K). The lens delivers a 38° beam spread and the gimbal tilts up to 40°, ideal for grazing a feature wall or picking out art.

Electrical and installation
The extruded aluminum hardwire box carries a 12 watt (300mA) dimmable class II electronic LED driver with 100-135V AC input, plus an 18" (457 mm) FT6 rated cable with DC 2.1 connector between driver and fixture, approved for use in plenums and suspended ceilings. Three quick connect push-in terminals speed up wiring, and two spring-loaded clips attach the fixture to any ceiling material. Dimming runs 100%-10% and the fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for the list of compatible dimmers). Operating temperature range: -20°C~40°C (-4°F~104°F). Power factor >0.90.

Technical specifications
SKU: RA35S-12RG-90BN
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
Tilt: 40°
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
Input: 100-135V AC, 50/60Hz
Power Factor: >0.90
Hole Cut: Ø 3 5/8" (92 mm)
Dimming: Yes, forward/reverse-phase TRIAC/ELV, 100%-10%
Certification: cETLus
ENERGY STAR: Yes
Class II: Yes
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Finish: Brushed Nickel (BN)

Where it works and what's in the box of documents
Airtight construction, direct contact with insulation and a wet location rating make this gimbal downlight a natural choice for insulated ceilings, bathrooms and showers, covered entries and porches, basements and condos — all the spots a Canadian renovation throws at you. Commercially, think boutiques and display cases, restaurants, hotel corridors, clinics and offices where a tight 38° beam and CRI 95+ make products and finishes pop. Accessories are sold separately, including vapour barrier extenders for new construction and remodel work, round pre-mounting and new construction plates for 3 1/2" LUNA LED fixtures and a new construction mounting kit with hanger bars — useful when your recessed lighting vapour barrier detail has to pass inspection. Matching the rest of the ceiling is easy: pair it with the fixed-optic 3.5" Luna LED square recessed fixture RA35S-12F-27K-90BN, or choose the dim-to-warm version, the RA35S-12RG-DTW90BN. The full technical PDF spec sheet is available in the Documentation tab for cut sheets, submittals and dimensions.

Technical Files
