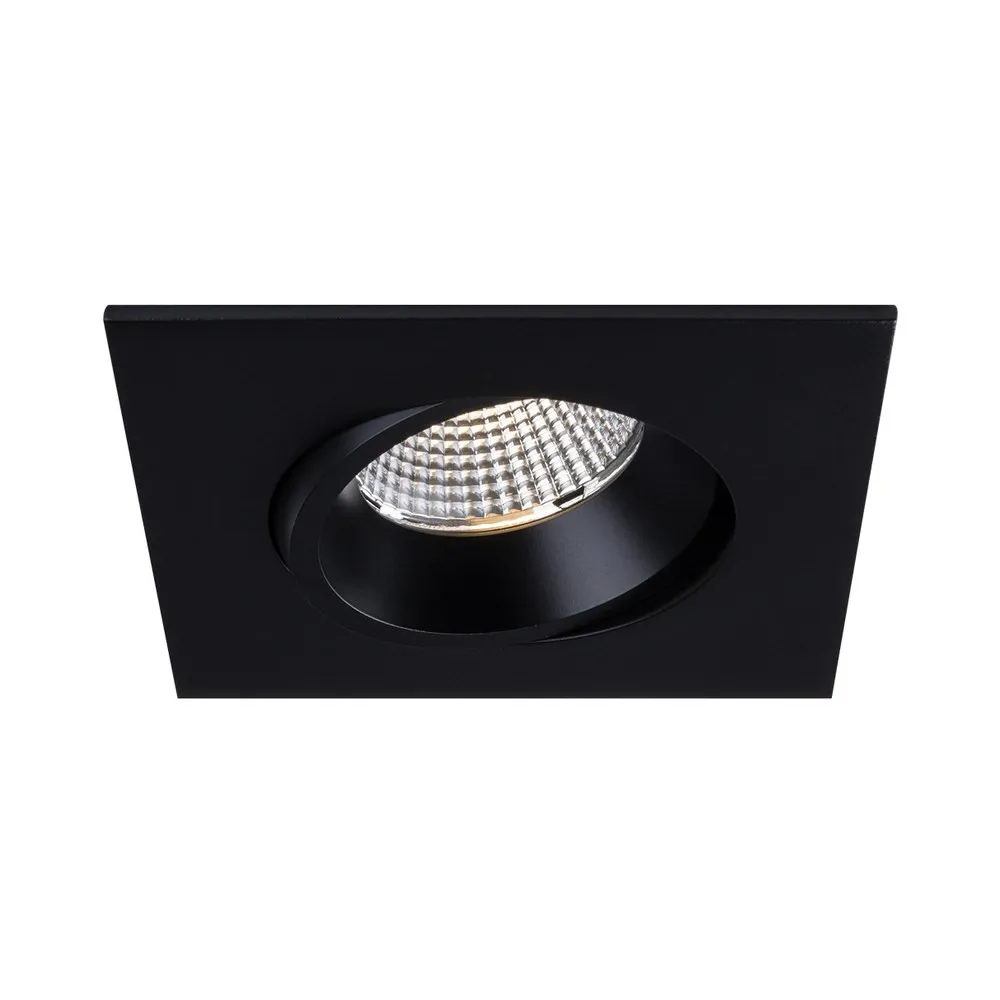

3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-90BK

Name: 3.5" LUNA LED SQUARE REGRESSED GIMBAL RECESSED FIXTURE - RA35S-12RG-90BK
Brand: LITELINE
SKU: RA35S-12RG-90BK
Price: 81.97 CAD
Availability: InStock

SKU: RA35S-12RG-90BK

Brand: LITELINE

Say goodbye to glare and hello to clean, directional light. The 3.5" LUNA LED Square Regressed Gimbal Recessed Fixture by LITELINE — SKU RA35S-12RG-90BK — is the small-aperture square downlight designers keep coming back to: a deep-set, tiltable optic in a crisp black trim that practically disappears into the ceiling. Call it a square pot light, an adjustable recessed light, a gimbal downlight or simply a recessed LED fixture, it does the same job beautifully: aiming light exactly where you want it, on an art wall, a kitchen island, a fireplace stone or a retail display, without a glaring bright spot staring back at you.

This is a 12 watt LED fixture that delivers up to 1160 lumens and up to 102 lumens per watt, with a typical CRI of 95+ so wood grain, paint colours, skin tones and merchandise all look true. An on-fixture colour selectable switch lets you pick between five colour temperatures — 2700 K (1040 lumens), 3000 K (1090), 3500 K (1135), 4000 K (1160) and 5000 K (1145) — so one SKU covers a whole house or a whole floor plate. The 38° beam spread and 40° tilt give you real aiming control, while dimming runs smoothly from 100% down to 10% on standard forward-phase / reverse-phase and TRIAC/ELV dimmers. Built with a durable airtight aluminum body and anodized blue heat sink, it runs on 100-135V AC, is cETLus certified, ENERGY STAR qualified, suitable for wet locations, approved for direct contact with insulation, and backed by a lifetime warranty with projected life of 70% at 50,000 hours.

It fits a Ø 3 5/8" (92 mm) hole, which makes it ideal for condos, basements, hallways, kitchens, bathrooms and covered porches, as well as boutiques, clinics, offices and hospitality spaces across Canada — including insulated ceilings where airtight performance matters in our winters. Two spring-loaded clips grip any ceiling material and three quick connect push-in terminals make wiring fast. Prefer the same regressed gimbal in another finish? See the 3.5" LUNA square regressed gimbal in white or in brushed nickel. Order yours and give your ceiling the quiet, high-end look it deserves.

Built to disappear into the ceiling
The LUNA Designer Series was evolved to be a flexible, low-glare and aesthetically pleasing luminaire, and this 3.5" square version shows it. The airtight aluminum body is paired with an adjustable regressed gimbal, so the LED sits deep inside the housing instead of sitting flush with the ceiling plane — that recess is what kills glare and gives you that discreet, architectural look. An anodized blue heat sink keeps airflow moving around the LED module for stable, long-term performance, and the black trim finish (BK) blends into dark ceilings or creates a deliberate graphic contrast on white drywall.

Light quality and aiming
The LED module maintains uniform intensity and produces up to 1160 lumens with a typical CRI of 95+, which is the level you want over a kitchen counter, a vanity, a gallery wall or a retail fixture. The lens delivers a 38° beam spread and the gimbal tilts up to 40°, so you can wall-wash, graze a texture or highlight a table without moving the housing. The on-fixture colour selectable switch covers five colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K and 5000 K — warm and cozy for living spaces, neutral for kitchens and offices, crisp for task and commercial areas. Dimming goes from 100% to 10% with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers.

Technical specifications
SKU: RA35S-12RG-90BK
Application: Ceiling Recess Mount
Approved location: Wet / Insulated Ceilings
Wattage: 12W
Lumens: Up to 1160
Lumens per watt: Up to 102
CCT (colour selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CRI: 95+
Beam angle: 38°
Tilt: 40°
Input: 100-135V AC, 50/60Hz
Power factor: >0.90
Dimming: 100%-10%, forward/reverse-phase TRIAC/ELV
Hole cut: Ø 3 5/8" (92 mm)
Operating temperature: -20°C~40°C (-4°F~104°F)
Projected life: 70% @ 50,000 hrs
Certification: cETLus, ENERGY STAR, Class II
Finish: Black
Warranty: Lifetime

Electrical and installation
The fixture ships with an extruded aluminum hardwire box housing a 12 watt (300mA) dimmable Class II electronic LED driver with 100-135V AC input. An 18" (457 mm) FT6 rated cable with a DC 2.1 connector links the driver to the fixture and is approved for use in plenums and suspended ceilings — handy for commercial retrofits. Three quick connect push-in terminals speed up wiring, and two spring loaded clips attach to any ceiling material. Cut a Ø 3 5/8" (92 mm) hole, feed the driver above the ceiling, snap the housing in and set the tilt. Because it is airtight and approved for direct contact with insulation, it suits attic-adjacent ceilings; for new construction or remodel work, vapour barrier extenders, pre-mounting plates and new construction plates for 3 1/2" LUNA LED fixtures are listed as accessories and sold separately.

Where to use it and documentation
Think open-plan kitchens and islands, hallways, stairwells, bedrooms, basements, bathrooms and covered entries thanks to the wet location rating; on the commercial side, boutiques, cafés, clinics, salons, offices and hotel corridors where a low-glare square aperture reads as premium. Mix finishes across a project with the white regressed gimbal version and the brushed nickel version, use the fixed 3.5" LUNA square recessed fixture in black for general ambient rows, or choose the dim-to-warm black regressed gimbal for cozy living areas. The full technical PDF spec sheet is available in the Documentation tab for dimensions, lumen values per CCT and the complete ordering guide.
